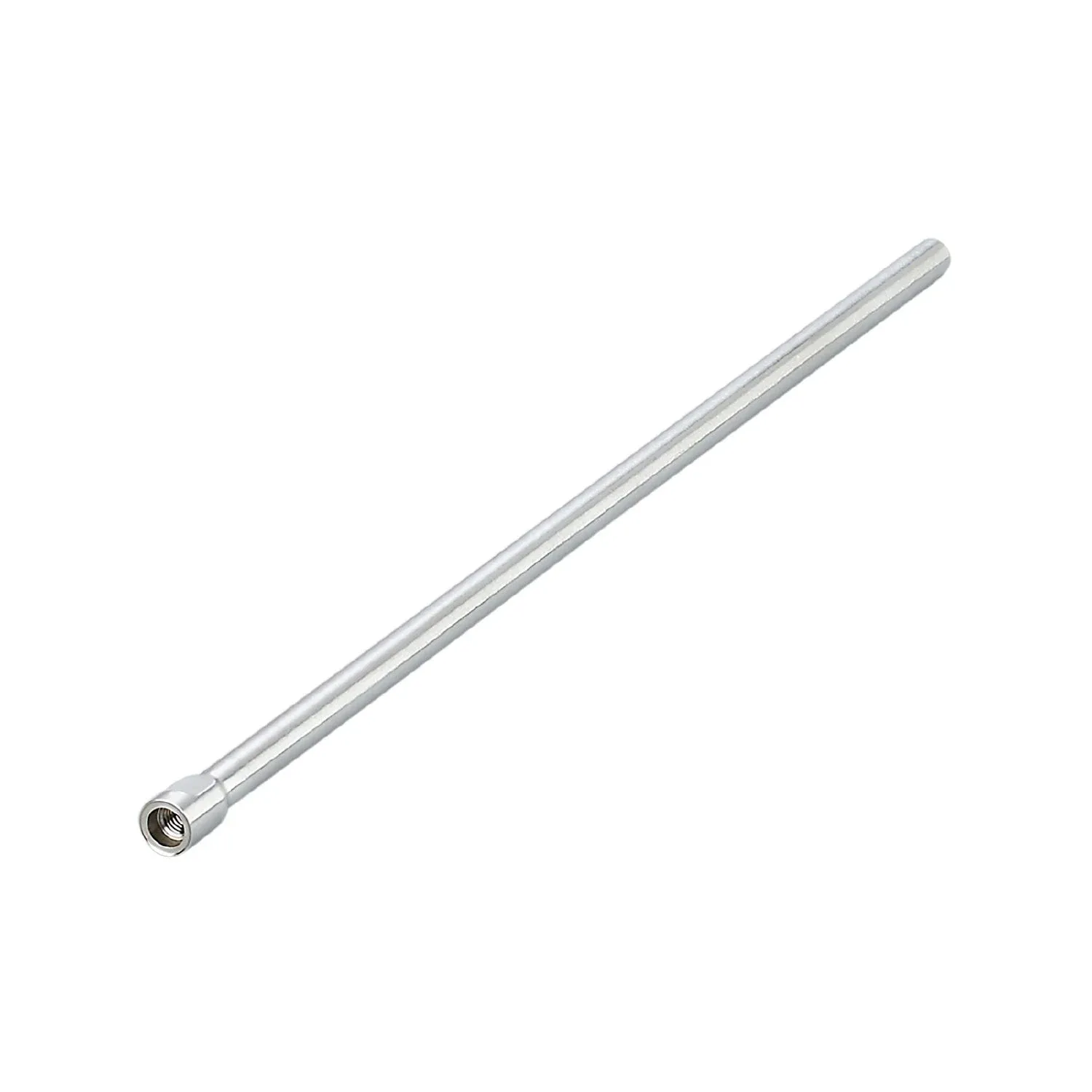

IFM E43341
E43341
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Required for the operation of level sensors with guided wave radar
For the reliable detection of aqueous media
Adaptation to different container heights through shortening of the probe
Particularly suited for use in hygienic applications
Easy, quick and secure mounting
Specification
Application
| Design | hygienic, for level sensors LR |
|---|---|
| Application | hygienic systems |
Measuring/setting range
| Probe length L[mm] [mm] | 1000 |
|---|
Mechanical data
| Weight[g] [g] | 435 |
|---|---|
| Materials | Probe: stainless steel (316L/1.4404) surface characteristics: Ra < 0,4 µm / Rz 4 µm |
| Tightening torque[Nm] [Nm] | < 6.5 |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.8 µm / Rz = 8 µm |
| Hygienic equipment class to DIN 11866 | H3 |
Remarks
| Pack quantity | 1 pcs. |
|---|
