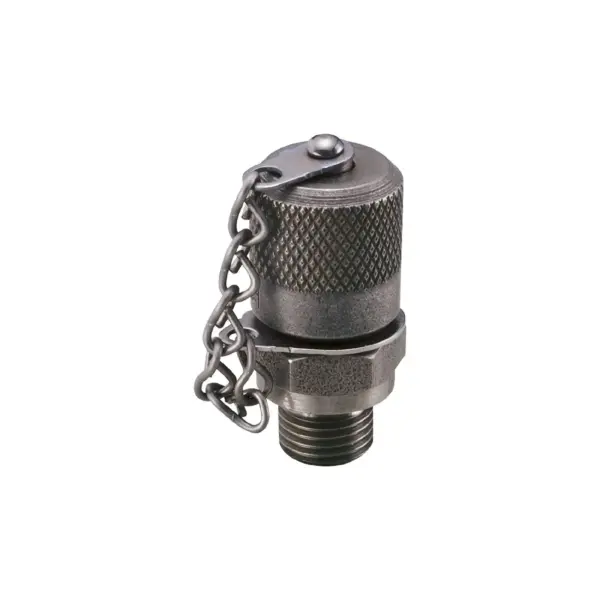

IFM E43330
E43330
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With hydraulic bezel for reducing the volume flow at high system pressure
For the installation of the oil particle monitor in pipes
Very high pressure rating
With Minimess process connection
Robust design for use in harsh industrial environments
Specification
Application
| Pressure rating | 630 bar 63 MPa |
|---|---|
| 630 bar | 63 MPa |
Operating conditions
| Ambient temperature[°C] [°C] | -10...60 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 71.85 |
|---|---|
| Materials | socket housing: steel (1.0718) grey Zn-Ni coating; Sealing: NBR |
| Sensor connection | G 1/4 |
| Process connection | M16 x 2 Minimess |
Remarks
| Pack quantity | 1 pcs. |
|---|
