Description

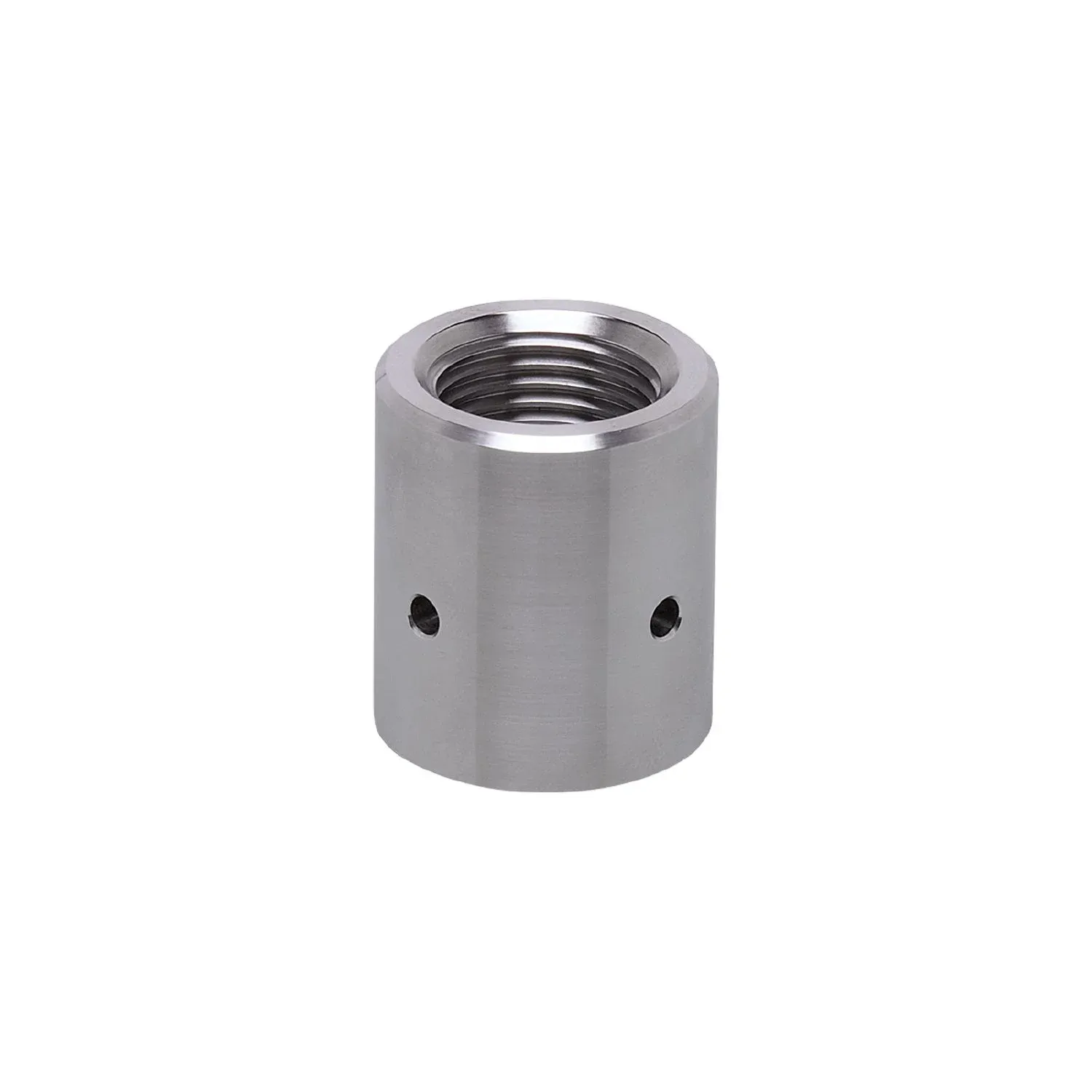

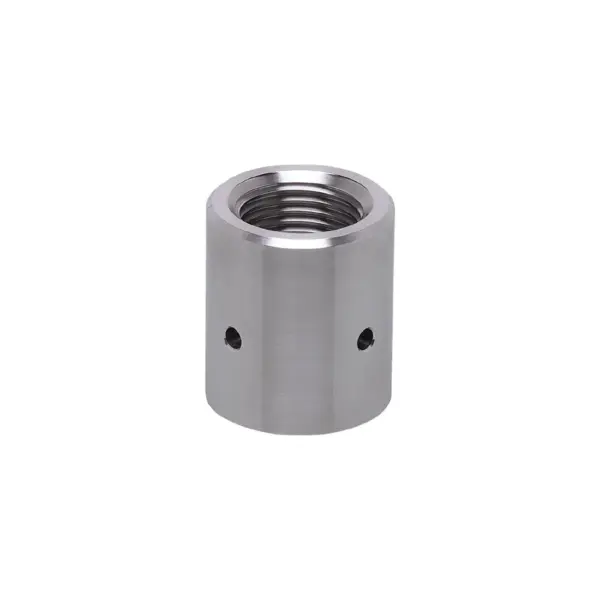

Welding adapter for process sensors
For use in industrial and hygienic applications
Robust stainless steel design for use in harsh industrial environments
High pressure rating
With integrated leakage ports
Specification
Application
| Design | for pipes, with leakage port |
|---|---|
| Pressure rating | 50 bar 5 MPa |
| 50 bar | 5 MPa |
| Note on pressure rating | for the connection sensor - adapter |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 160 |
|---|---|
| Materials (wetted parts) | stainless steel (316L/1.4435) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | welding adapter DN25 (29 x 1,5); Maße gemäß DIN 11866; Reihe A DIN |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.4 µm / Rz = 4 µm |
Accessories
| Items supplied | O-rings:, FKM |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
