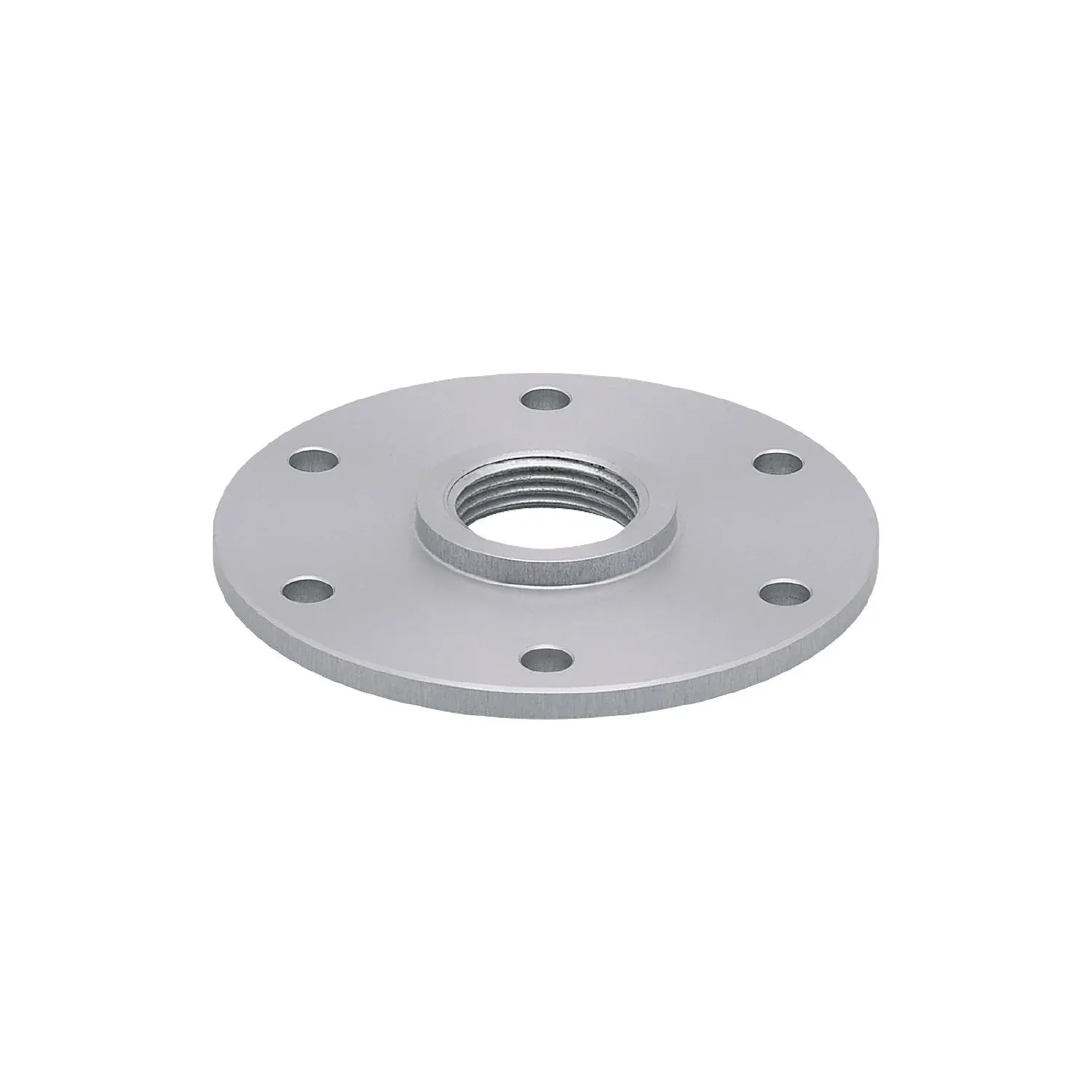

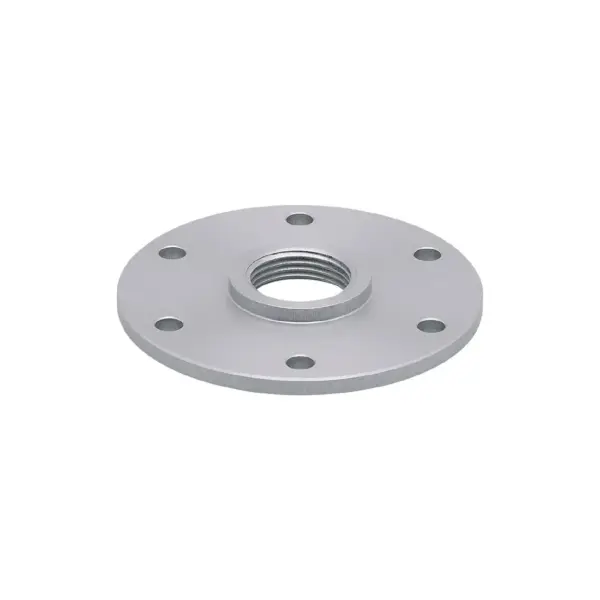

IFM E43206
E43206
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optional for the operation of level sensors with guided wave radar
Easy, quick and inexpensive mounting in the tank lid
Required for the operation on containers with plastic lid
Specification
Application
| Design | for level sensors LR |
|---|---|
| Installation | according to DIN 24557 |
| Tank pressure | -1...16 bar -0.1...1.6 MPa |
| -1...16 bar | -0.1...1.6 MPa |
Operating conditions
| Ambient temperature[°C] [°C] | 0...80 |
|---|
Mechanical data
| Weight[g] [g] | 266.8 |
|---|---|
| Type of mounting | according to DIN 24557 |
| Materials | flange: stainless steel (303/1.4305); Sealing: NBR |
| Tightening torque[Nm] [Nm] | < 40 |
| Sensor connection | threaded connection 3/4" NPT internal thread |
| Process connection | flange Ø 90 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
