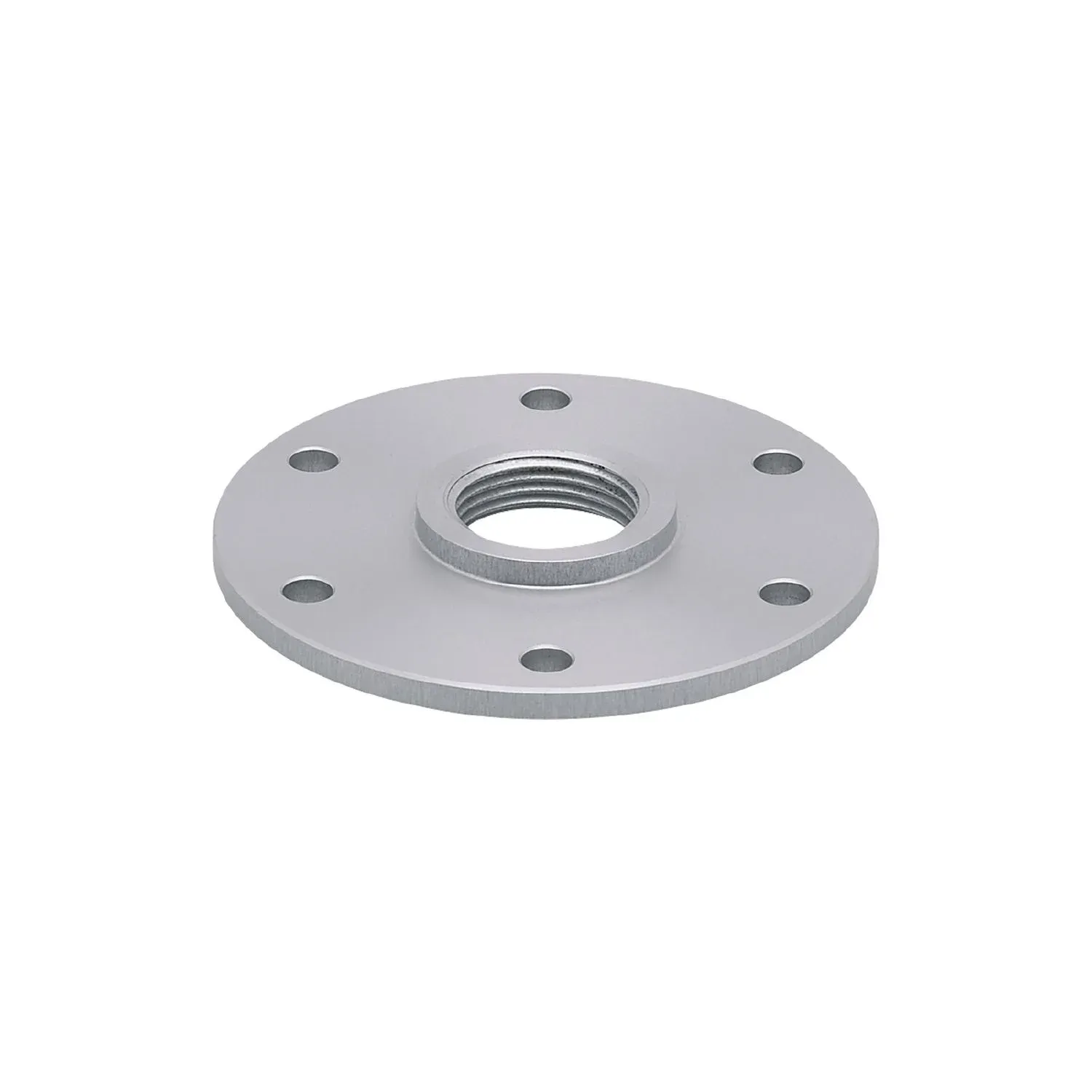

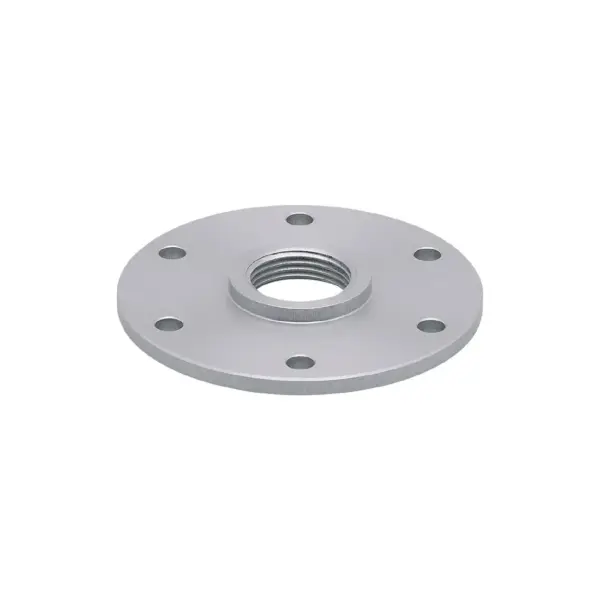

IFM E43201
E43201
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Optional for the operation of level sensors with guided wave radar
Easy, quick and inexpensive mounting in the tank lid
Specification
Application
| Design | for level sensors LR |
|---|---|
| Installation | according to DIN 24557 |
| Tank pressure | -1...16 bar -0.1...1.6 MPa |
| -1...16 bar | -0.1...1.6 MPa |
Operating conditions
| Ambient temperature[°C] [°C] | 0...80 |
|---|
Mechanical data
| Weight[g] [g] | 257.3 |
|---|---|
| Type of mounting | according to DIN 24557 |
| Materials | flange: stainless steel (303/1.4305); Sealing: NBR |
| Tightening torque[Nm] [Nm] | 6...9 |
| Sensor connection | threaded connection G 3/4 internal thread |
| Process connection | flange Ø 90 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
