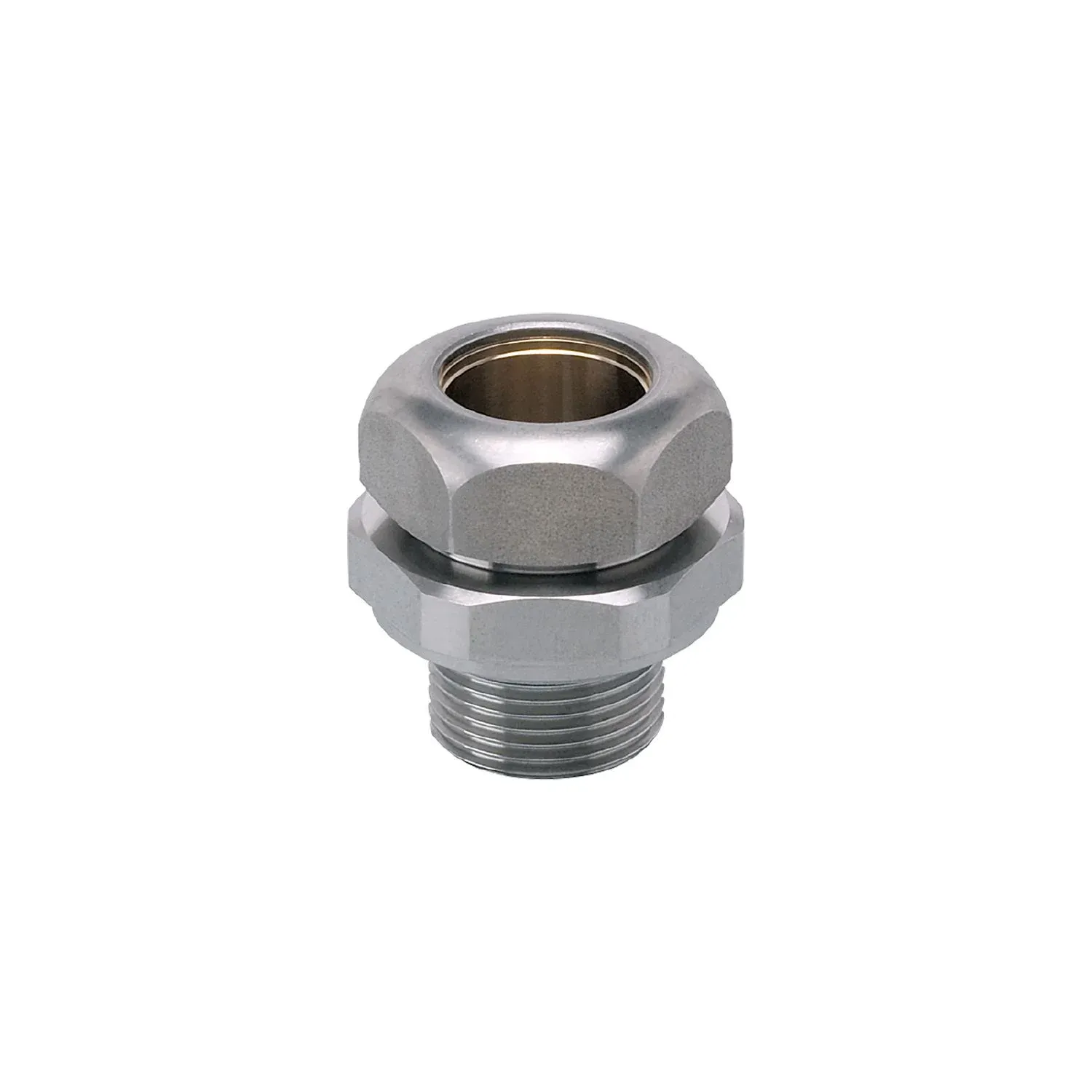

IFM E43008
E43008
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the installation of capacitive level sensors with climatic tube in containers
Easy, quick and secure mounting
User-friendly setting of the requested immersion depth of the sensor
Robust stainless steel design for use in harsh industrial environments
Specification
Application
| Design | for climatic tube LK, LI |
|---|---|
| Installation | Clamp fitting |
| Pressure rating | 0.5 bar 0.05 MPa |
| 0.5 bar | 0.05 MPa |
Operating conditions
| Ambient temperature[°C] [°C] | 0...80 |
|---|
Mechanical data
| Weight[g] [g] | 195.5 |
|---|---|
| Dimensions[mm] [mm] | Ø 39 / L = 42 |
| Materials | stainless steel; NBR; Tesnit; brass |
| Tightening torque[Nm] [Nm] | 6...8 |
| Sensor connection | Ø 22 mm |
| Process connection | threaded connection G 3/4 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
