IFM E40476
E40476
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

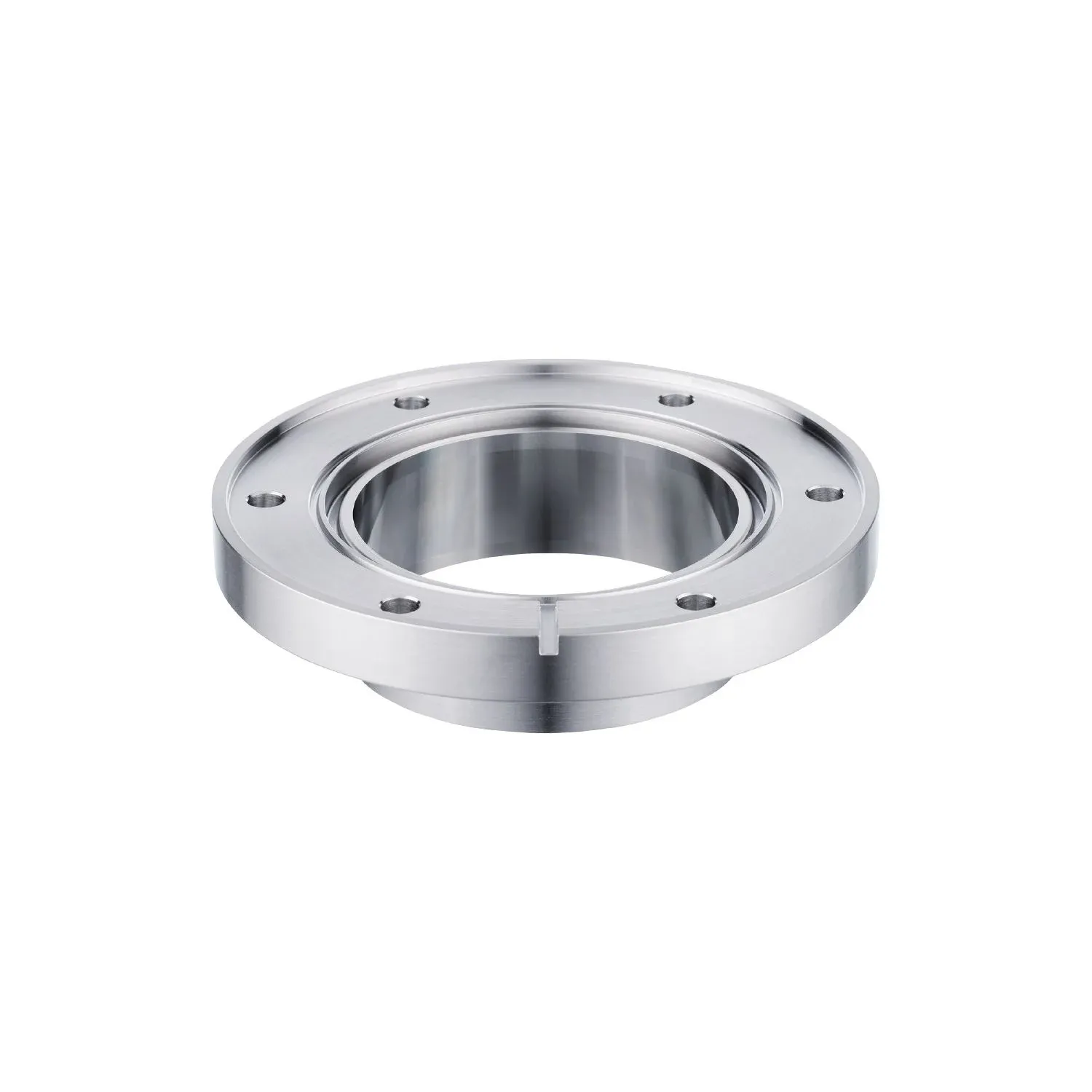

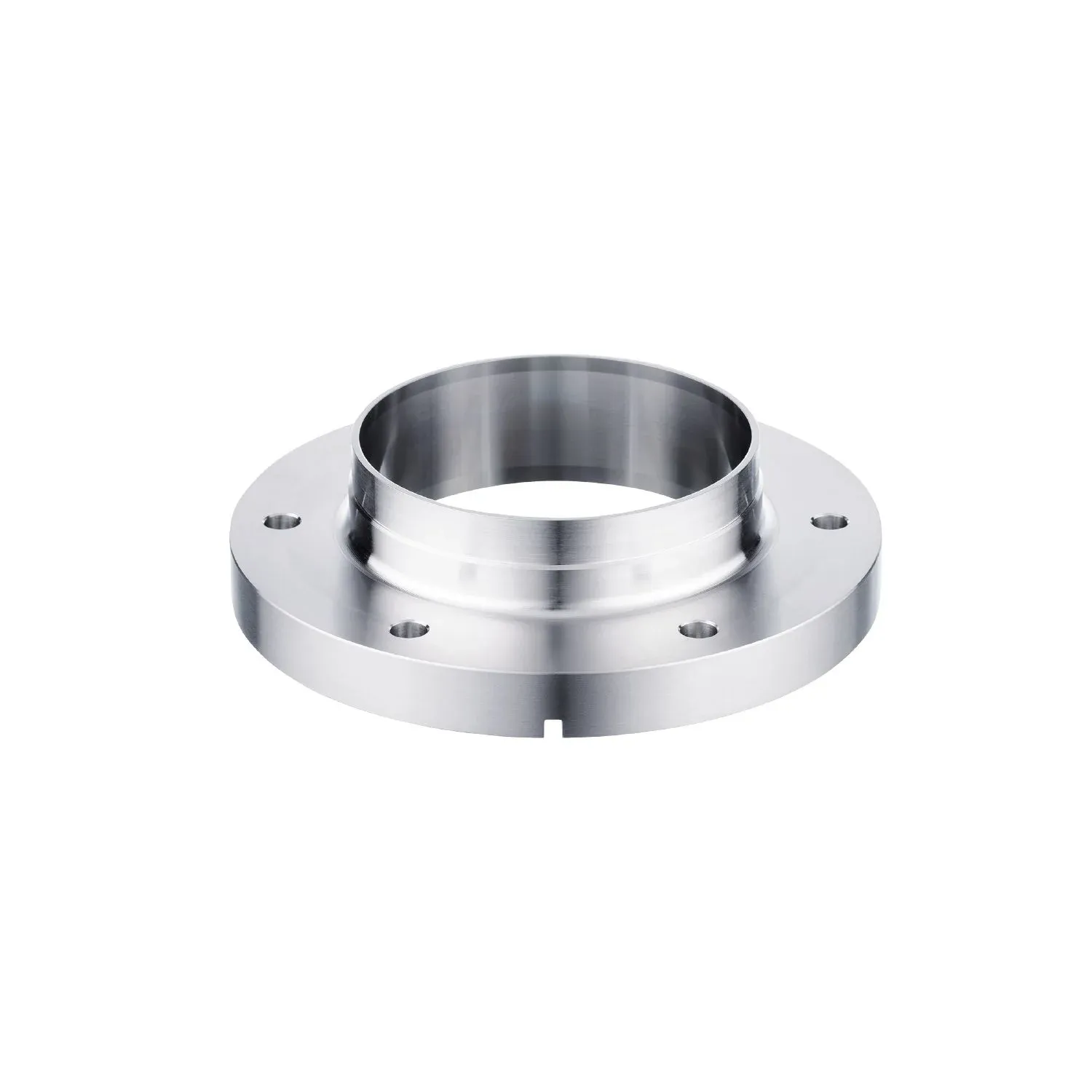

Installation in combination with the hygienic flow meter (SMF series)
For installation in pipes
Easy, quick and secure mounting
Food-grade stainless-steel adapters
Version with leakage port
Specification
Application
| Design | for volumetric flow meters SMF |
|---|---|
| Application | food and beverage industry; hygienic systems |
| Pressure rating | 25 bar 2.5 MPa |
| 25 bar | 2.5 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 4840.9 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 168 / L = 42.9 |
| Materials (wetted parts) | stainless steel (316L/1.4404) |
| Nominal diameter | DN100 (4“) |
| Sensor connection | ifm-specific device flange |
| Process connection | welding adapter EN10357 series A (DIN) |
| Process connection suitable for pipe standard | (DIN EN 10357 series A); (DIN 11866 series A); (DIN 11850 series 2) |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.4 µm |
Accessories
| Items supplied | screws 12 |
|---|
Remarks

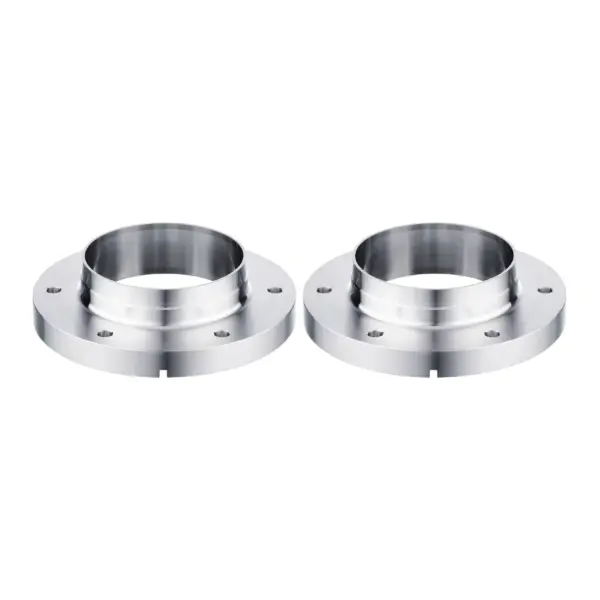

| Pack quantity | 2 pcs. |
|---|
