IFM E40460
E40460
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of small flow rates
Easy installation of the flow sensor via adapter
High pressure rating
Robust design for use in aggressive media
Suitable for liquids and gases
Specification
Application
| Design | for flow sensors SID, SF5 |
|---|---|
| Flow range[l/min] [l/min] | 0.2...2; ((SI1xxx); 0.2...3 (SI5xxx); factory setting with water) |
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature[°C] [°C] | -25...60 |
| Pressure rating | 16 bar 0.6 MPa |
| 16 bar | 0.6 MPa |
Mechanical data
| Weight[g] [g] | 324.55 |
|---|---|
| Materials | PP-H |
| Sensor connection | M18 x 1,5 |
| Process connection | G 1/4 |
Accessories

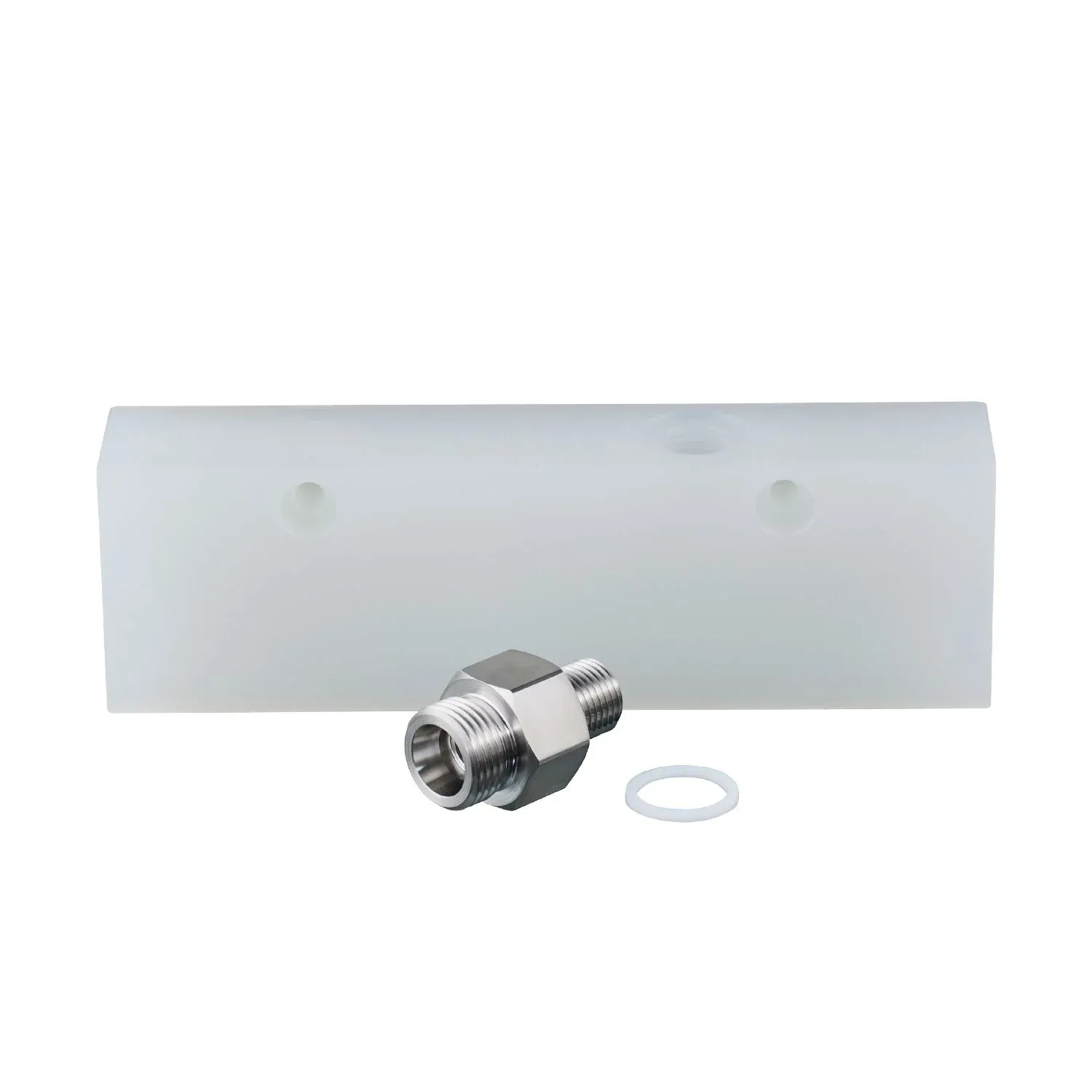

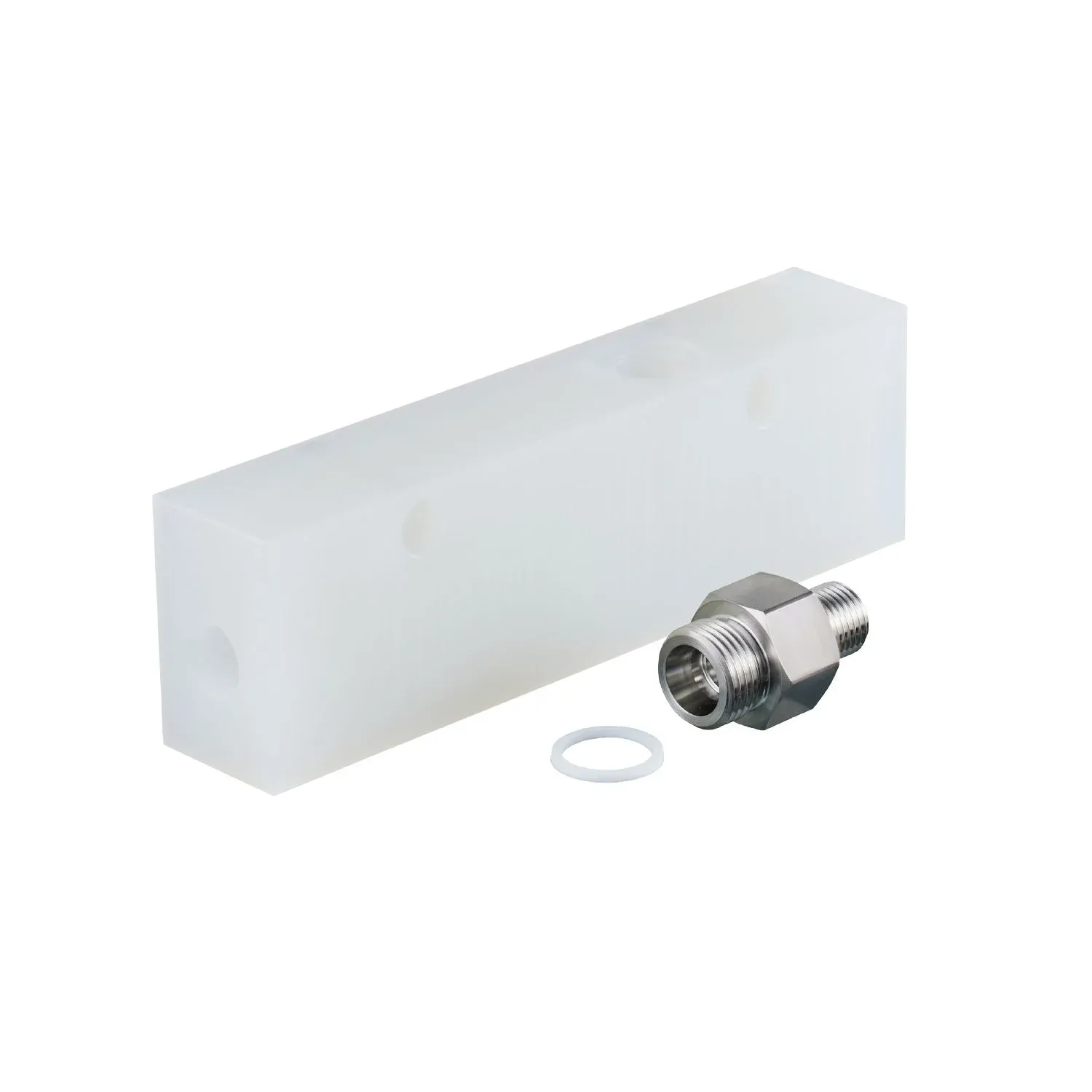

| Items supplied | Adapter: 1 x G1/4 BSPP, E40176 sealings: 1, PTFE |
|---|
Remarks
| Remarks | Can only be used in combination with the flow sensor’s relative operating mode. |
|---|---|
| Pack quantity | 1 pcs. |
