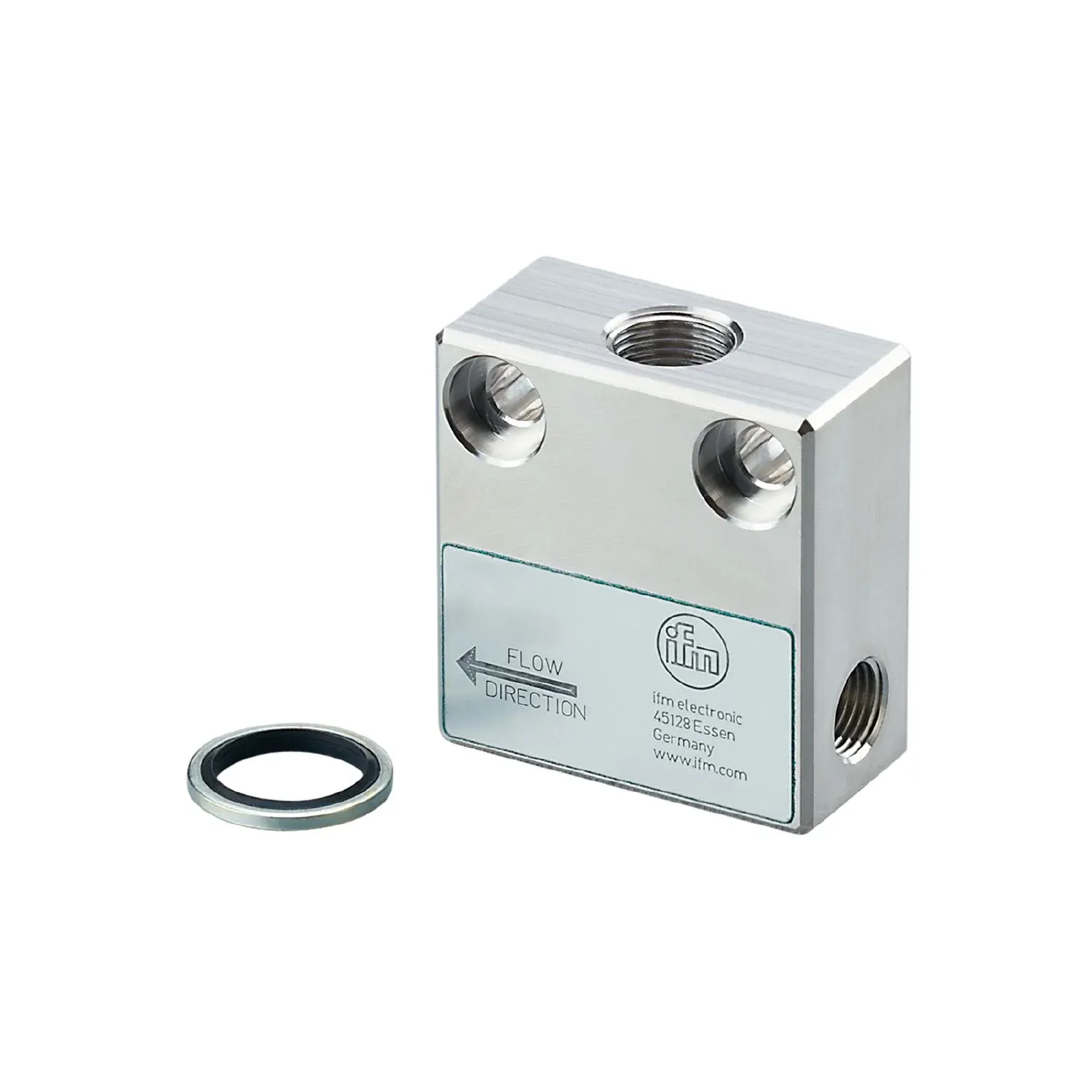

IFM E40434
E40434
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of small flow rates
Easy installation of the flow sensor via adapter
Very high pressure rating
Robust stainless steel design for use in harsh industrial environments
Suitable for liquids and gases
Specification
Application
| Application | for industrial applications |
|---|---|
| Installation | via internal G1/8A male thread, any mounting position; (SA5) |
| Medium temperature[°C] [°C] | 0...80 |
| Pressure rating | 100 bar 10 MPa |
| 100 bar | 10 MPa |
Measuring/setting range
| Flow range[ml/min] [ml/min] | 2...150 |
|---|
Mechanical data
| Weight[g] [g] | 212.7 |
|---|---|
| Materials | stainless steel (316L/1.4404) |
| Sensor connection | M12 x 1 |
| Process connection | G 1/8 |
Accessories
| Items supplied | sealings: 1, U-seal |
|---|---|
| Accessories (optional) | Adapter: ≤ 30 bar, E40101 Adapter: ≤ 300 bar, E40236 |
Remarks
| Remarks | Can only be used in combination with the flow sensor’s relative operating mode. |
|---|---|
| Pack quantity | 1 pcs. |
