IFM E40254
E40254
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

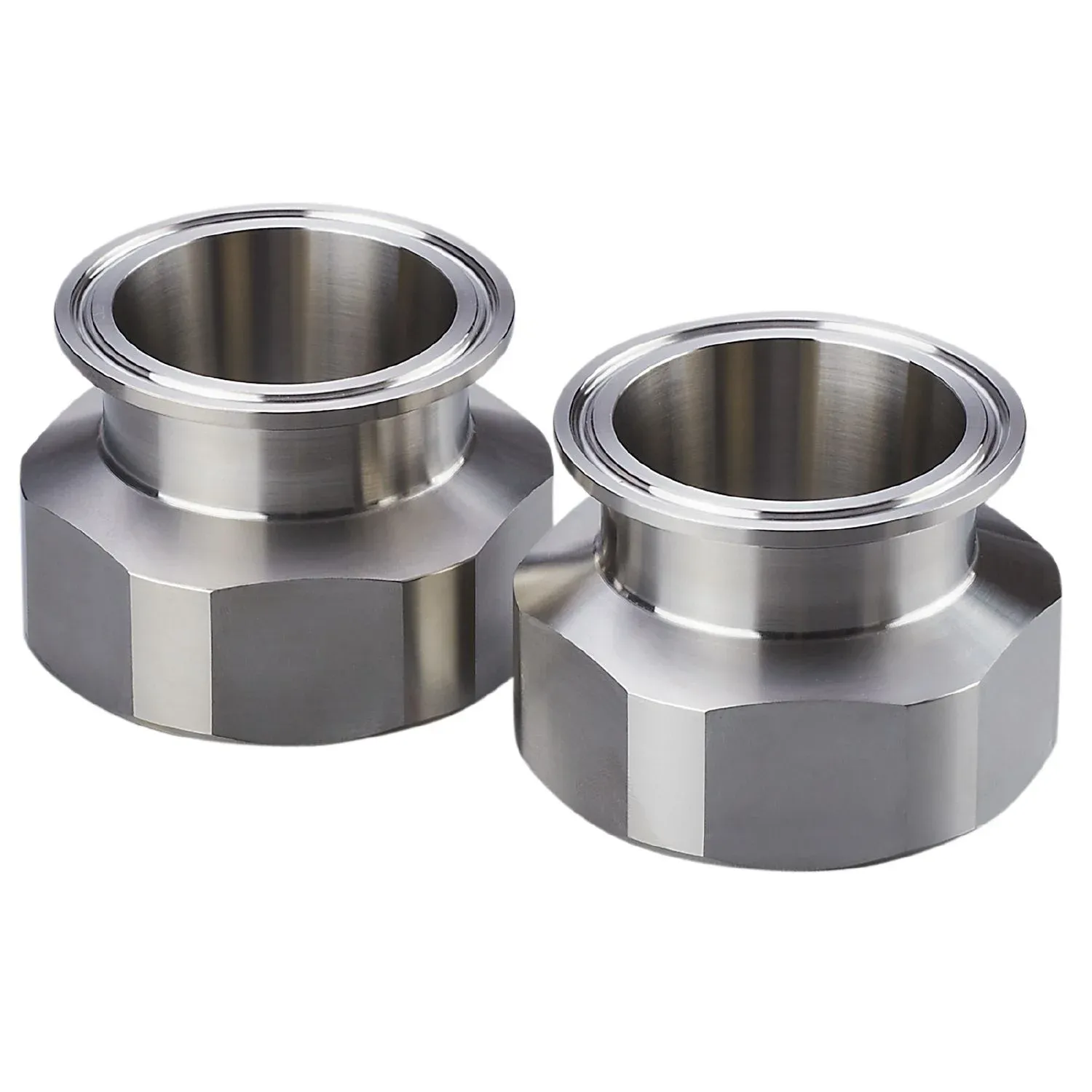

For the installation of magnetic-inductive flow sensors in pipes
Easy, quick and secure mounting
High permissible overload pressure rating
Requested sealings supplied with the unit
Robust stainless steel design for use in harsh industrial environments
Specification
Application
| Design | for flow sensors Typ SM2, SM9 |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Pressure rating[bar] [bar] | 16 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 1040 |
|---|---|
| Materials | Adapter: stainless steel (316L/1.4404); O-ring: FKM 47,22 x 3,53 mm |
| Sensor connection | G 2 |
| Process connection | Clamp DN50 (2") DIN 32676 (ISO 2852) |
Accessories
| Items supplied | O-rings: 2 |
|---|
Remarks
| Pack quantity | 2 pcs. |
|---|
