Description

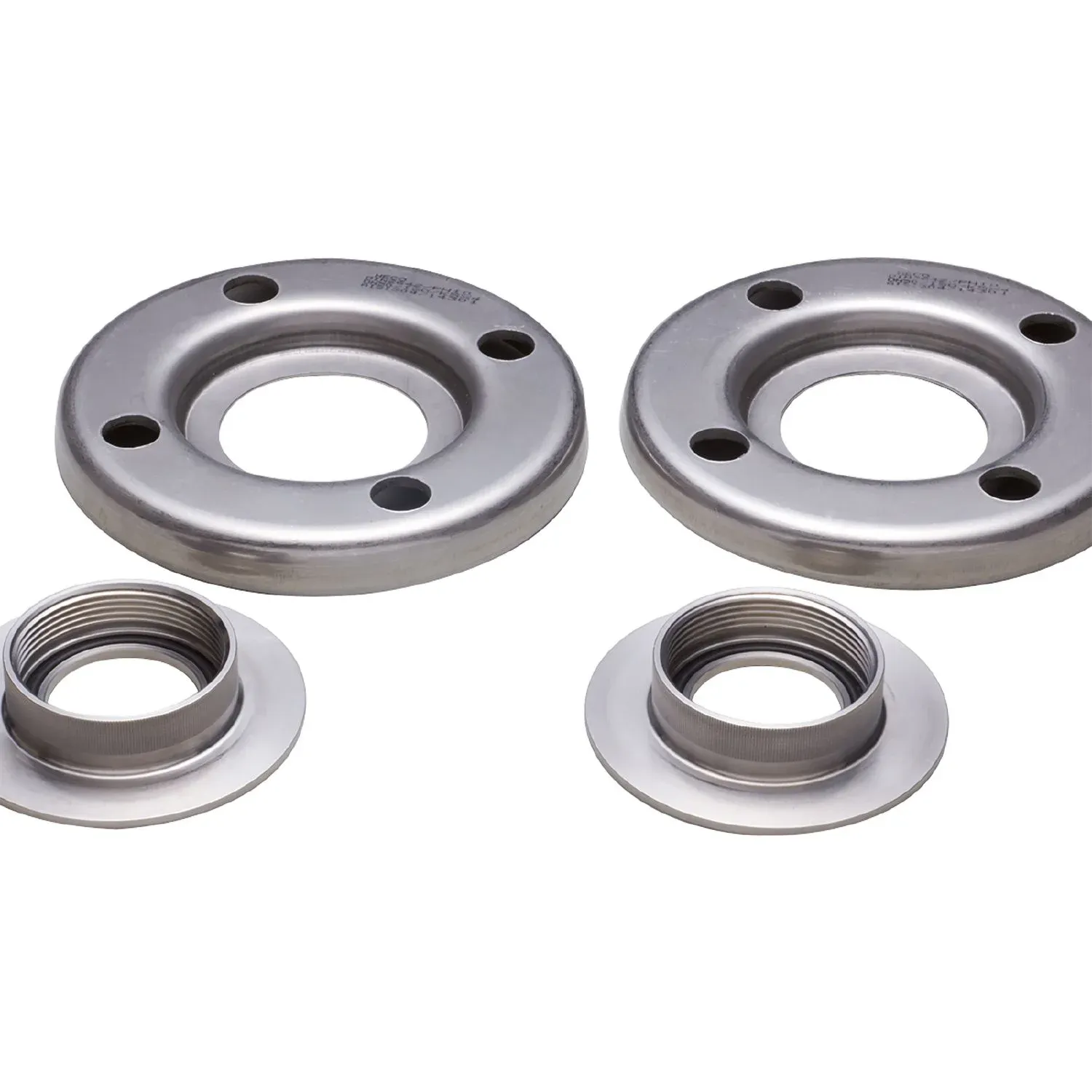

For the installation of magnetic-inductive flow sensors in pipes
Easy, quick and secure mounting
High permissible overload pressure rating
Requested sealings supplied with the unit
Robust stainless steel design for use in harsh industrial environments
Specification
Application
| Design | for flow sensors Typ SM2, SM9 |
|---|---|
| Installation | SM2 SM9 |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
Mechanical data
| Weight[g] [g] | 2255.5 |
|---|---|
| Type of mounting | Adapter; (rotatable) |
| Materials | flange: stainless steel (304/1.4301); Adapter: stainless steel (316Ti/1.4571); O-ring: EPDM 47,22 x 3,53 mm |
| Sensor connection | G 2 |
| Process connection | flange DN50 according to DIN2642 / EN1092-1 type 2 |
Accessories
| Items supplied | O-rings: 2 |
|---|
Remarks
| Pack quantity | 2 pcs. |
|---|
