IFM E40161
E40161
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

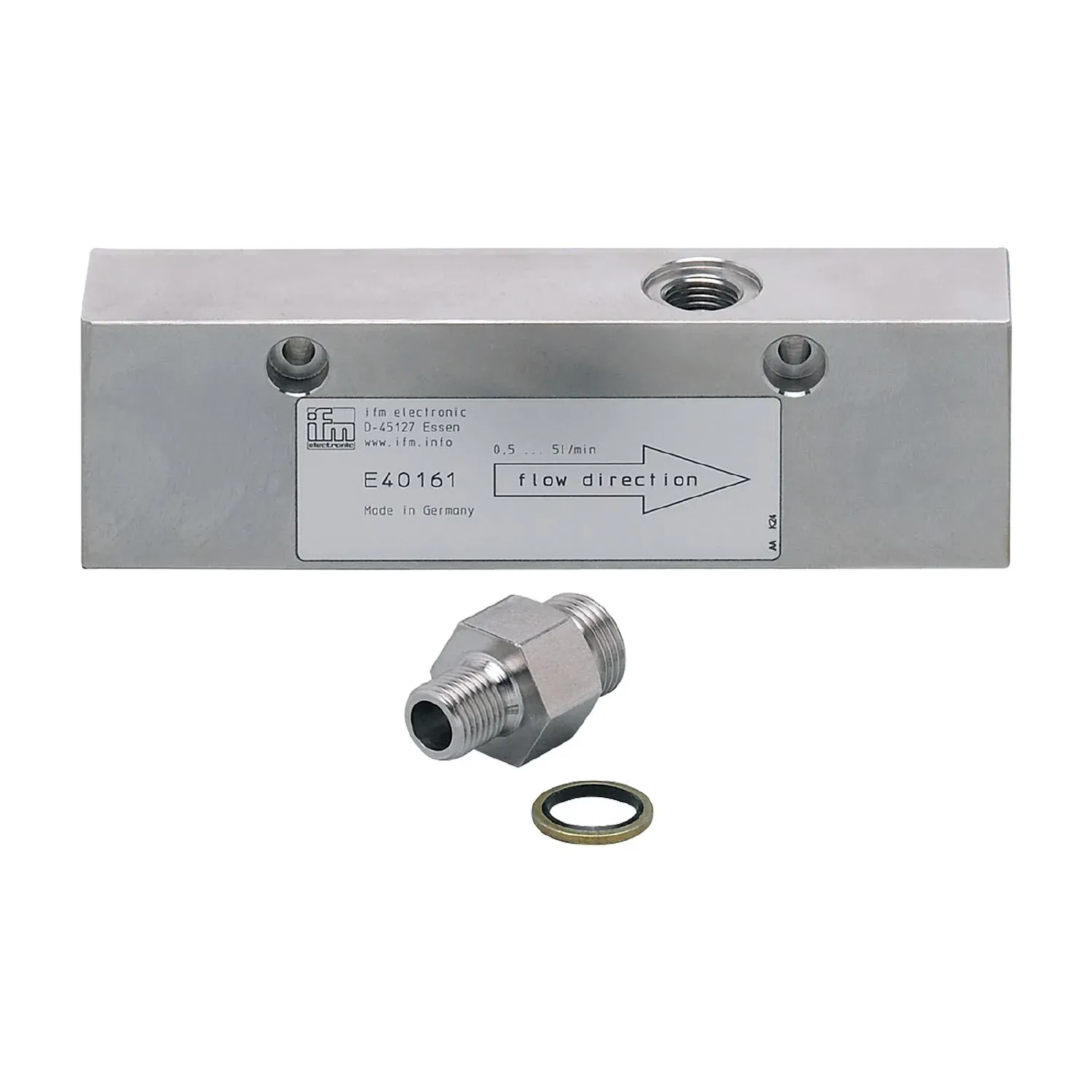

For the installation of flow sensors in pipes
For the precise detection of a defined volumetric flow quantity
Easy, quick and secure mounting
Very high, reliable overload pressure rating
Robust stainless steel design for use in harsh industrial environments
Specification
Application
| Design | for flow sensors SID, SF5 |
|---|---|
| Flow range[l/min] [l/min] | 0.2...2; ((SI1xxx); 0.2...3 (SI5xxx); factory setting with water) |
| Application | for industrial applications |
| Media | liquids and gases |
| Pressure rating | 300 bar 30 MPa |
| 300 bar | 30 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 1514 |
|---|---|
| Materials | stainless steel (316L/1.4404) |
| Sensor connection | M18 x 1,5 |
| Process connection | G 1/4 |
Accessories
| Items supplied | Adapter: 1 x G1/4 BSPP, E40099 sealings: 1, U-seal |
|---|
Remarks
| Remarks | Can only be used in combination with the flow sensor’s relative operating mode. |
|---|---|
| Pack quantity | 1 pcs. |
