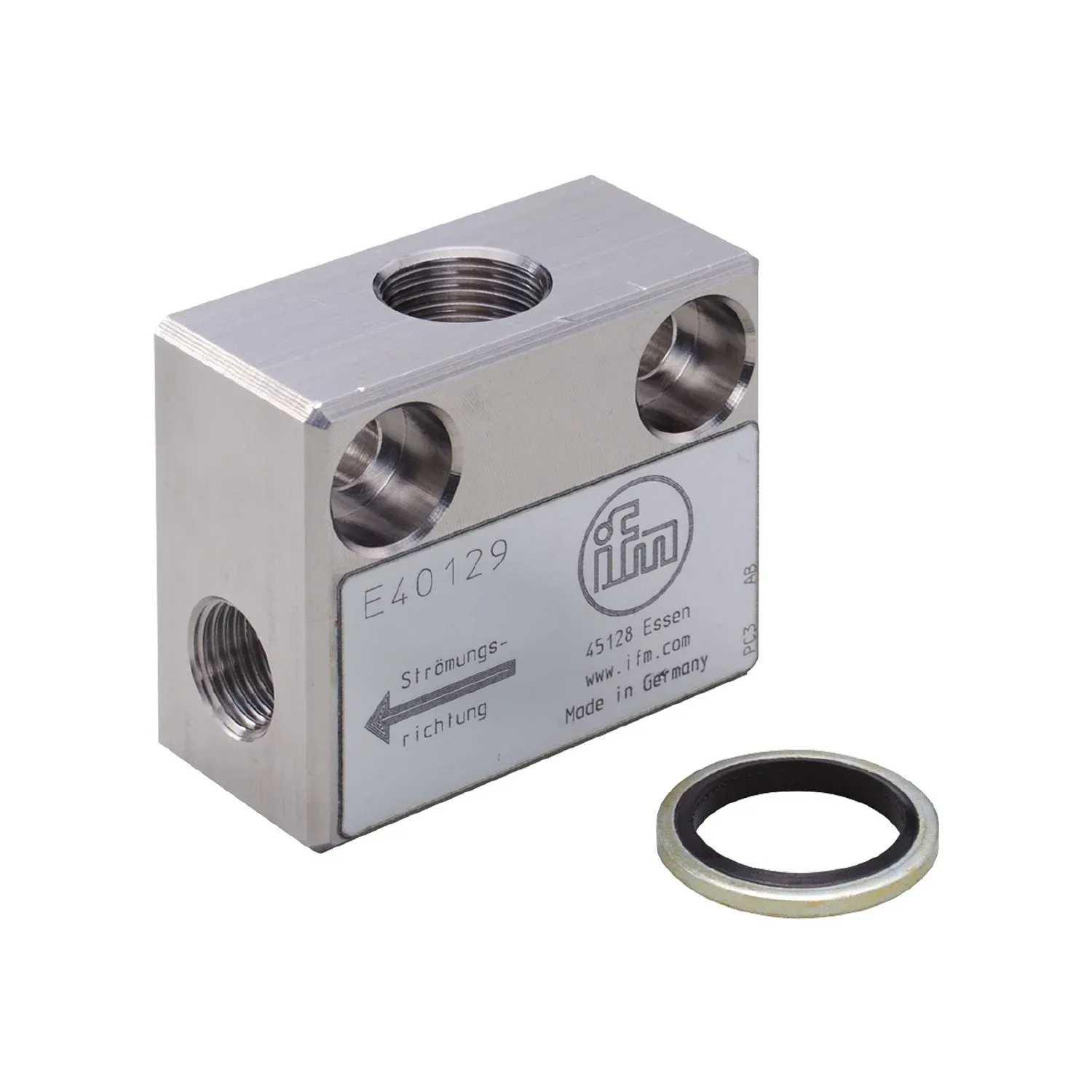

IFM E40129
E40129
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of small flow rates
Easy installation of the flow sensor via adapter
Very high pressure rating
Robust stainless steel design for use in harsh industrial environments
Suitable for liquids and gases
Specification
Application
| Design | for flow sensors and flow monitors |
|---|---|
| Application | for industrial applications |
| Installation | via internal G1/8A male thread, any mounting position |
| Media | liquids and gases |
| Medium temperature[°C] [°C] | 0...80; (Temperature gradient: 1 K/min) |
| Pressure rating | 300 bar 30 MPa |
| 300 bar | 30 MPa |
Measuring/setting range
| Flow range[ml/min] [ml/min] | 2...100 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 156.5 |
|---|---|
| Dimensions[mm] [mm] | M12 x 1 |
| Thread designation | M12 x 1 |
| Materials | stainless steel (316L/1.4404) |
| Sensor connection | M12 x 1 |
| Process connection | G 1/8 |
Accessories
| Items supplied | sealings: 1, U-seal |
|---|---|
| Accessories (optional) | Adapter: ≤ 30 bar, E40101 Adapter: ≤ 300 bar, E40236 |
Remarks
| Remarks | Can only be used in combination with the flow sensor’s relative operating mode. |
|---|---|
| Pack quantity | 1 pcs. |
