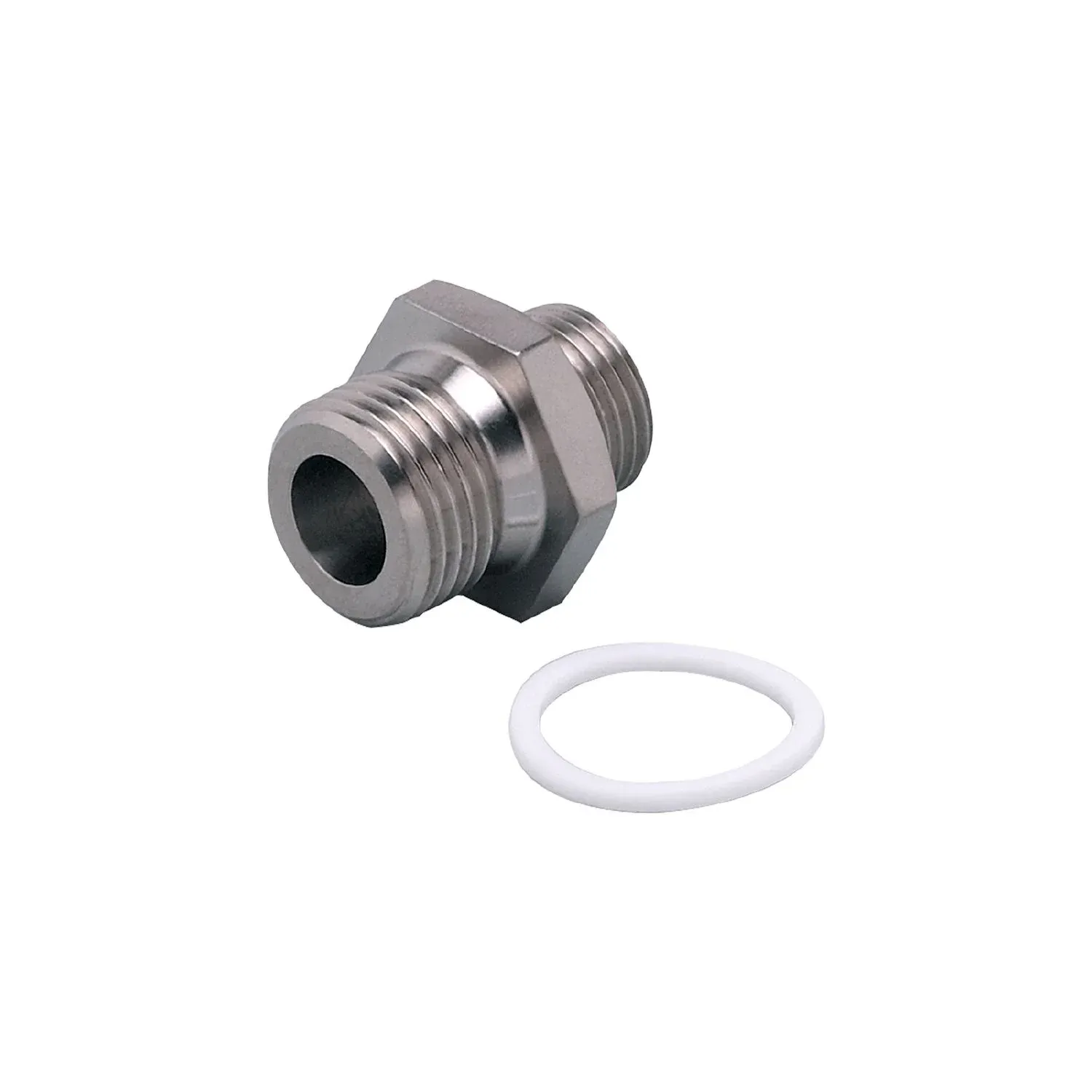

IFM E40114
E40114
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the installation of flow and temperature sensors in containers and pipes
Easy, quick and secure mounting
Suitable for liquids and gases
High permissible overload pressure rating
Robust titanium design for use in aggressive media
Specification
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Pressure rating | 30 bar 3 MPa |
| 30 bar | 3 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 32.5 |
|---|---|
| Dimensions[mm] [mm] | M18 x 1.5 |
| Thread designation | M18 x 1.5 |
| Materials | titanium (3.7035) |
| Sensor connection | M18 x 1,5 |
| Process connection | threaded connection G 1/2 |
| Insertion depth[mm] [mm] | 21; (measuring probe SID, SFD, TN) |
Accessories
| Items supplied | sealings: 1, PTFE |
|---|
Remarks
| Remarks | In applications >30 bar and ≤300 bar only use with a U-Seal sealing ring. |
|---|---|
| Pack quantity | 1 pcs. |
