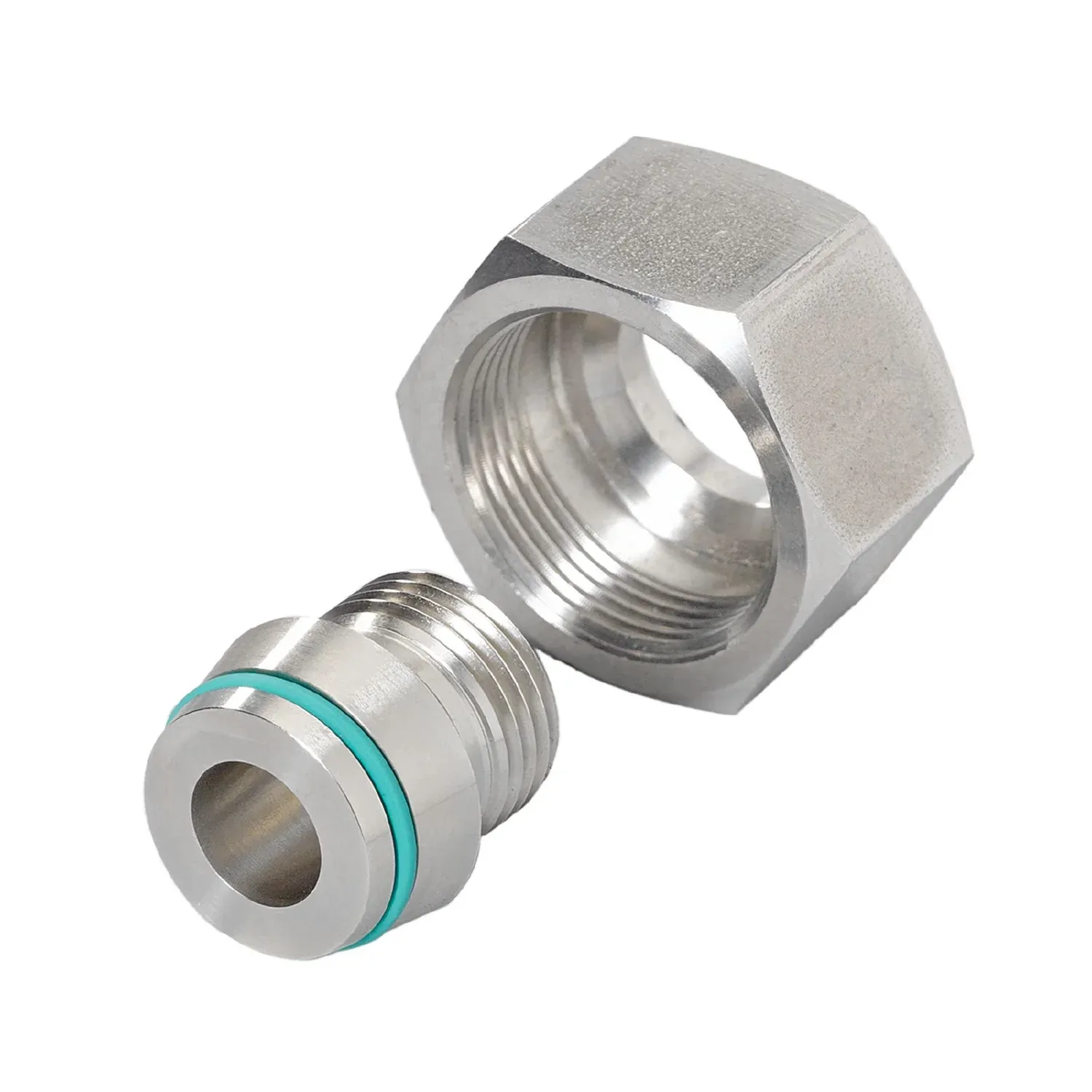

IFM E40104
E40104
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the installation of flow and temperature sensors in containers and pipes
Easy, quick and secure mounting
Suitable for liquids and gases
Very high, reliable overload pressure rating
Robust stainless steel design for use in harsh industrial environments
Specification
Application
| Application | for industrial applications |
|---|---|
| Installation | for mounting in T-pieces |
| Media | liquids and gases |
| Pressure rating | 300 bar 30 MPa |
| 300 bar | 30 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 94.8 |
|---|---|
| Type of mounting | for mounting in T-pieces |
| Materials | Lock nut: stainless steel (316Ti/1.4571); Adapter: stainless steel (316L/1.4404); O-ring: FKM 70 Shore A |
| Sensor connection | M18 x 1,5 |
| Process connection | threaded connection M26 x 1,5 |
| Insertion depth[mm] [mm] | 28.5; (measuring probe SID, SFD, TN) |
Remarks
| Pack quantity | 1 pcs. |
|---|
