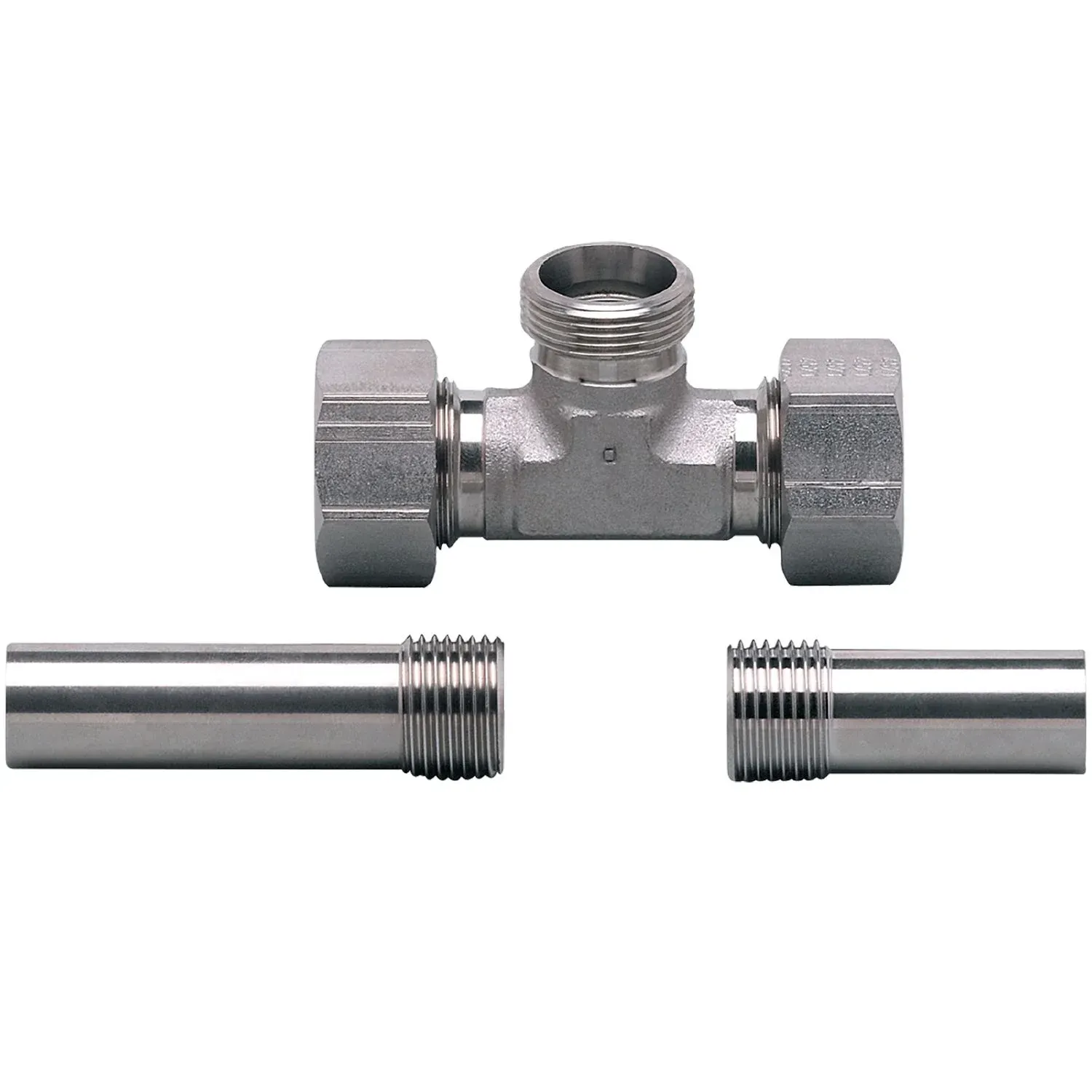

IFM E40102
E40102
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safe installation of process sensors in pipes
For use in industrial environments
Adapter for ensuring the correct immersion depth
High pressure rating
Robust stainless steel housing
Specification
Application
| Design | for sensors and adapters with process connection M26x1,5 |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Pressure rating[bar] [bar] | 300 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 378.8 |
|---|---|
| Materials (wetted parts) | housing: stainless steel (316Ti/1.4571) |
| Sensor connection | M26 x 1,5 internal thread |
| Process connection | G 1/2 |
Accessories
| Accessories (optional) | Adapter: 1 x M18 x 1,5, for direct connection of flow sensors, E40104 |
|---|
Remarks
| Remarks | Use a lubricating paste which is suitable and approved for the application Observe the notes on the installation of progressive ring fittings |
|---|---|
| Pack quantity | 1 pcs. |
