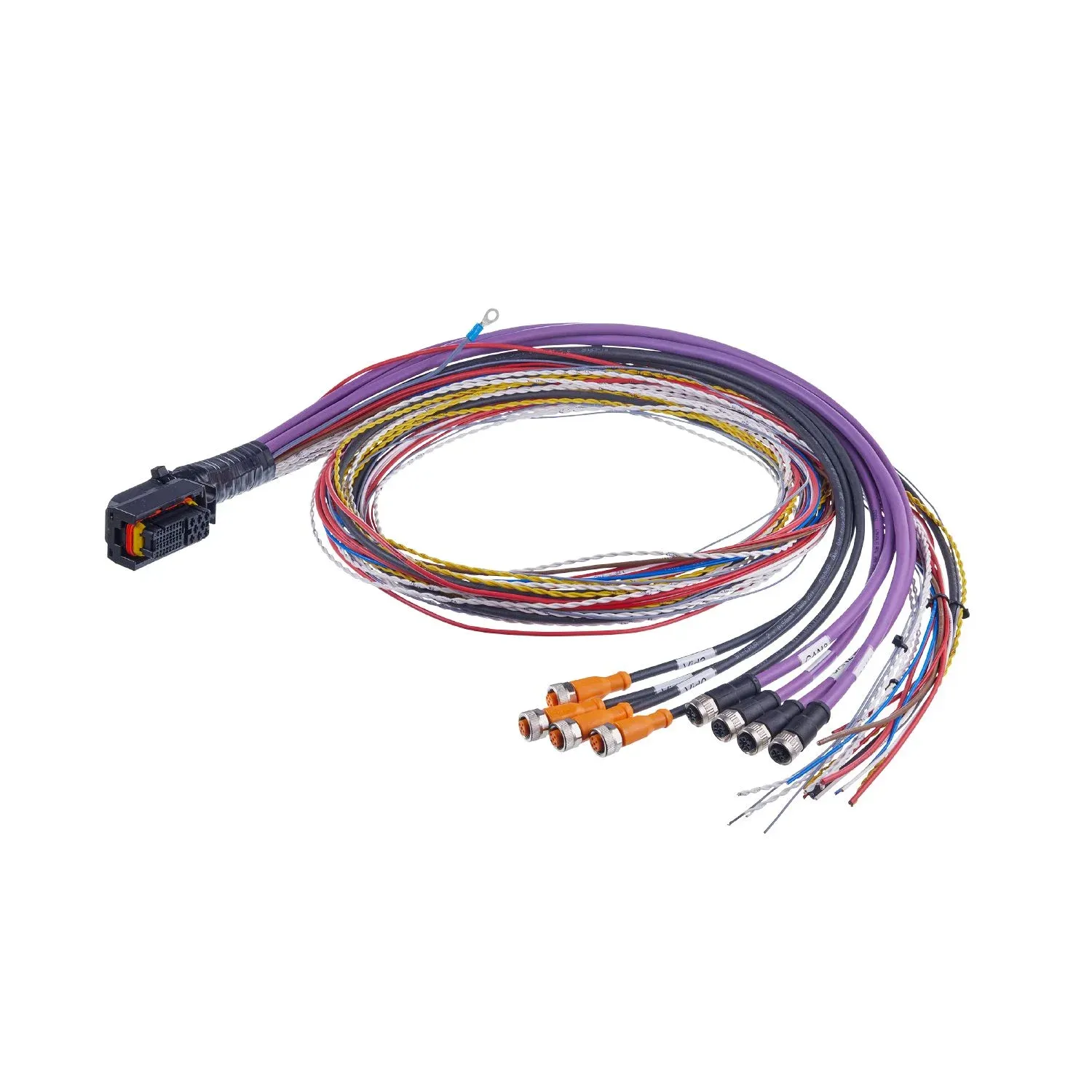

IFM E3M178
E3M178
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
Electrical data
| Operating voltage[V] [V] | < 36 DC |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Protection | IP 65; IP 67; (M12 connector) |
Mechanical data
| Weight[g] [g] | 1209 |
|---|---|
| Moulded-body material | PA 6.6-GF30 / PBT-GF15 |
| Material nut | PBT-GF30 |
Remarks
| Pack quantity | 1 pcs. |
|---|

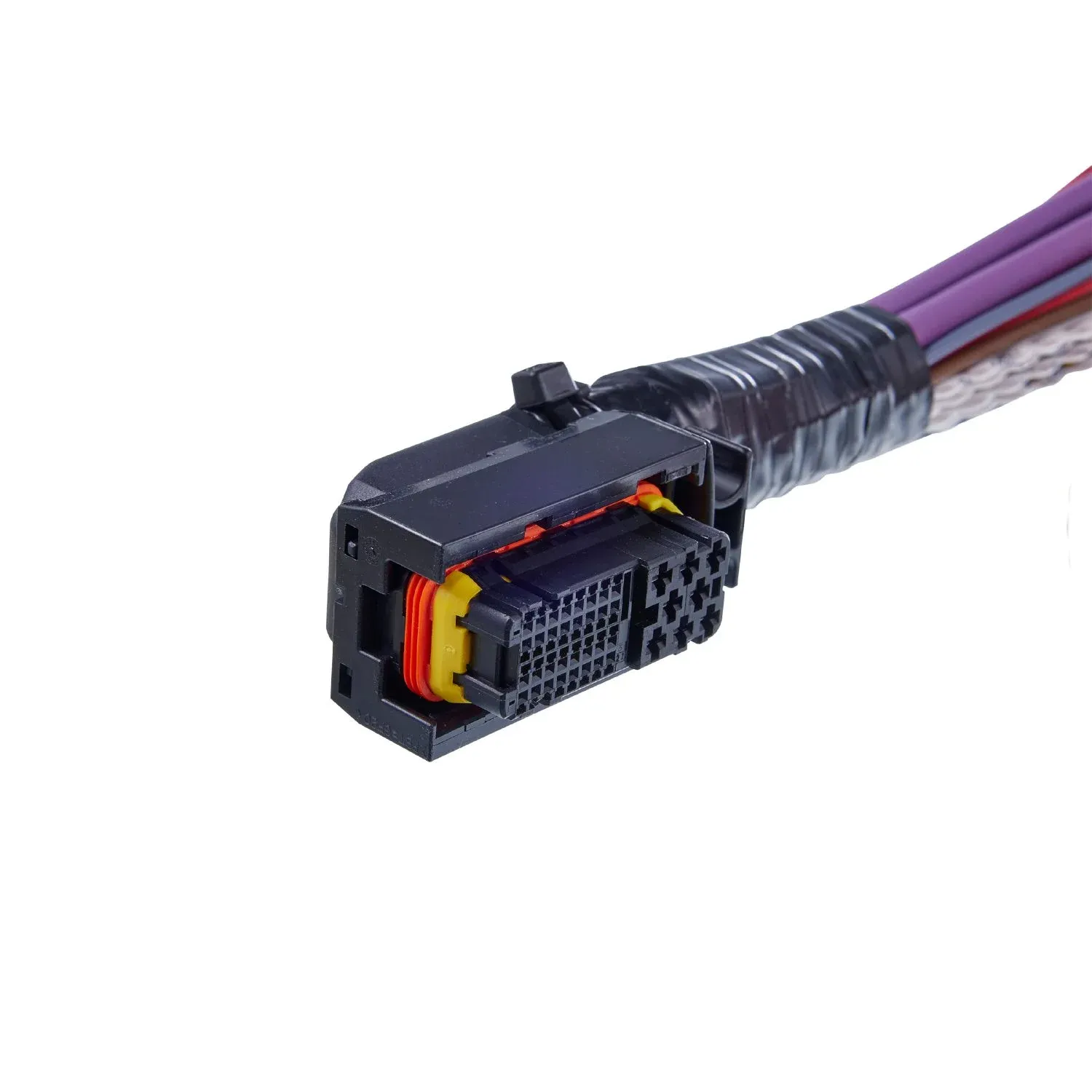

Electrical connection - AMP connector
| Connector | 1 x AMP-Junior Timer; Moulded body: PA 6.6-GF30 / PBT-GF15, black; Locking: PBT-GF30 |
|---|
Electrical connection
| Cable | 2.5 m, PUR; FLRY-B; 8 x 0.34 mm², PVC + 24 x 0.5 mm², PVC + 5 x 1.0 mm², PVC + 3 x 2.5 mm², PVC + (provide screen with ring cable lug (M5) ) |
|---|
Electrical connection - socket video 0 ... video 3
| Connector | 4 x M12, straight; coding: A |
|---|
Electrical connection - socket CAN 0 ... CAN 1
| Connector | 2 x M12, straight; coding: A |
|---|
Electrical connection - socket CAN 2 ... CAN 3
| Connector | 2 x M12, straight; coding: A |
|---|
