IFM E3M159
E3M159
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

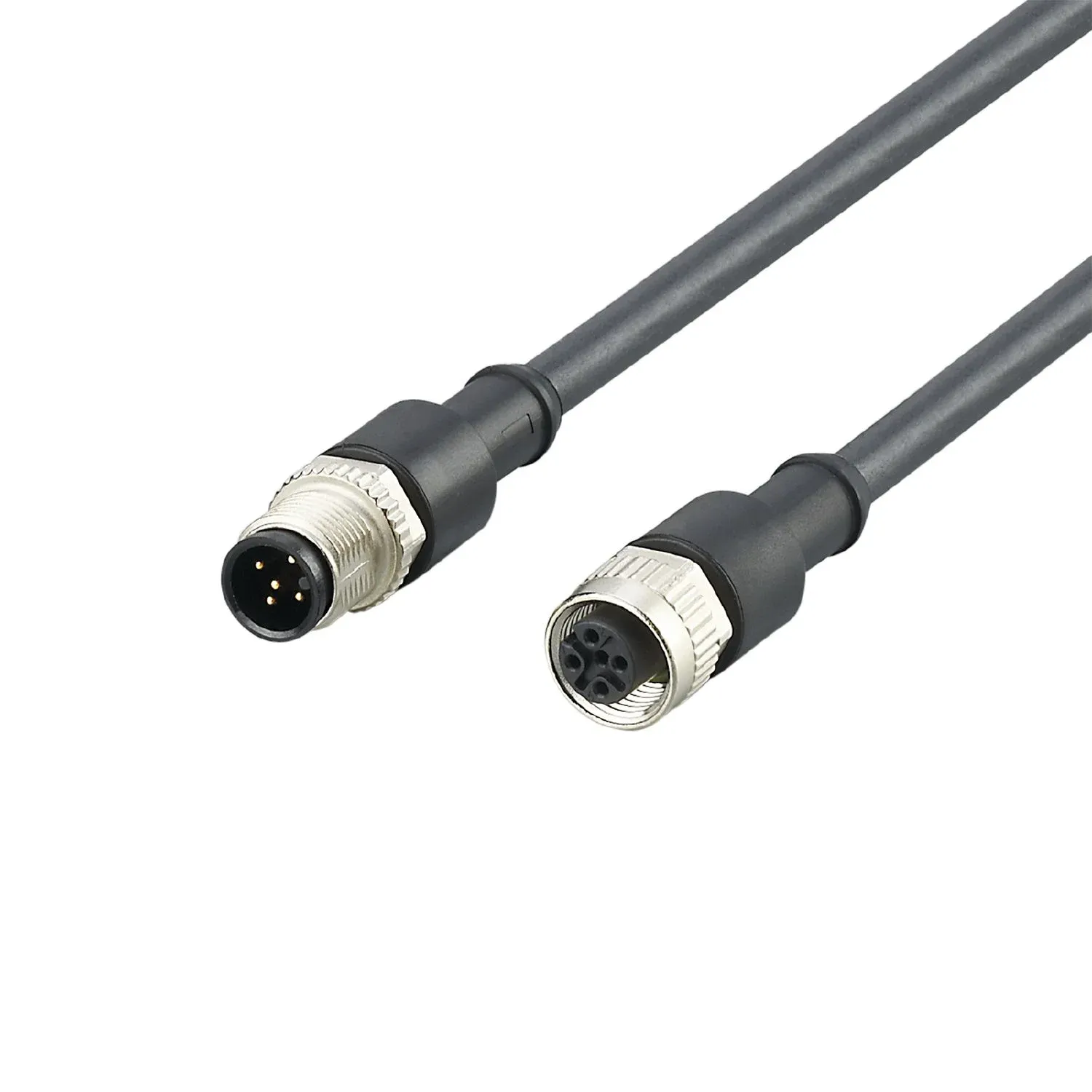

For the reliable connection of mobile 3D cameras
Good electromagnetic compatibility thanks to shielded cable
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Specification
Application
| Special feature | Screened cable; Drag chain suitability |
|---|---|
| Design | extension for O3M connection cable for 3D Smart sensor mobile with analogue video output PAL |
Electrical data
| Operating voltage[V] [V] | < 25 AC / < 60 DC |
|---|---|
| Protection class | III |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Protection | IP 67; IP 69K |
Mechanical data
| Weight[g] [g] | 274.3 |
|---|---|
| Dimensions[mm] [mm] | 14.5 x 14.5 x 48.4 |
| Materials | housing: PUR; Sealing: FKM; contact pins: CuSn6 nickel-plated and tin-plated |
| Material nut | stainless steel (303/1.4305) |
| Drag chain suitability | bending radius for fixed installation ≥ 60 mm |
| bending radius for fixed installation | ≥ 60 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 5 m, TPU, black, Ø 6 mm, shielded; Impedance 75 Ω |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Locking: stainless steel (303/1.4305) |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: A; Locking: stainless steel (303/1.4305) |
|---|
