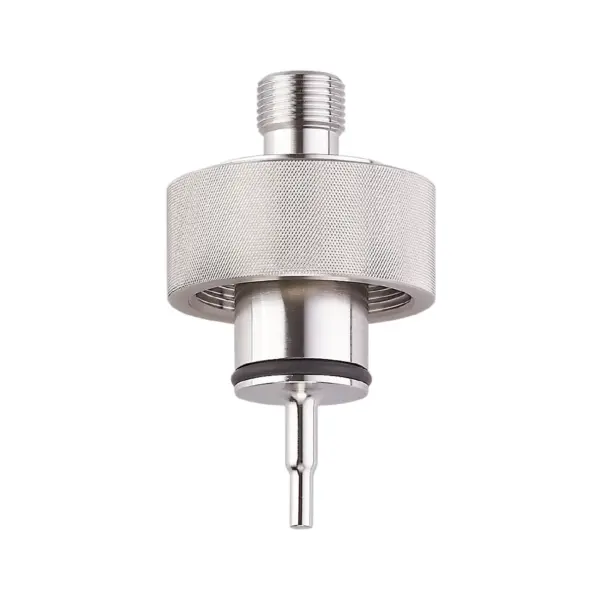

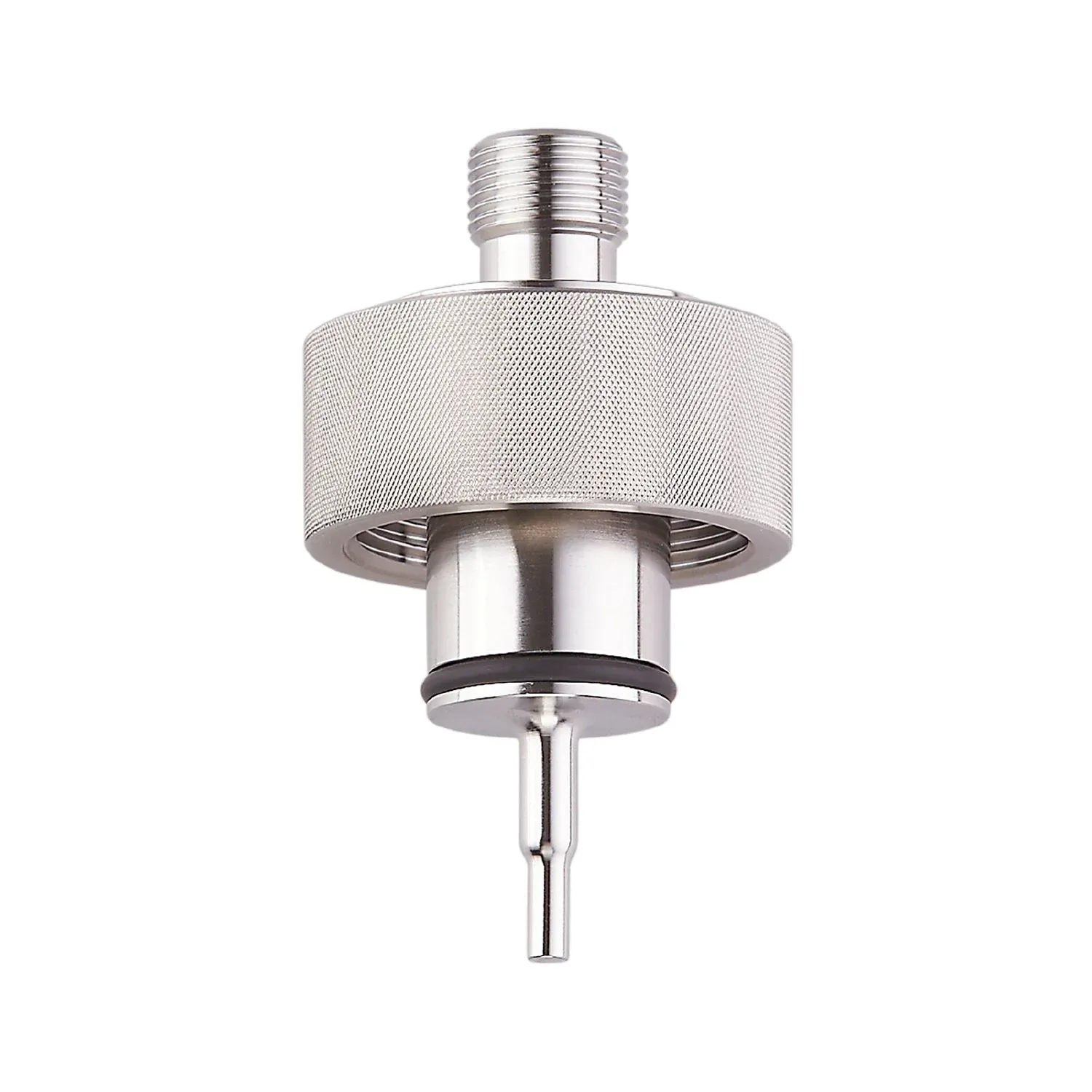

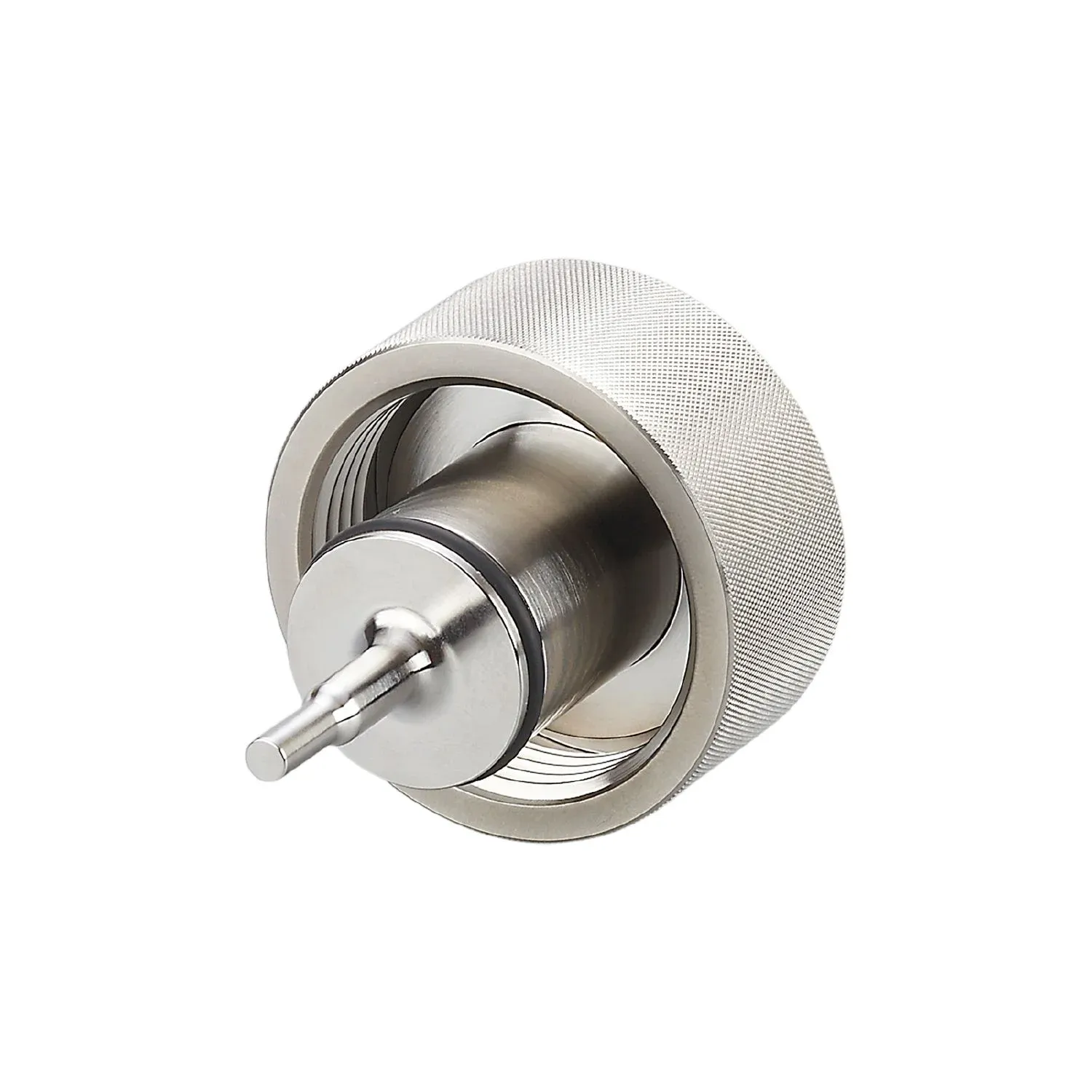

IFM E38826
E38826
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable protection against aggressive media and high flow velocities
Allows the replacement of the temperature sensor in a running process
High pressure rating
Simple process connection via adapter
Hygienic design for the requirements of the food and beverage industry
Specification
Application
| Design | for temperature sensors EL = 83 mm |
|---|---|
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
Mechanical data
| Weight[g] [g] | 868 |
|---|---|
| Materials | stainless steel (316L/1.4435) |
| Sensor connection | G 3/8 internal thread Ø 3 mm |
| Process connection | Ingold Ø 25 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.38 µm |
| Installation length EL[mm] [mm] | 25 |
| Bore length BL[mm] [mm] | 83 |
Remarks
| Pack quantity | 1 pcs. |
|---|
