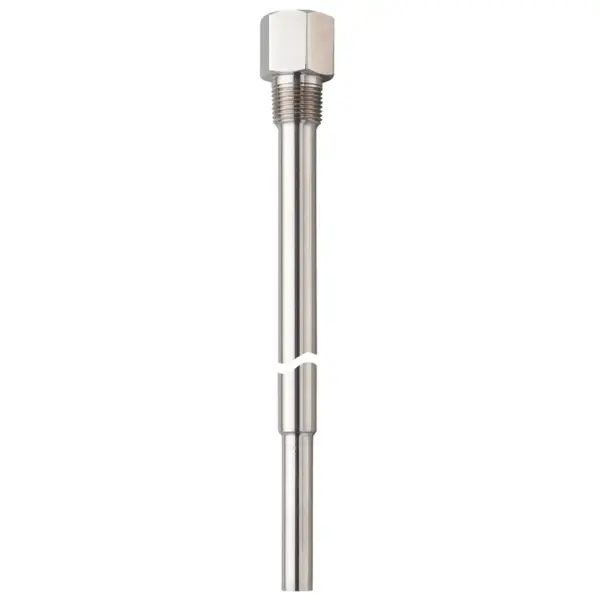

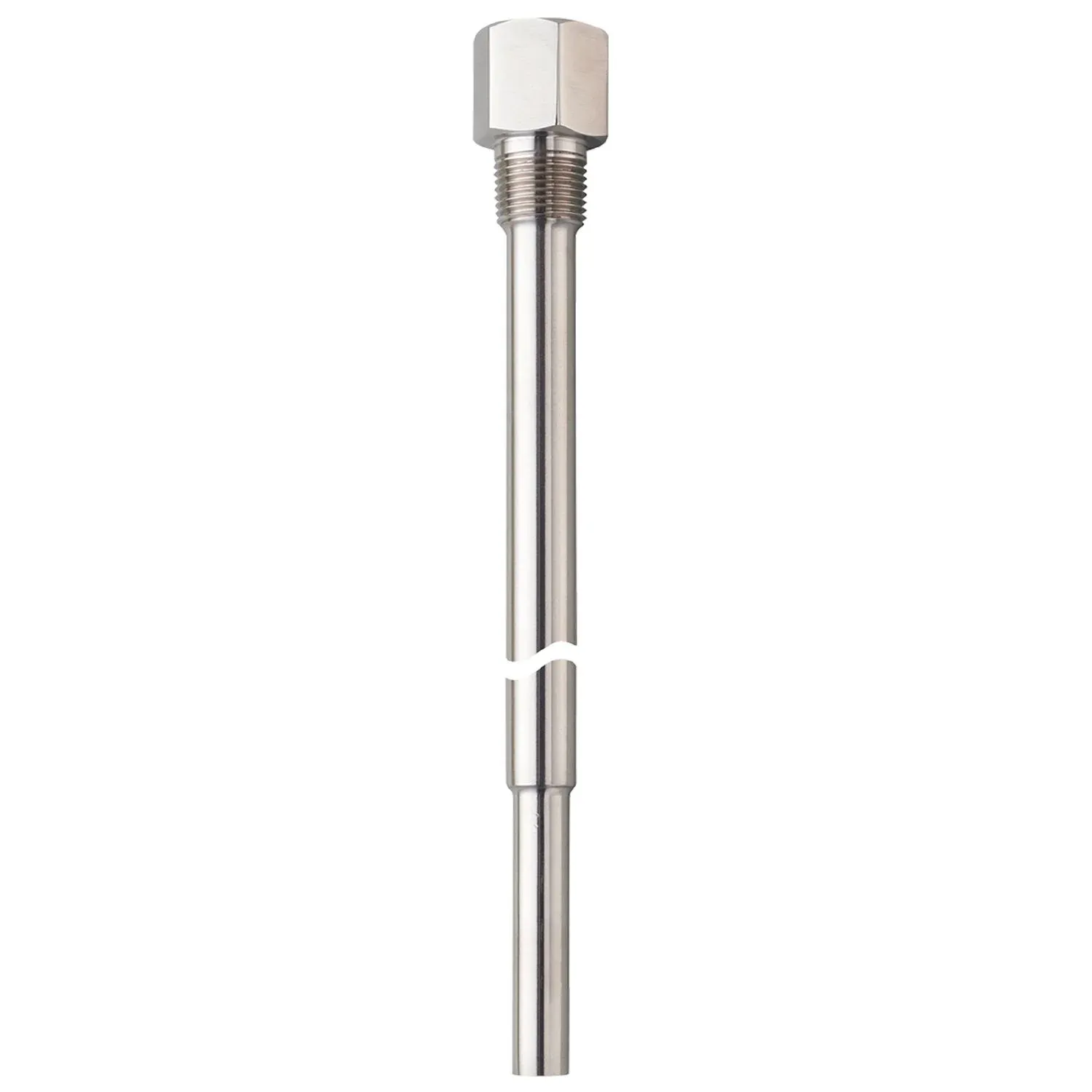

IFM E37210
E37210
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable protection against aggressive media and high flow velocities
Allows the replacement of the temperature sensor in a running process
Particularly high pressure rating
Simple process connection via adapter
Robust stainless steel housing for the requirements of harsh industrial environments
Specification
Application
| Design | for temperature sensors EL = 100 mm |
|---|---|
| Pressure rating | 400 bar 40 MPa |
| 400 bar | 40 MPa |
Accuracy / deviations
| Max. permissible flow velocity[m/s] [m/s] | 45 |
|---|
Mechanical data
| Weight[g] [g] | 180.5 |
|---|---|
| Materials | stainless steel (316L/1.4404) |
| Sensor connection | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT |
| Process connection | 1/2" NPT |
| Surface characteristics Ra/Rz of the wetted parts | 0.8µm |
| Installation length EL[mm] [mm] | 74 |
| Bore length BL[mm] [mm] | 101.6 |
Remarks
| Pack quantity | 1 pcs. |
|---|
