IFM E35220
E35220
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns

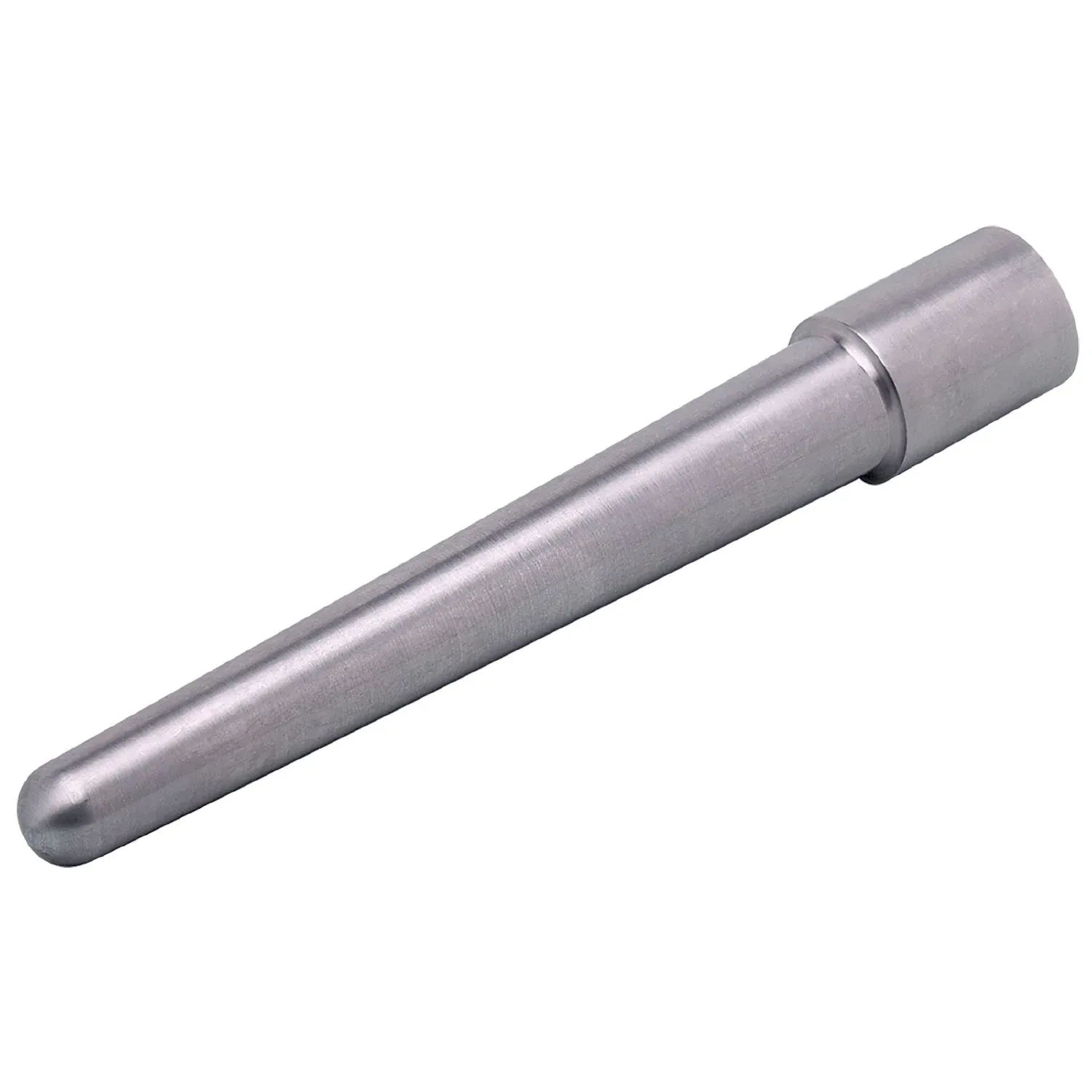

Description
Reliable protection against aggressive media and high flow velocities
Allows the replacement of the temperature sensor in a running process
High pressure rating
Robust stainless steel housing for the requirements of harsh industrial environments
Specification
Application
| Design | for temperature sensors EL = 200 mm |
|---|---|
| Pressure rating | 100 bar 10 MPa |
| 100 bar | 10 MPa |
Measuring/setting range
| Probe length L[mm] [mm] | 173 |
|---|
Mechanical data
| Weight[g] [g] | 505 |
|---|---|
| Dimensions[mm] [mm] | Ø 10 |
| Materials | stainless steel (316Ti/1.4571) |
| Sensor connection | G 1/2 |
| Process connection | welding adapter Ø 30 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.6 µm |
Remarks
| Pack quantity | 1 pcs. |
|---|
