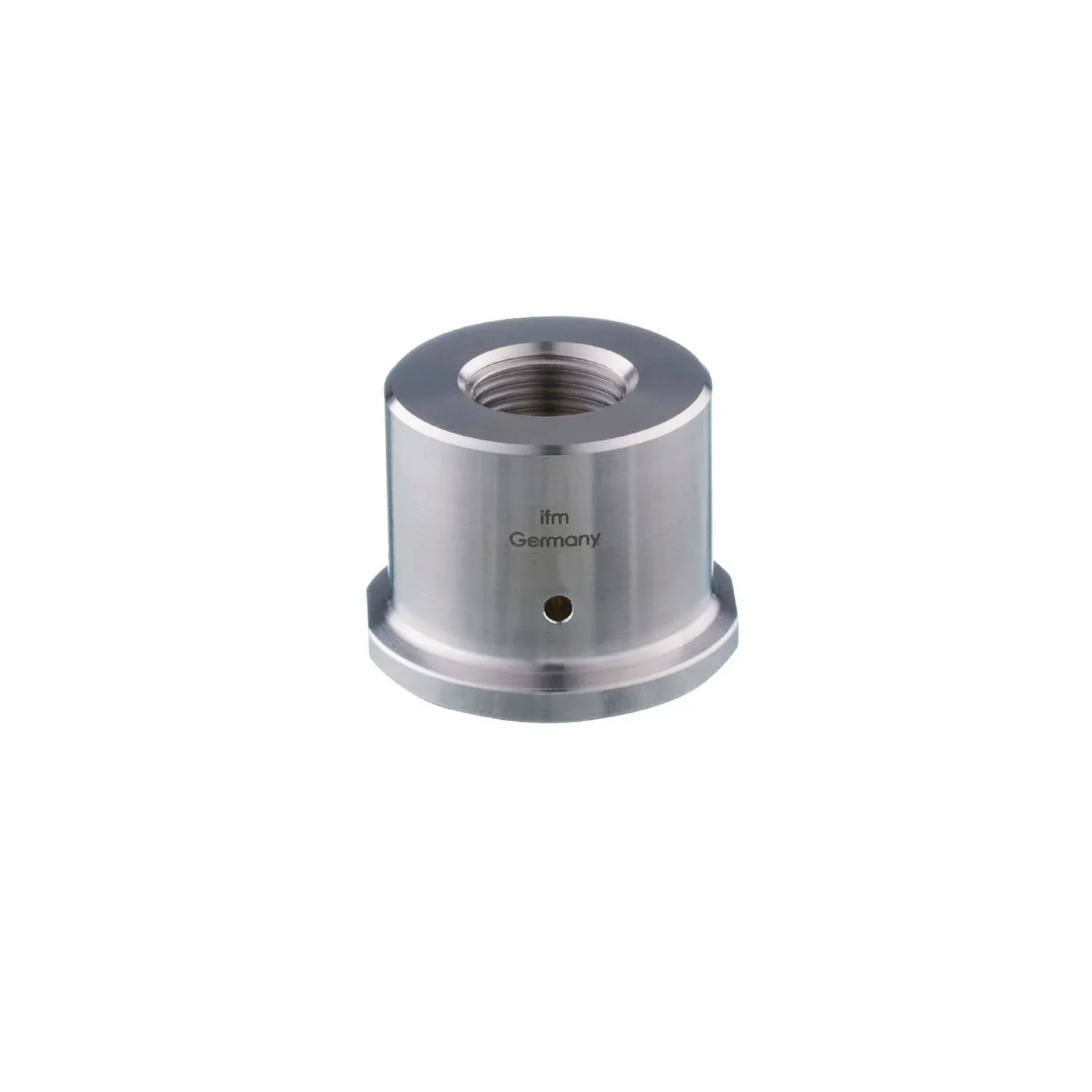

IFM E33407
E33407
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the installation of process sensors in containers and pipes
Easy, quick and secure mounting
Particularly suited for use in hygienic applications
Stainless steel adapter for the requirements of the food and beverage industry
High pressure rating
Specification
Application
| Design | with leakage port, for pipes, DN 32 (DIN 11866, Reihe A) |
|---|---|
| Pressure rating[bar] [bar] | 40 |
| Note on pressure rating | for the connection sensor - adapter |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 365 |
|---|---|
| Materials (wetted parts) | stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm |
| Sensor connection | G 1/2 sealing cone |
| Process connection | Clamp DN32 DIN 11864-3-A-NKS |
Remarks
| Pack quantity | 1 pcs. |
|---|
