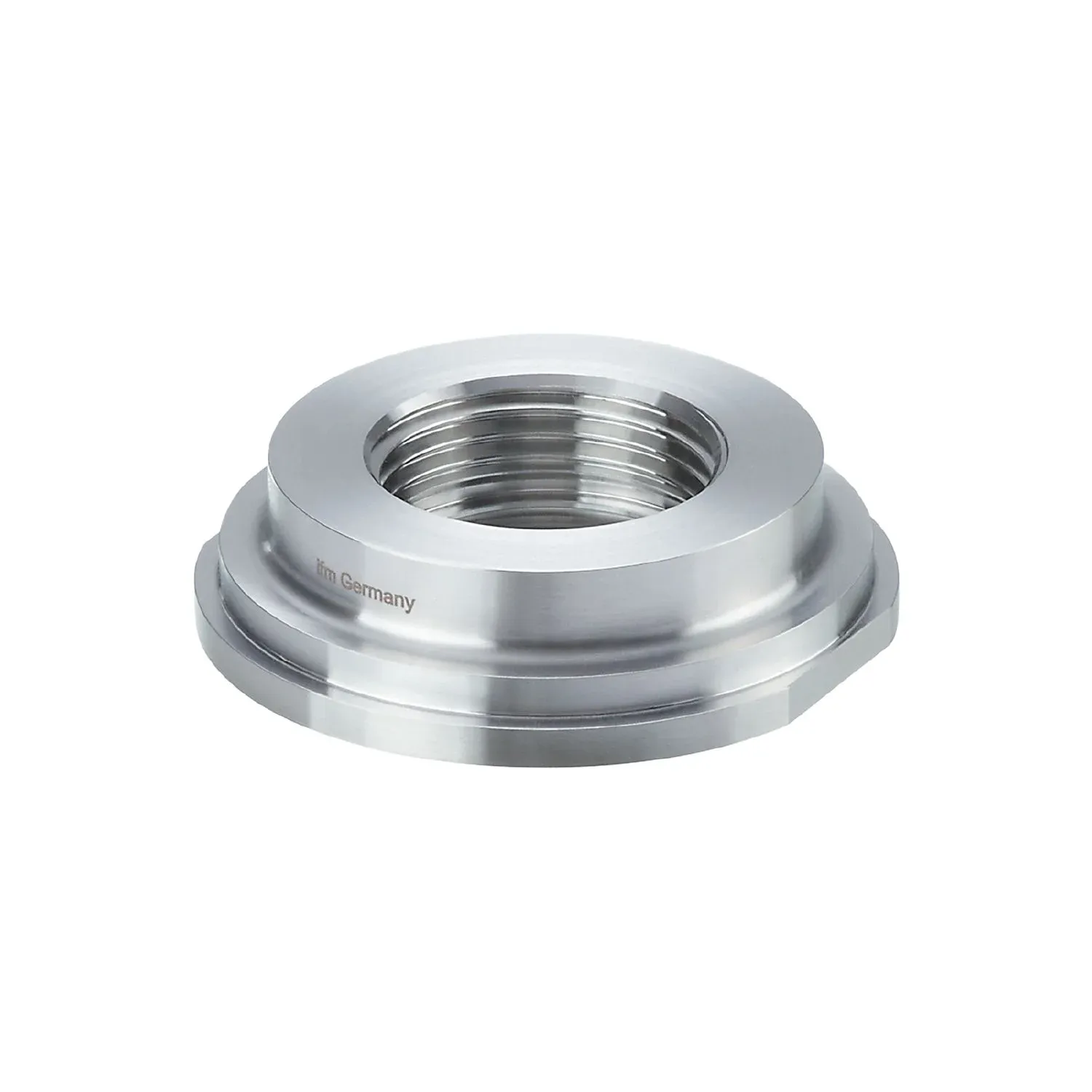

IFM E33298
E33298
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the installation of process sensors in containers and pipes
Easy, quick and secure mounting
Particularly suited for use in hygienic applications
Stainless steel adapter for the requirements of the food and beverage industry
High pressure rating
Specification
Application
| Pressure rating | 25 bar 4 MPa |
|---|---|
| 25 bar | 4 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 264.6 |
|---|---|
| Materials | stainless steel (316L/1.4435) |
| Sensor connection | G 1 internal thread Aseptoflex Vario |
| Process connection | SMS pipe fitting DN50 (2") Ø 65 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.4 µm / Rz = 4 µm |
| Sealing | Gasket |
| Hygienic equipment class to DIN 11866 | H4 |
Accessories
| Items supplied | O-rings: 1 x (24 x 2 mm), EPDM FDA compliant, E30054 |
|---|---|
| Accessories (optional) | O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123 sealing ring: 1, PEEK, FDA compliant, E30124 |
Remarks
| Pack quantity | 1 pcs. |
|---|
