IFM E33252
E33252
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

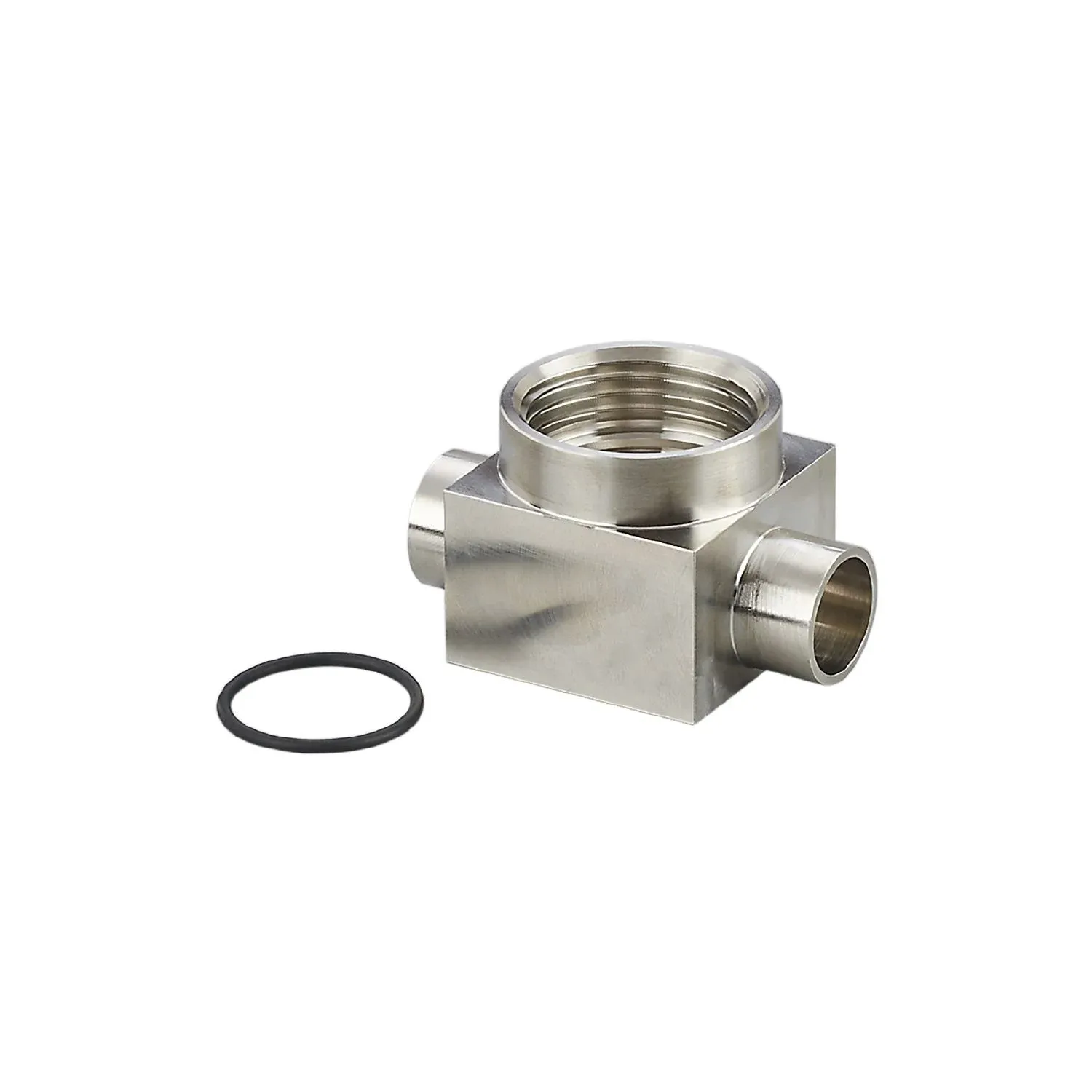

Safe installation of process sensors in pipes
For use in industrial and hygienic applications
Robust stainless steel housing
Specification
Application
| Design | with leakage port |
|---|---|
| Pressure rating | 25 bar 2.5 MPa |
| 25 bar | 2.5 MPa |
| Note on pressure rating | for the connection sensor - adapter |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 273.5 |
|---|---|
| Materials (wetted parts) | T-piece: stainless steel (316L/1.4404) surface characteristics: Ra < 0,8 µm / Rz 4 µm |
| Sensor connection | G 1 Aseptoflex Vario |
| Process connection | T-piece DN15 (19 x 1,5); Maße gemäß DIN 11866; Reihe A DIN |
| Sealing | Gasket |
Accessories
| Items supplied | O-ring: 1 x (24 x 2 mm), EPDM, FDA compliant, E30054 |
|---|---|
| Accessories (optional) | O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123 |
Remarks
| Pack quantity | 1 pcs. |
|---|
