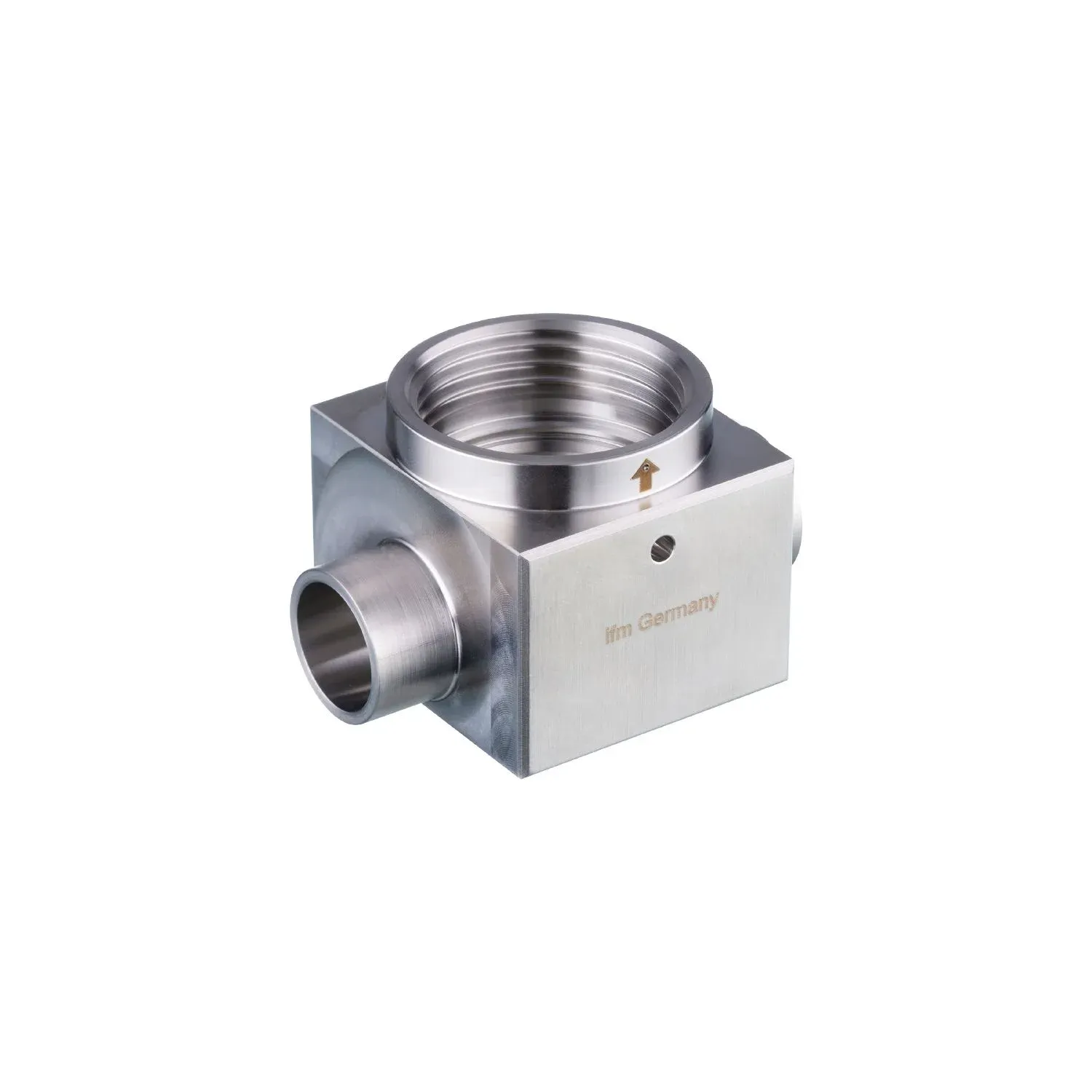

IFM E33251
E33251
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safe installation of process sensors in pipes
For use in industrial and hygienic applications
Robust stainless steel housing
Specification
Application
| Design | with leakage port |
|---|---|
| Pressure rating | 40 bar 4 MPa |
| 40 bar | 4 MPa |
| Note on pressure rating | for the connection sensor - adapter |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 357.1 |
|---|---|
| Materials (wetted parts) | housing: stainless steel (316L/1.4435) surface characteristics: Ra < 0,8 µm / Rz = 4 µm |
| Sensor connection | G 1 internal thread Aseptoflex Vario |
| Process connection | T-piece 3/4" (19,05 x 1,65); Maße gemäß DIN 11866 series C - BPE |
| Sealing | Gasket |
Accessories
| Items supplied | O-rings: 1 x (24 x 2 mm), EPDM, E30054 |
|---|---|
| Accessories (optional) | O-ring: 1 x 24 x 2, FKM, E30123 |
Remarks
| Pack quantity | 1 pcs. |
|---|
