IFM E30533
E30533
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

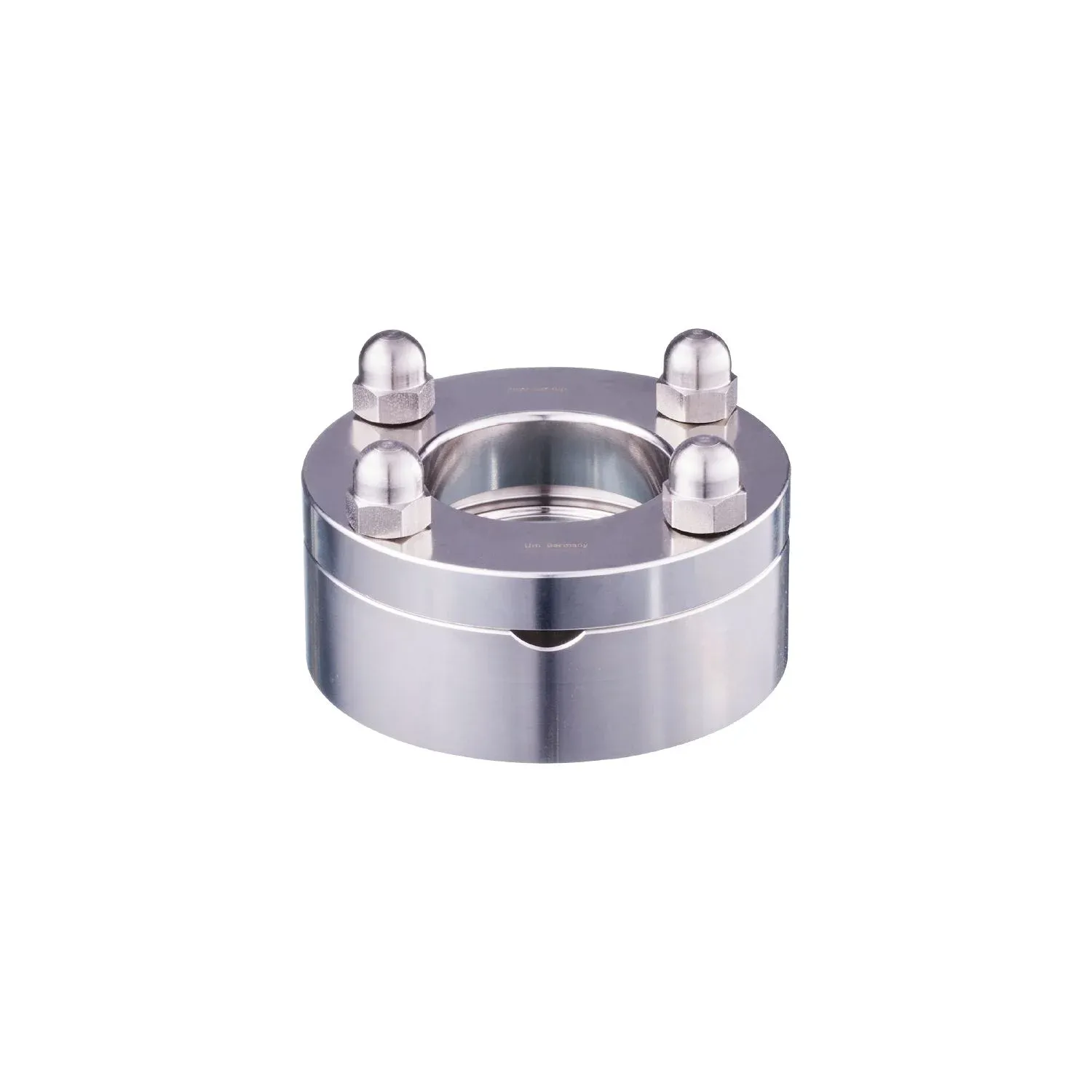

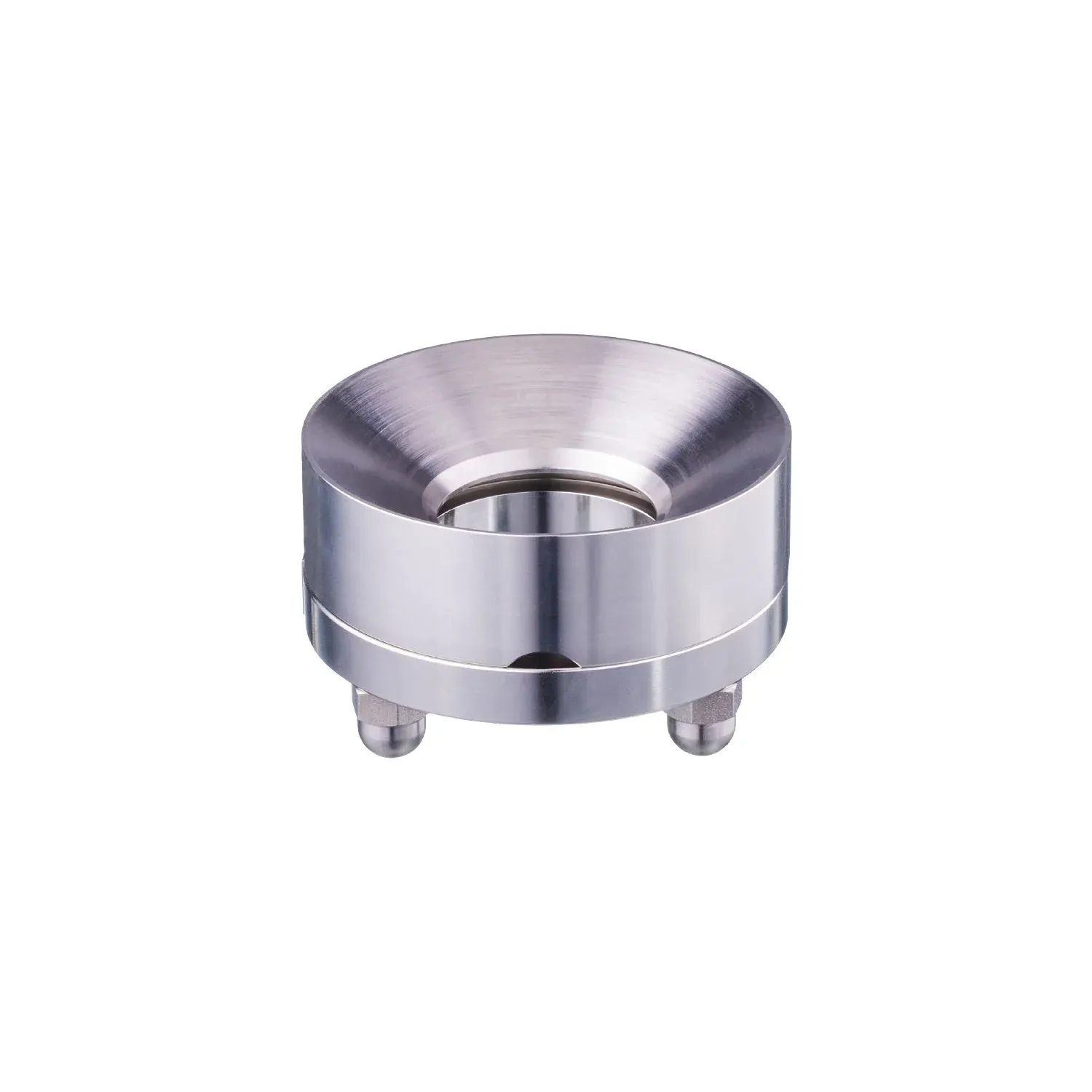

Welding adapter for process sensors
For use in industrial and hygienic applications
Robust stainless steel design for use in harsh industrial environments
Specification
Application
| Pressure rating | 7 bar 0.7 MPa |
|---|---|
| 7 bar | 0.7 MPa |
| Note on pressure rating | Valid if the sensor is properly clamped/screwed using the half-shells and a seal which is suitable for the application. |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 1097.4 |
|---|---|
| Dimensions[mm] [mm] | Ø 85 |
| Materials (wetted parts) | stainless steel (316L/1.4435) surface characteristics: Ra < 0,5 µm / Rz = 4 µm |
| Sensor connection | Clampadapter DIN 32676 (ISO 2852) Da=50,5; für DIN Abdichtung DN40 mit Di=38 |
| Process connection | Einschweißadapter D=85mm |
Accessories
| Items supplied | welding adapter: 1 x (Ø 85 mm), DIN 32676 (ISO 2852) half shell: 1 x (Ø 85 mm), stainless steel (316L/1.4404) set screws: 4 x (M8 x 25 mm), DIN 796; stainless steel (316L/1.4404) cap nut: 4 x M8, DIN 1587 ; stainless steel (316L/1.4404) |
|---|---|
| Accessory required | Sealing nach DIN 32676 (ISO 2852) |
Remarks
| Pack quantity | 1 pcs. |
|---|
