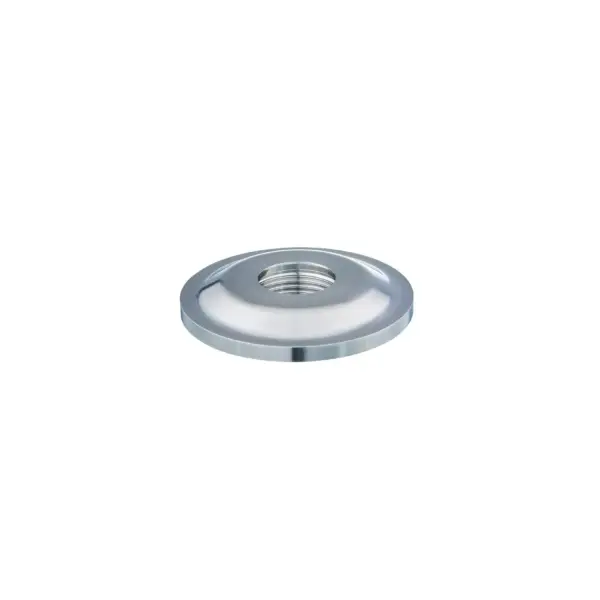

IFM E30529
E30529
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

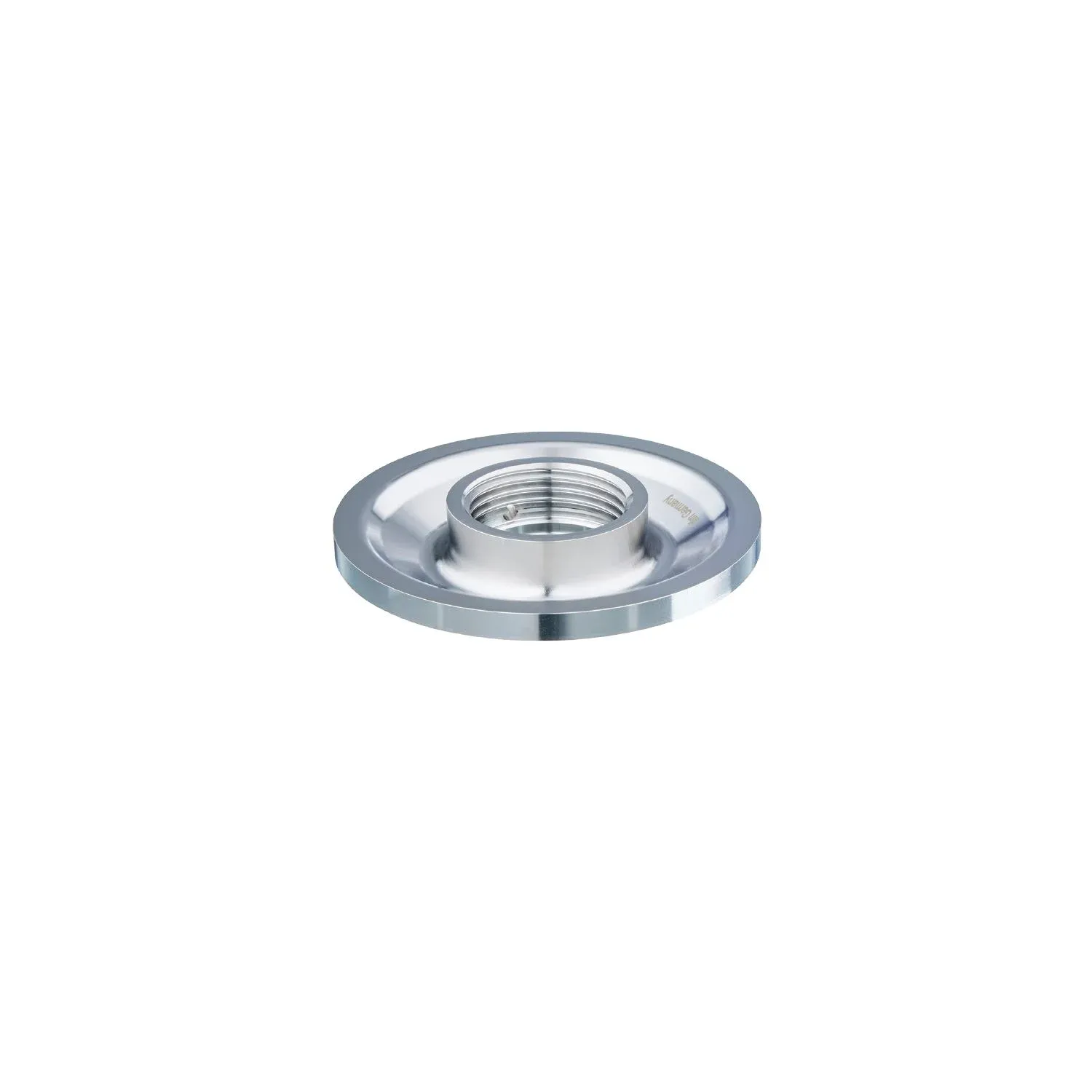

Welding adapter for tank bottom and wall
For use in industrial and hygienic applications
Robust stainless steel design for use in harsh industrial environments
High pressure rating
Specification
Application
| Design | with leakage port |
|---|---|
| Installation | recommended for wall thickness <= 6 mm and for unfavourable welding conditions |
| Pressure rating | 16 bar 5 MPa |
| 16 bar | 5 MPa |
| Note on pressure rating | for the connection sensor - adapter |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 289.7 |
|---|---|
| Materials (wetted parts) | welding adapter: stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm |
| Sensor connection | G 1 internal thread Aseptoflex Vario |
| Process connection | welding adapter Ø 85 mm |
| Sealing | Gasket |
Accessories
| Items supplied | O-rings: 1 x (24 x 2 mm), EPDM, E30054 |
|---|---|
| Accessories (optional) | O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123 Welding mandrel, E30452 welding mandrel, water-cooled, E30532 leak test, E30530 grinding protection, E30162 |
Remarks
| Pack quantity | 1 pcs. |
|---|
