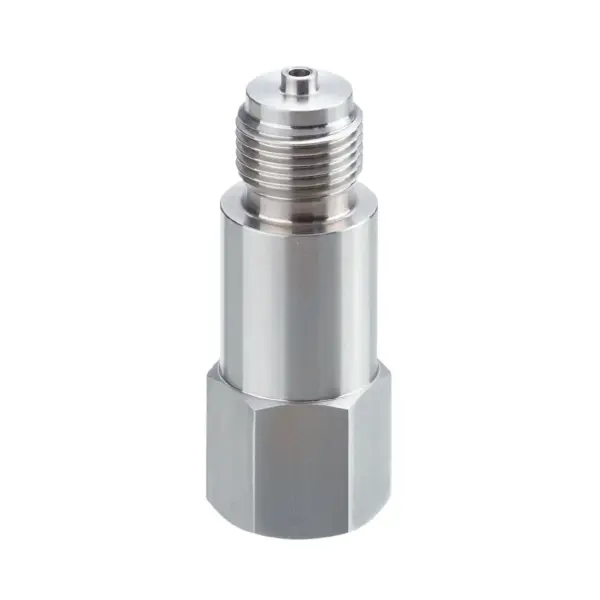

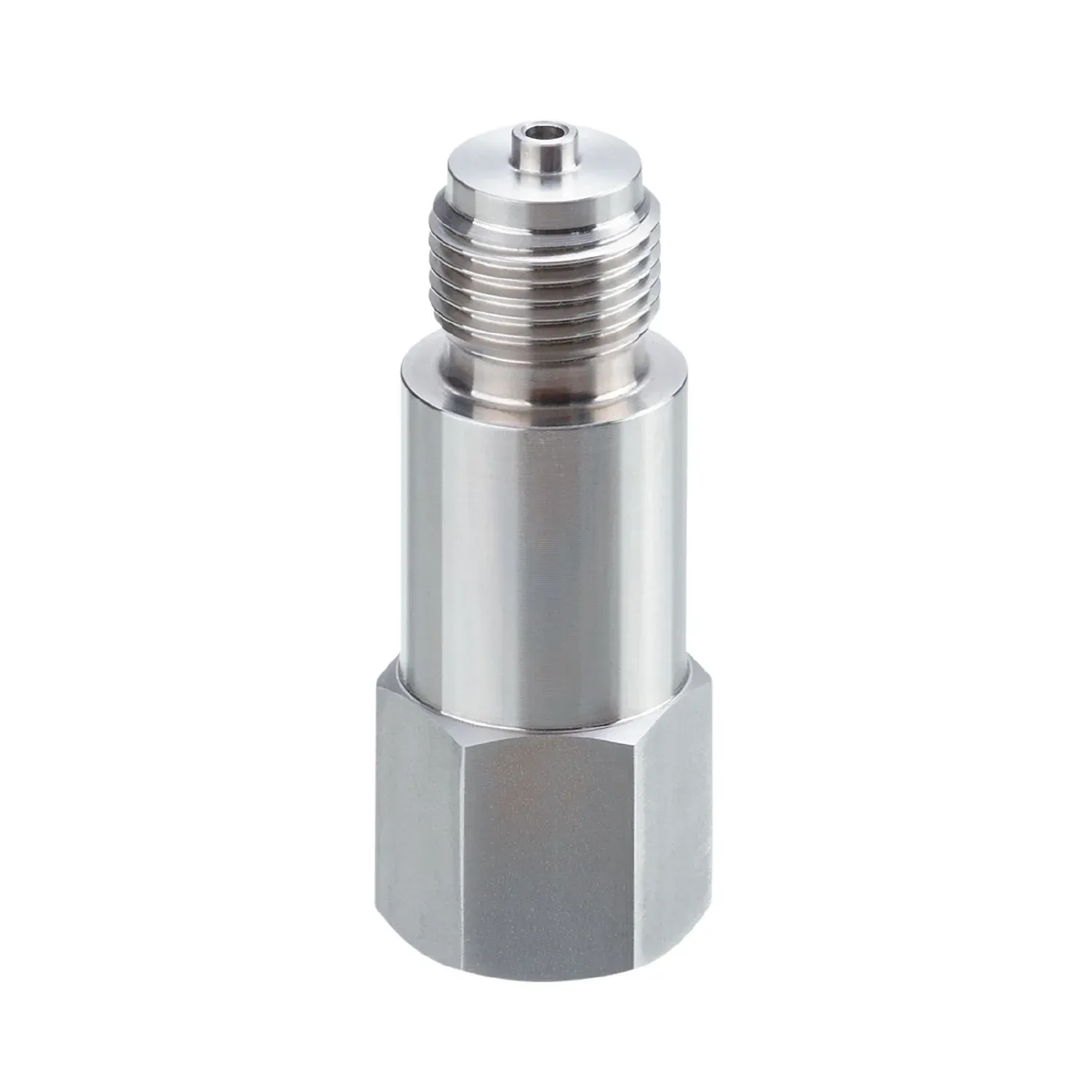

IFM E30507
E30507
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Efficient protection against too much heat
Specification
Application
| Design | Zwischenstück DIN 16281 - 20 St |
|---|---|
| Application | industrial application |
| Installation | for mounting on an even surface |
| Pressure rating | 400 bar 40 MPa |
| 400 bar | 40 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 248 |
|---|---|
| Materials | stainless steel (316Ti/1.4571) |
| Sensor connection | G 1/2 internal thread |
| Process connection | threaded connection G 1/2 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
