Description

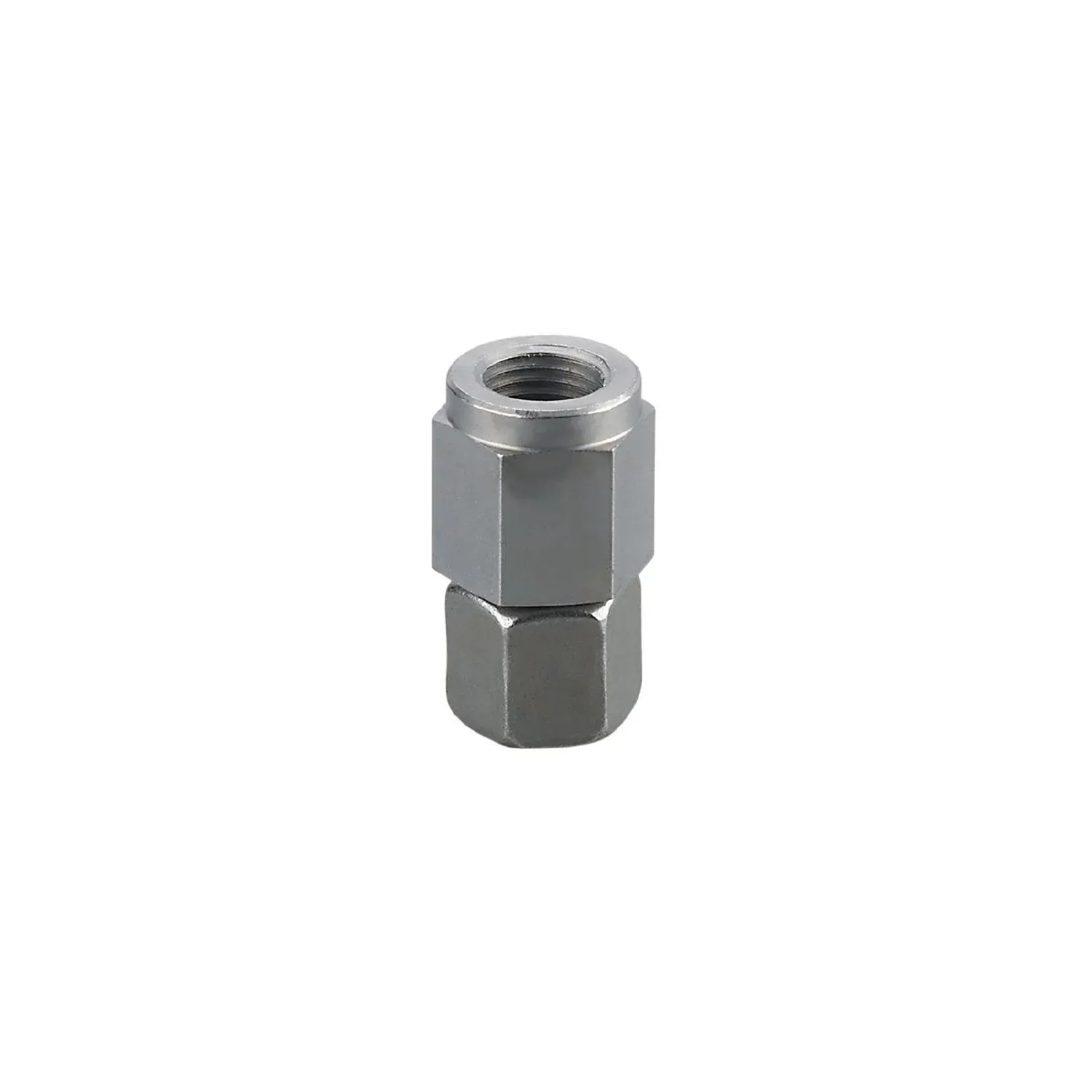

Suitable for mounting on pipes or even surfaces
High pressure rating
Corrosion-resistant Zn-Ni coating
Specification
Application
| Application | oil hydraulics applications; Enables orientation of the sensor |
|---|---|
| Installation | for pipe mounting; (Conduit adapter M14 x 1,5 required) |
| Pressure rating | 315 bar 31.5 MPa |
| 315 bar | 31.5 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 60 |
|---|---|
| Materials | steel (1.0718 / 12L13); stainless steel (303/1.4305); steel (1.0216); FKM; Zn-Ni coating |
| Sensor connection | G 1/4 external thread |
| Process connection | threaded connection M14 x 1,5 internal thread taper seal:L8 |
| Sealing | double-edge sealing ring |
Remarks
| Pack quantity | 1 pcs. |
|---|
