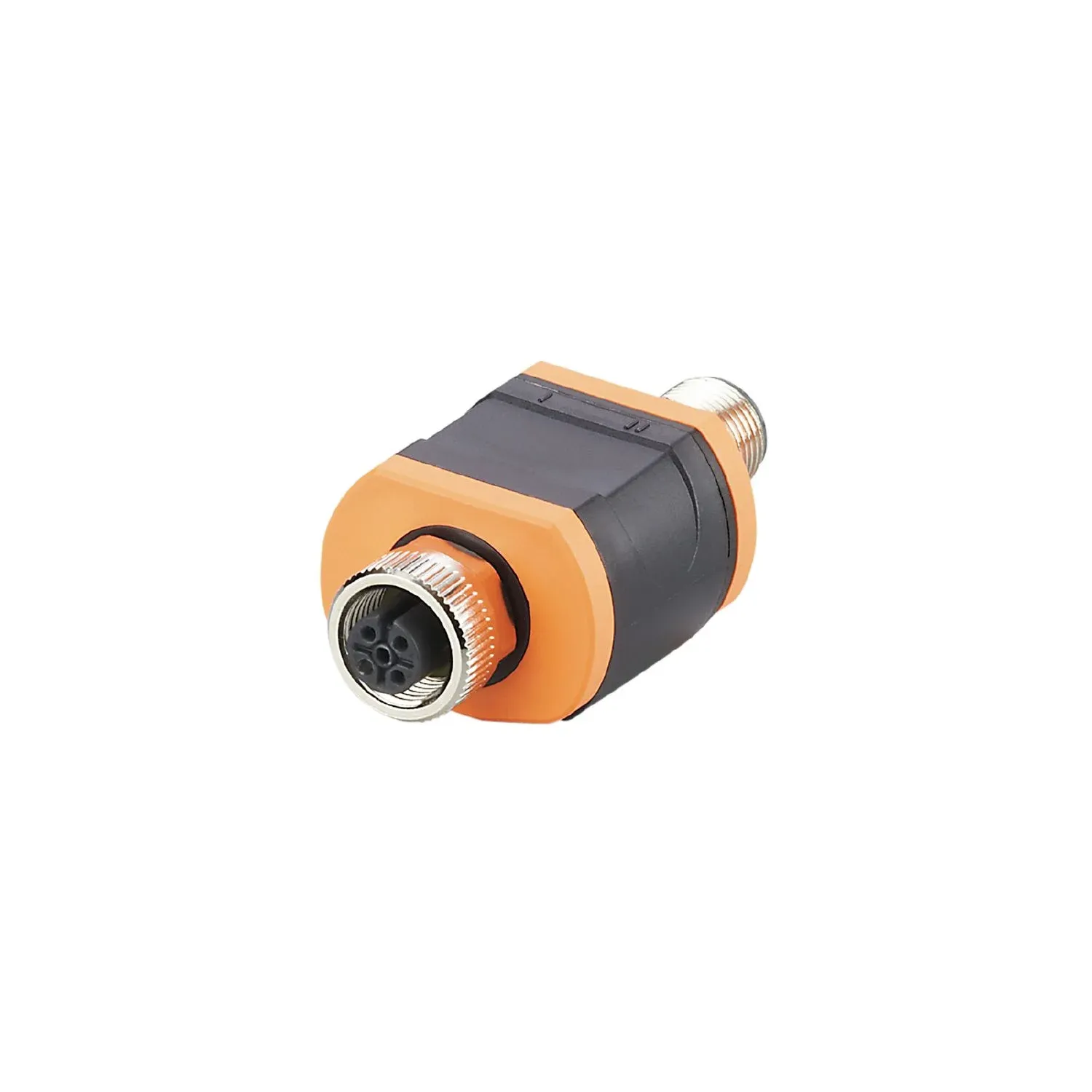

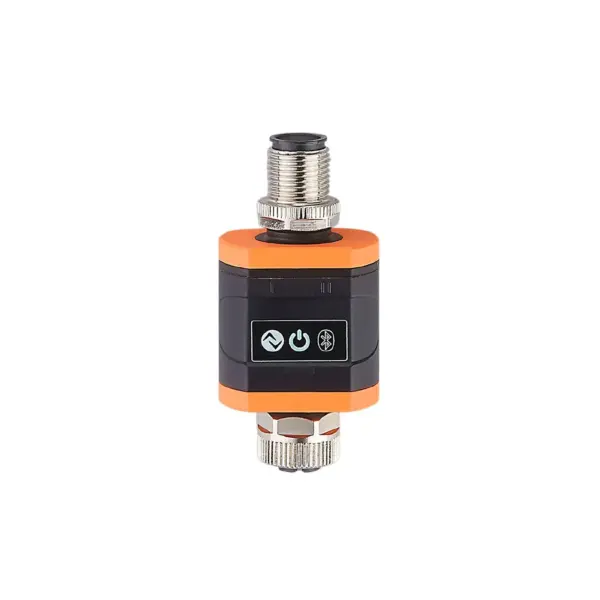

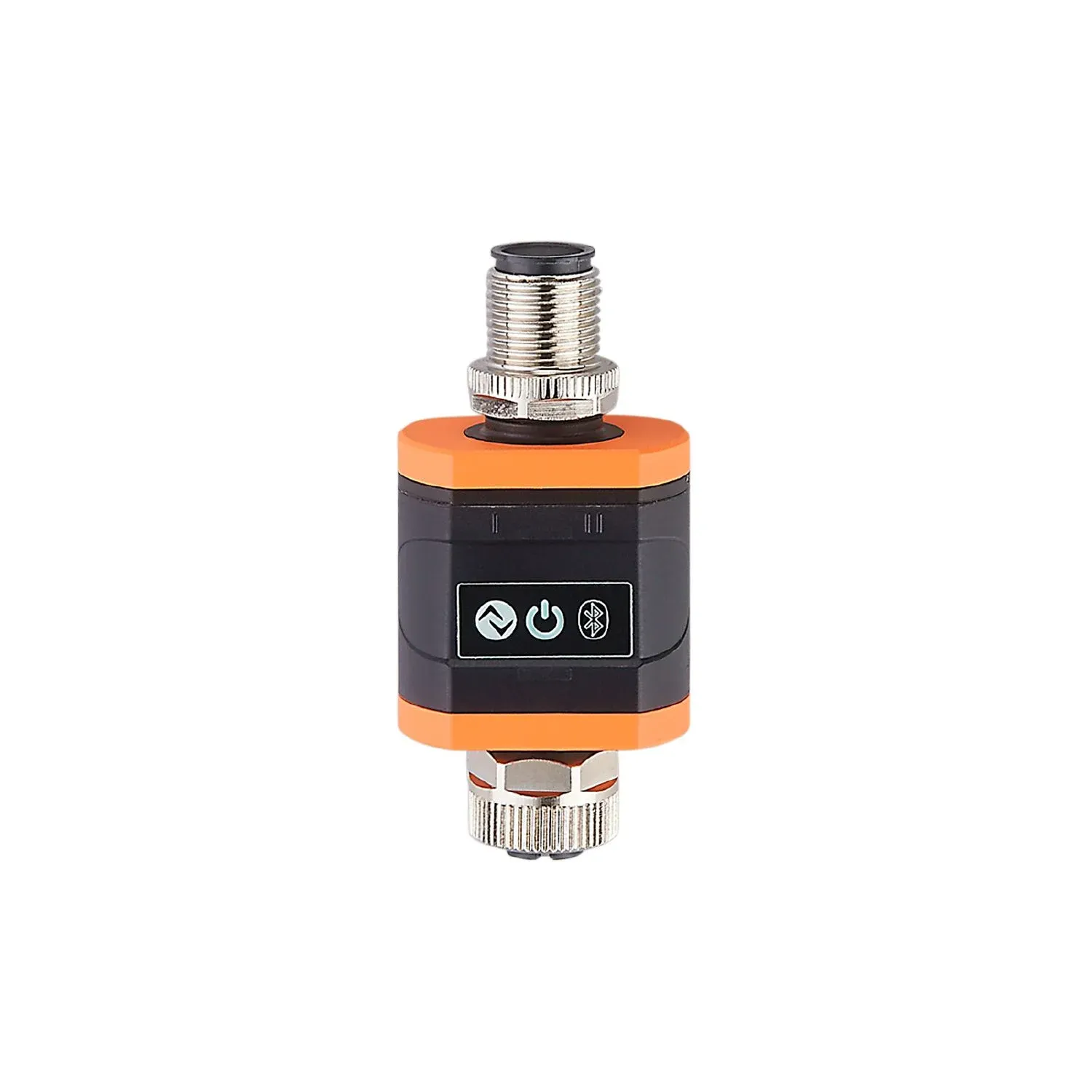

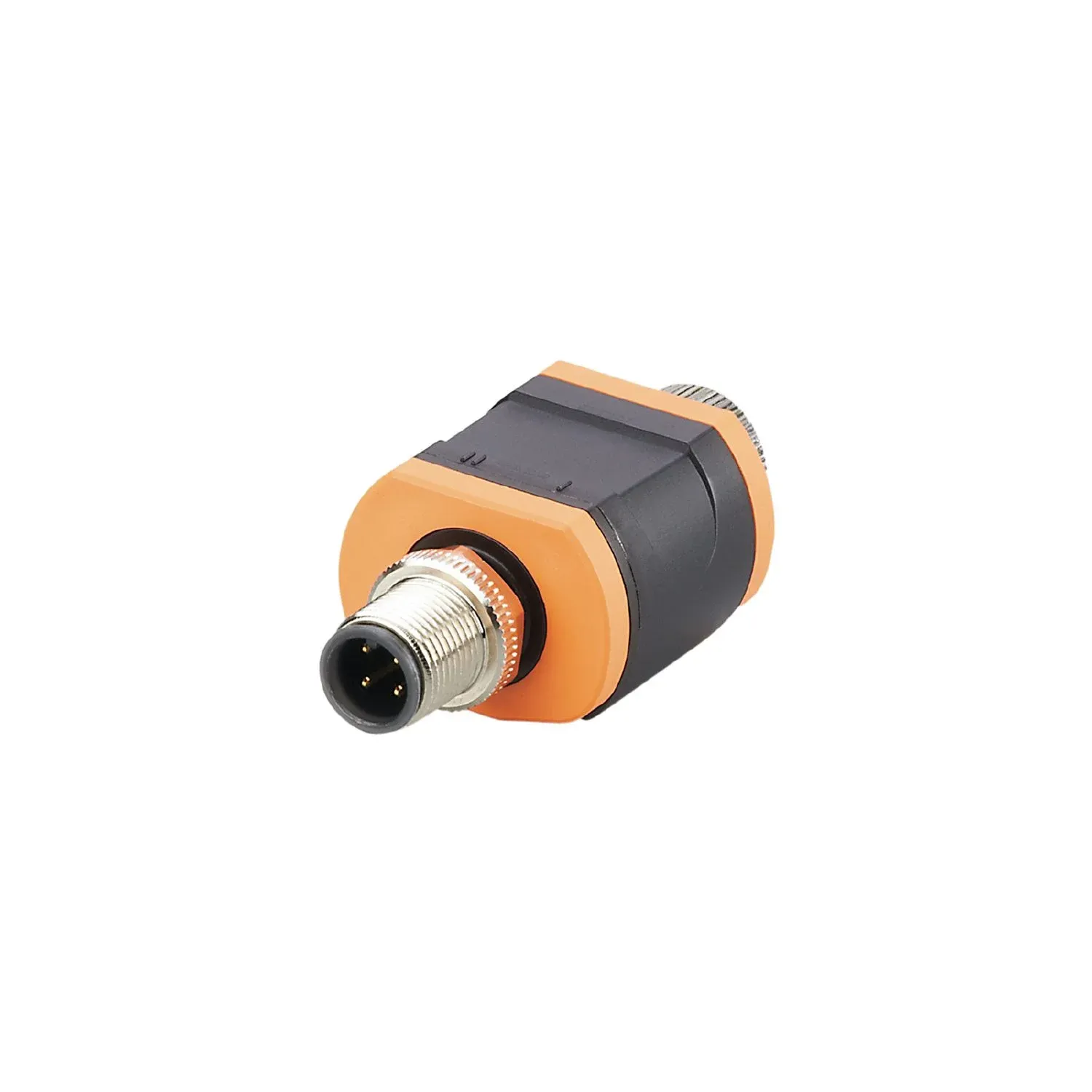

IFM E30446
E30446
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Transmission of all process values and events from a sensor
ifm moneo blue free of charge for iOS and Android
Extensive history memory
Transparent for IO-Link masters
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; Namibia; Brazil; China; India; Singapore; Mexico; South Africa; Malaysia; Vietnam; Chile; Thailand; Taiwan; South Korea; Indonesia; Argentina |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Current consumption[mA] [mA] | 30...830; (24 V DC, full load) |
| Protection class | III |
| Reverse polarity protection | yes |
Software / programming
| Parameter setting options | process value recording |
|---|
Interfaces
| Communication interface | IO-Link; Bluetooth |
|---|---|
| Transmission standard | BLE 4.0; BLE 4.1; BLE 4.2; EDR 2.0; EDR 2.1 |
| Frequency band | 2,4 - 2,482 GHZ |
| Transmission power[mW] [mW] | 10; (10 dBm) |
| Range | typ. 20 m |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.0; 1.1 |
| SDCI standard | IEC 61131-9 |
| Required master port type | A |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Protection | IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 15 g (6 ms) |
| DIN EN 60068-2-27 | 15 g (6 ms) |
| Vibration resistance | DIN EN 60068-2-6 2 g (10...150 Hz) |
| DIN EN 60068-2-6 | 2 g (10...150 Hz) |
| MTTF[years] [years] | 285 |
| UL approval | Ta max. 55 °C File number UL E205959 |
| Ta | max. 55 °C |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 88.5 |
|---|---|
| Dimensions[mm] [mm] | 63 x 30 x 24 |
| Materials | stainless steel (316L/1.4404); brass (2.0401); PA; PBT; FKM; Sealing: FKM; |
Displays / operating elements
| Display | operation 1 x LED, green IO-Link 1 x LED, yellow Bluetooth 1 x LED, blue |
|---|---|
| operation | 1 x LED, green |
| IO-Link | 1 x LED, yellow |
| Bluetooth | 1 x LED, blue |
Remarks
| Remarks | the device complies with overvoltage category II |
|---|---|
| Pack quantity | 1 pcs. |
