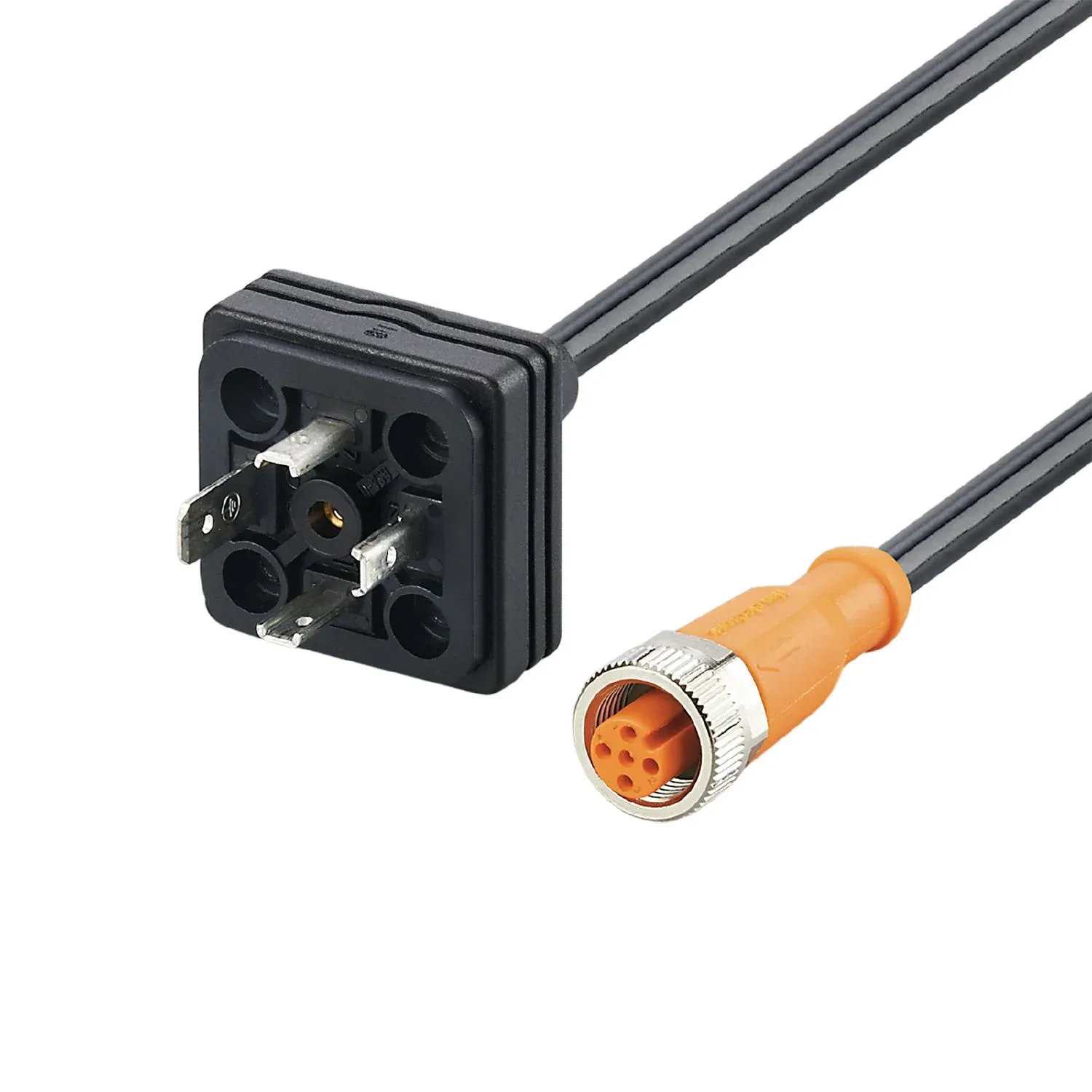

IFM E30436
E30436
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of valves in the field
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Robust rectangular connector
Specification
Application
| Special feature | Free from silicone; Halogen-free |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 50 AC / < 60 DC |
|---|---|
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight[g] [g] | 66.7 |
|---|---|
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Sealing material | FKM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x valve type A DIN, straight; Moulded body: TPU, black; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm |
|---|
Electrical connection
| Cable | 0.4 m, PUR, Halogen-free, black, Ø 5.5 mm; 5 x 0.50 mm² |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Sealing: FKM; Tightening torque: 0.6...1.5 Nm |
|---|
