IFM E30430
E30430
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For displaying up to four process values
Brightness, orientation and background colour adaptable

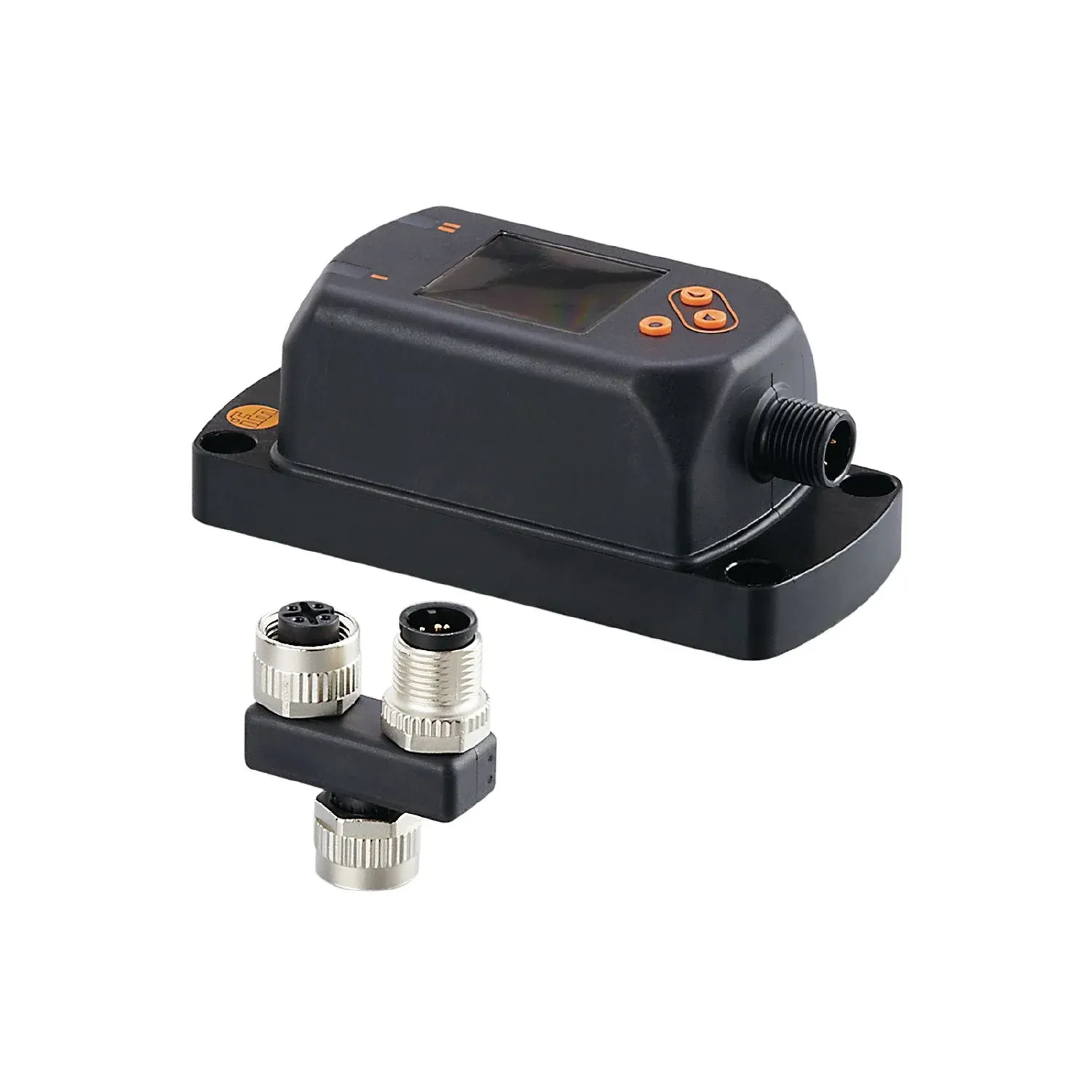

Supplied with Y-splitter
For displaying the process values of a connected IO-Link sensor
Easy integration between sensor and IO-Link master
Specification
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | display of all process values of a connected sensor |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 47 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Software / programming
| Parameter setting options | display, indication |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 11.2 |
| Supported DeviceIDs | default 694 |
| default | 694 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...60 |
|---|---|
| Storage temperature[°C] [°C] | -20...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 5 g (11 ms) |
| DIN EN 60068-2-27 | 5 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 5 g (10...50 Hz) |
| DIN EN 60068-2-6 | 5 g (10...50 Hz) |
| MTTF[years] [years] | 397 |
Mechanical data
| Weight[g] [g] | 204 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 86 x 45 x 39.5 |
| Materials | stainless steel (316L/1.4404); PC; PBT-GF30; PPS; FKM |
Displays / operating elements
| Display | colour display 1,44", 128 x 128 pixels 2 x LED, yellow |
|---|
Accessories
| Items supplied | Y-splitters:, E12481 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; Contacts: gold-plated |
|---|
