Description

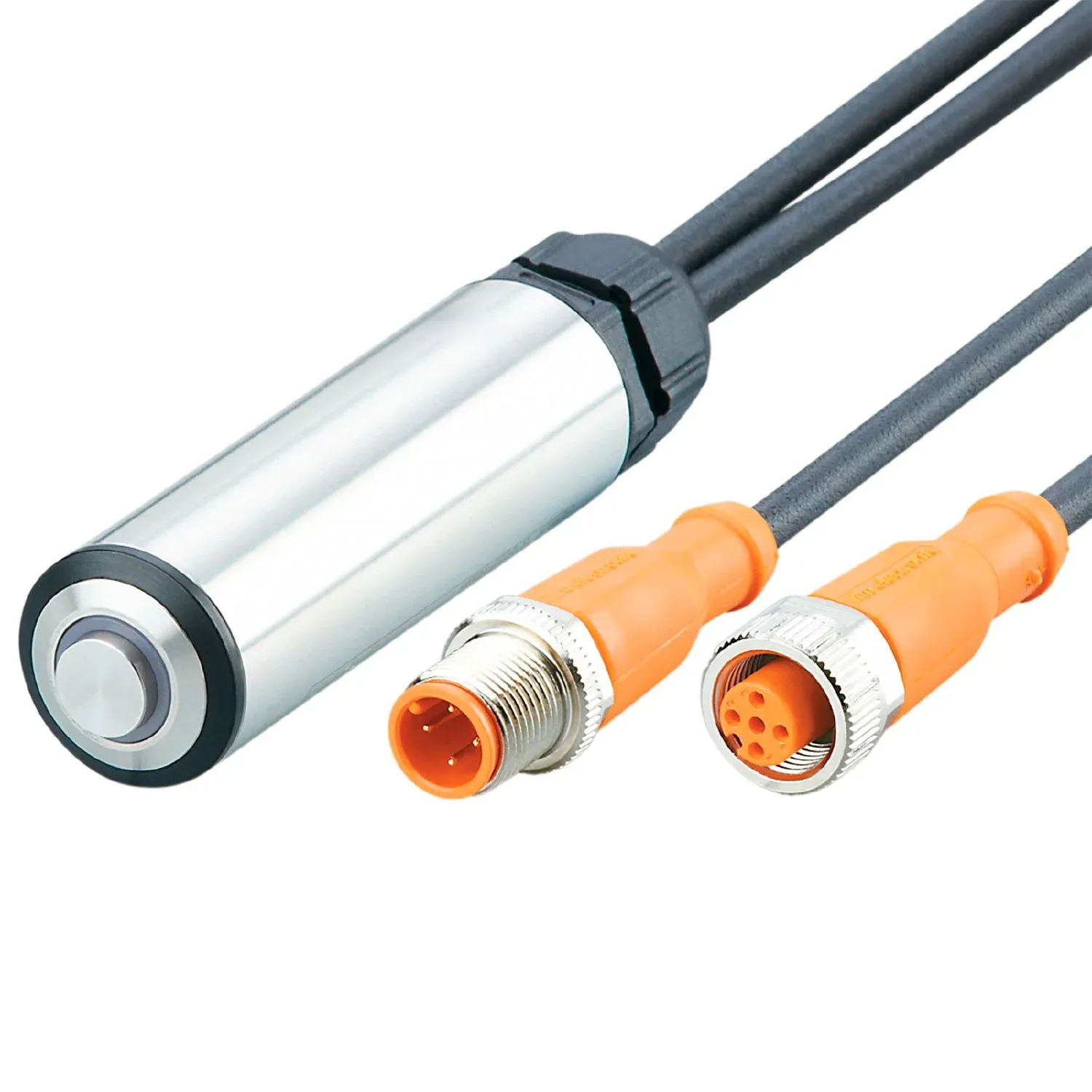

For an easy zero-point calibration of pressure sensors
Specification
Application
| Design | for sensors PM1xxx |
|---|
Electrical data
| Operating voltage[V] [V] | 20...30 DC |
|---|
Outputs
| Max. load[Ω] [Ω] | (Ub - 14 V) / 21.5 mA |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| MTTF[years] [years] | 2927 |
|---|
Mechanical data
| Weight[g] [g] | 227 |
|---|---|
| Materials | stainless steel (316L/1.4404); PA; FFKM; PBT |
Remarks
| Remarks | If a teach button is connected, no IO-Link communication is possible. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 0.9 m, PUR; Maximum cable length: 30 m; between sensor and teach button |
|---|
