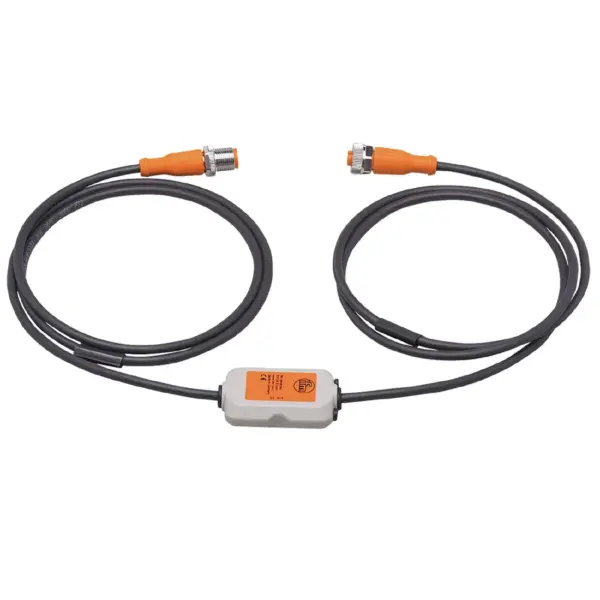

IFM E30406
E30406
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable supply of sensors with 24 V DC operating voltage
Use in electric systems with a very low operating voltage
Easy connection via the tried and tested M12 connector
Specification
Electrical data
| Nominal voltage DC[V] [V] | 9...27 |
|---|---|
| Current consumption[mA] [mA] | < 500; (sensor: 24 VDC, max. 125 mA) |
| Protection class | III |
| Reverse polarity protection | yes |
| Number of output circuits | 1 |
Outputs
| Output voltage[V] [V] | 24 |
|---|---|
| Short-circuit protection | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 40 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 15 kV AD EN 61000-4-3 HF radiated 30 V/m (80...1000 MHz) EN 61000-4-4 Burst 2 kV coupling clamp EN 61000-4-6 HF conducted 10 V (0,15...80 MHz) |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 15 kV AD |
| EN 61000-4-3 HF radiated | 30 V/m (80...1000 MHz) |
| EN 61000-4-4 Burst | 2 kV coupling clamp |
| EN 61000-4-6 HF conducted | 10 V (0,15...80 MHz) |
Mechanical data
| Weight[g] [g] | 151 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 58 x 36 x 14.4 |
| Materials | PBT-GF20 |
| Sealing material | FKM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket
| Cable | 1 m, PUR |
|---|---|
| Connector | 1 x M12; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM |
