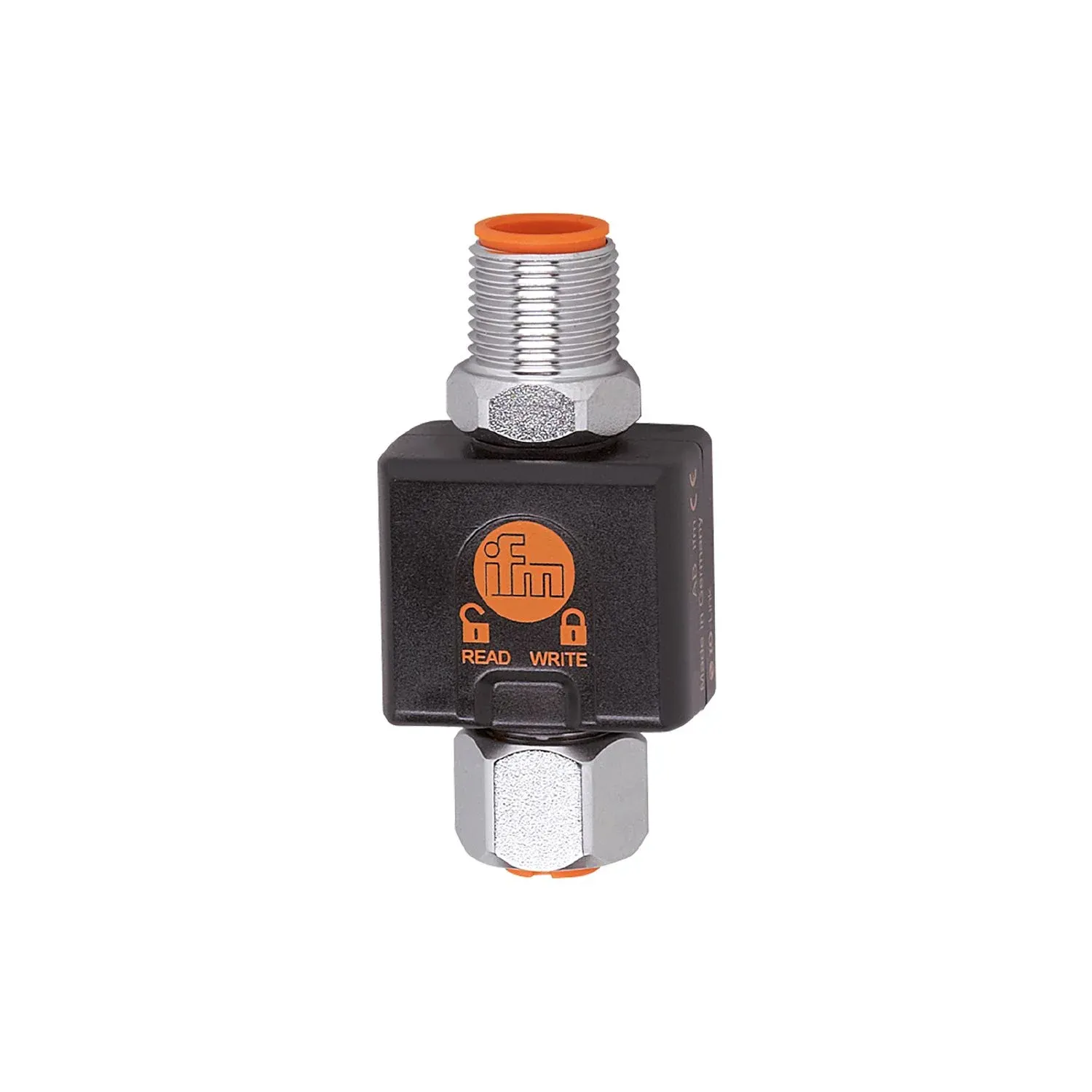

IFM E30398
E30398
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy connection via the tried-and-tested M12 connector
Re-writable as often as desired
Uncomplicated replacement of a faulty unit
Quick and easy parameter setting of IO-Link sensors
User-friendly copying and saving of sensor data
Specification
Electrical data
| Operating voltage[V] [V] | 18...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 35 |
| Min. insulation resistance[MΩ] [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Output signal | IO-Link |
|---|---|
| Electrical design | PNP |
| Max. voltage drop switching output DC[V] [V] | 0.5 |
| Permanent current rating of switching output DC[mA] [mA] | 500; (briefly: 2 A / 50 ms) |
| Type of short-circuit protection | depending on the connected sensor |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 2.5 |
| SDCI standard | IEC 61131-9 (Draft) |
| Number of ports class A | 1 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 61000-6-2 |
|---|---|
| Shock resistance | DIN IEC 68-2-27 50 g 11 ms |
| DIN IEC 68-2-27 | 50 g 11 ms |
| Vibration resistance | DIN IEC 68-2-6 20 g (10...2000 Hz) |
| DIN IEC 68-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 655.69 |
Mechanical data
| Weight[g] [g] | 116.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 52 x 25 x 18 |
| Materials | PA PACM 12 (TROGAMID); PET |
| Sealing material | FKM |
Displays / operating elements
| Display | operation 2 x LED, green |
|---|---|
| operation | 2 x LED, green |
Remarks
| Remarks | only for positive switching sensors The memory plug acts as master if it is connected with a sensor. The memory plug acts as device if it is used with the service program. operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Moulded body: TPU; Locking: stainless steel (316L/1.4404); Sealing: FKM |
|---|
