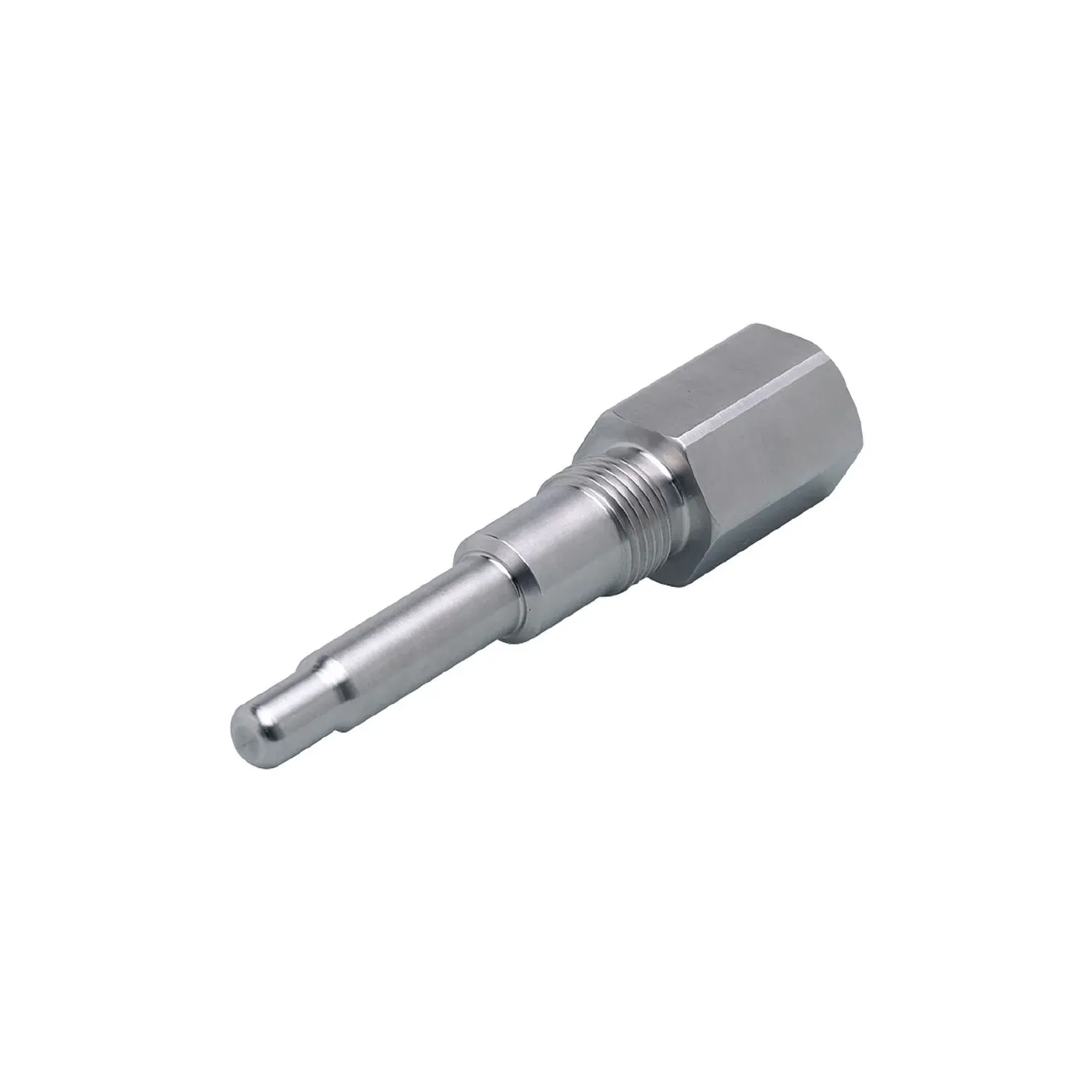

IFM E30393
E30393
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Efficient long-time protection of the temperature sensor
Protection against aggressive media and high process pressures
Easy replacement of the temperature sensor during operation
For use in hygienic applications
Approved for the requirements of the food and beverage industry
Specification
Application
| Design | for temperature sensors TA34xx, TAA431, TAD191 |
|---|---|
| Pressure rating | 300 bar 30 MPa |
| 300 bar | 30 MPa |
Measuring/setting range
| Probe length L[mm] [mm] | 53 |
|---|
Mechanical data
| Weight[g] [g] | 172.9 |
|---|---|
| Materials | stainless steel (316L/1.4404) |
| Tightening torque[Nm] [Nm] | 30...50 |
| Sensor connection | G 1/2 sealing cone Ø 8,2 mm |
| Process connection | G 1/2 external thread sealing cone |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.6 µm |
Remarks
| Pack quantity | 1 pcs. |
|---|
