Description

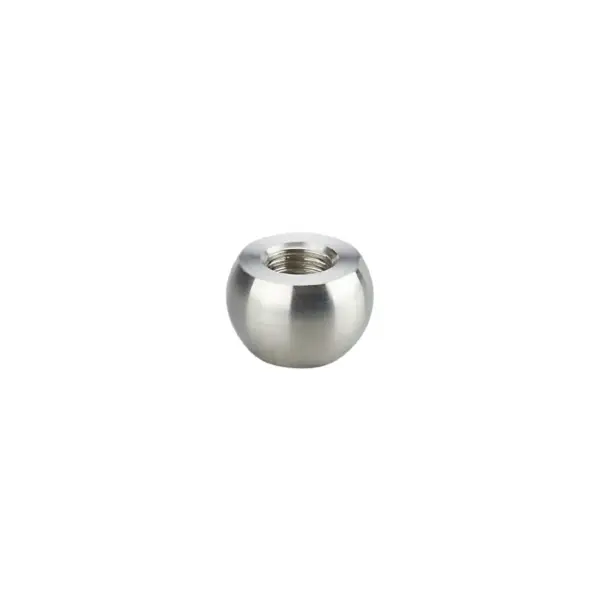

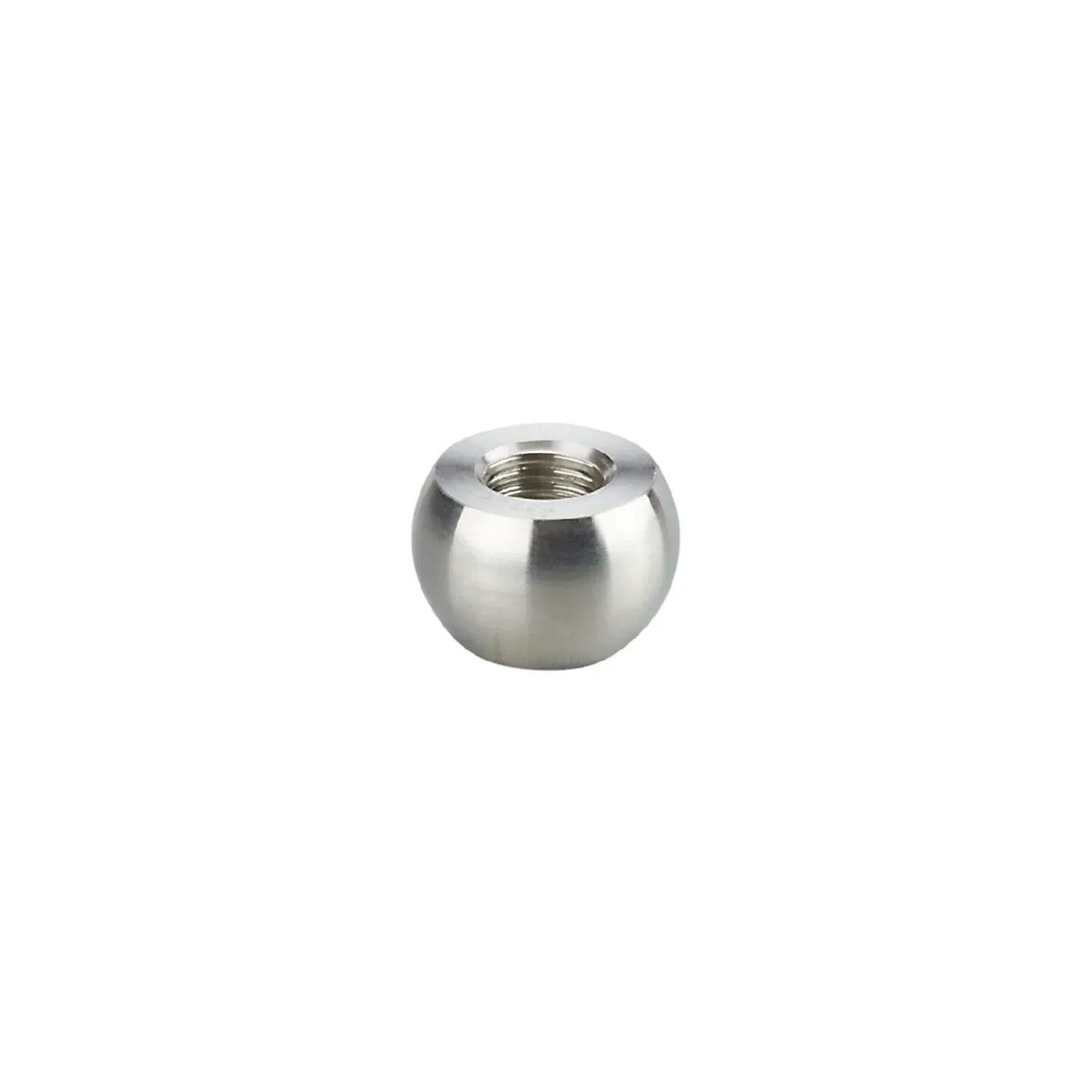

Welding adapter for process sensors
For use in industrial and hygienic applications
Robust stainless steel design for use in harsh industrial environments
Specification
Application
| Medium temperature[°C] [°C] | < 250 |
|---|---|
| Pressure rating | 50 bar 5 MPa |
| 50 bar | 5 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 45.1 |
|---|---|
| Materials (wetted parts) | stainless steel (316L/1.4404) |
| Tightening torque[Nm] [Nm] | 5...20 |
| Sensor connection | M12 x 1,5 sealing cone |
| Process connection | welding adapter Ø 25 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
