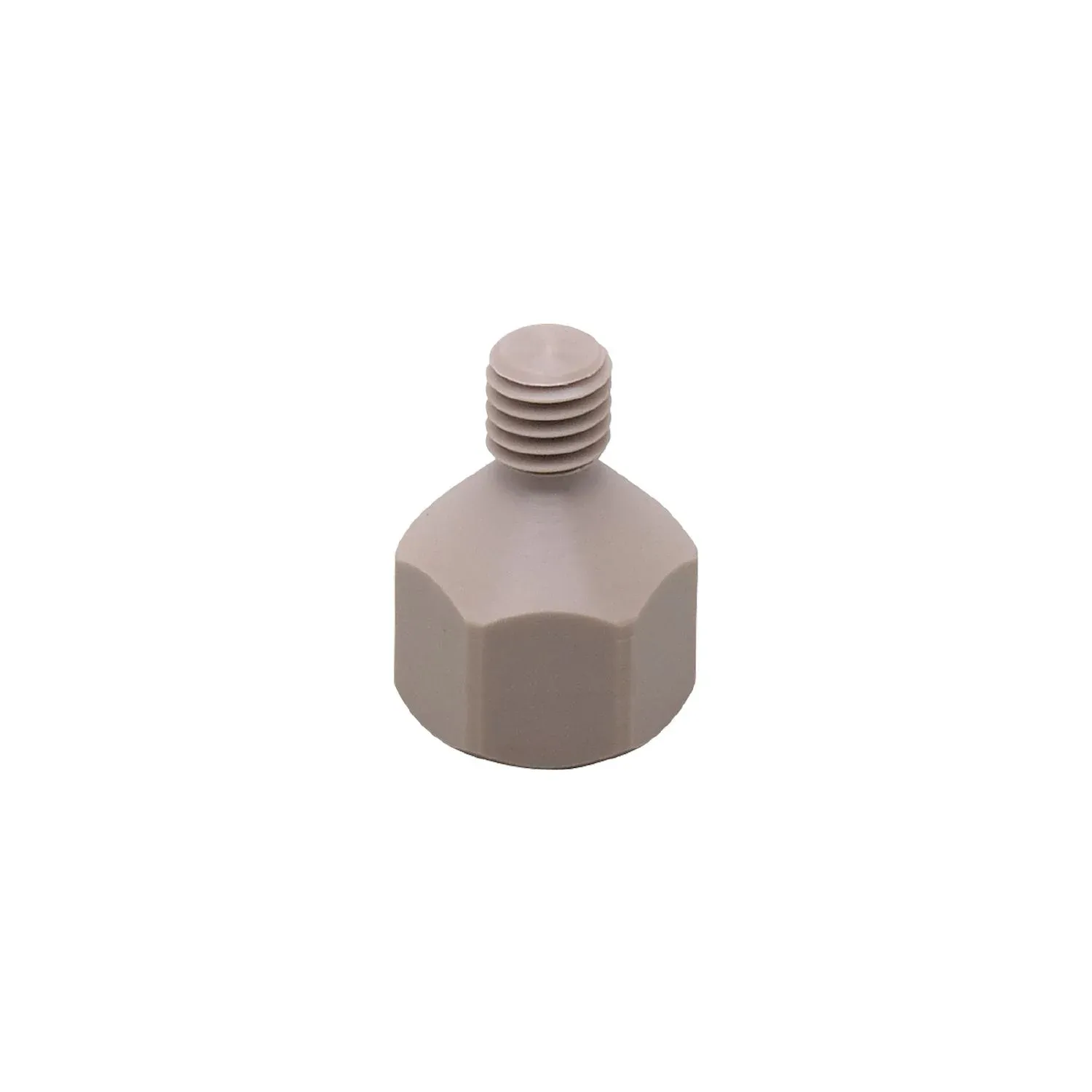

IFM E30132
E30132
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable mounting on the machine surface
For use with non-standard ground
Specification
Application
| Design | for vibration sensors VSA001, VSA101, VSA201 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -30...260 |
|---|---|
| Note on ambient temperature | briefly: 300 °C |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 8.2 |
|---|---|
| Dimensions[mm] [mm] | M8 |
| Thread designation | M8 |
| Materials | PEEK |
| Sensor connection | M8 x 1,25 internal thread |
| Process connection | threaded connection |
Remarks
| Remarks | When necessary, secure the thread with industrially compatible glue, e.g. DELO - ML 5249 |
|---|---|
| Pack quantity | 1 pcs. |
