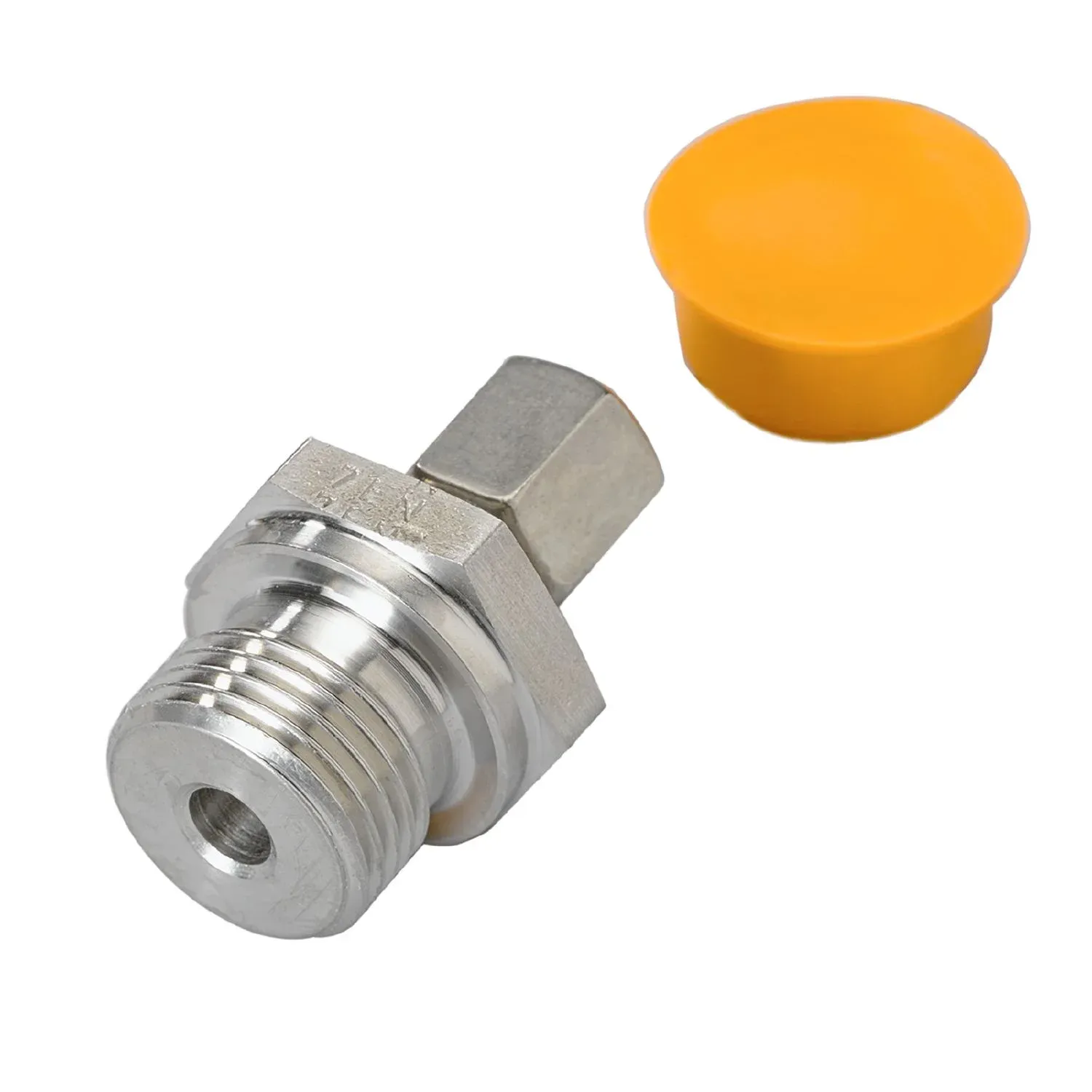

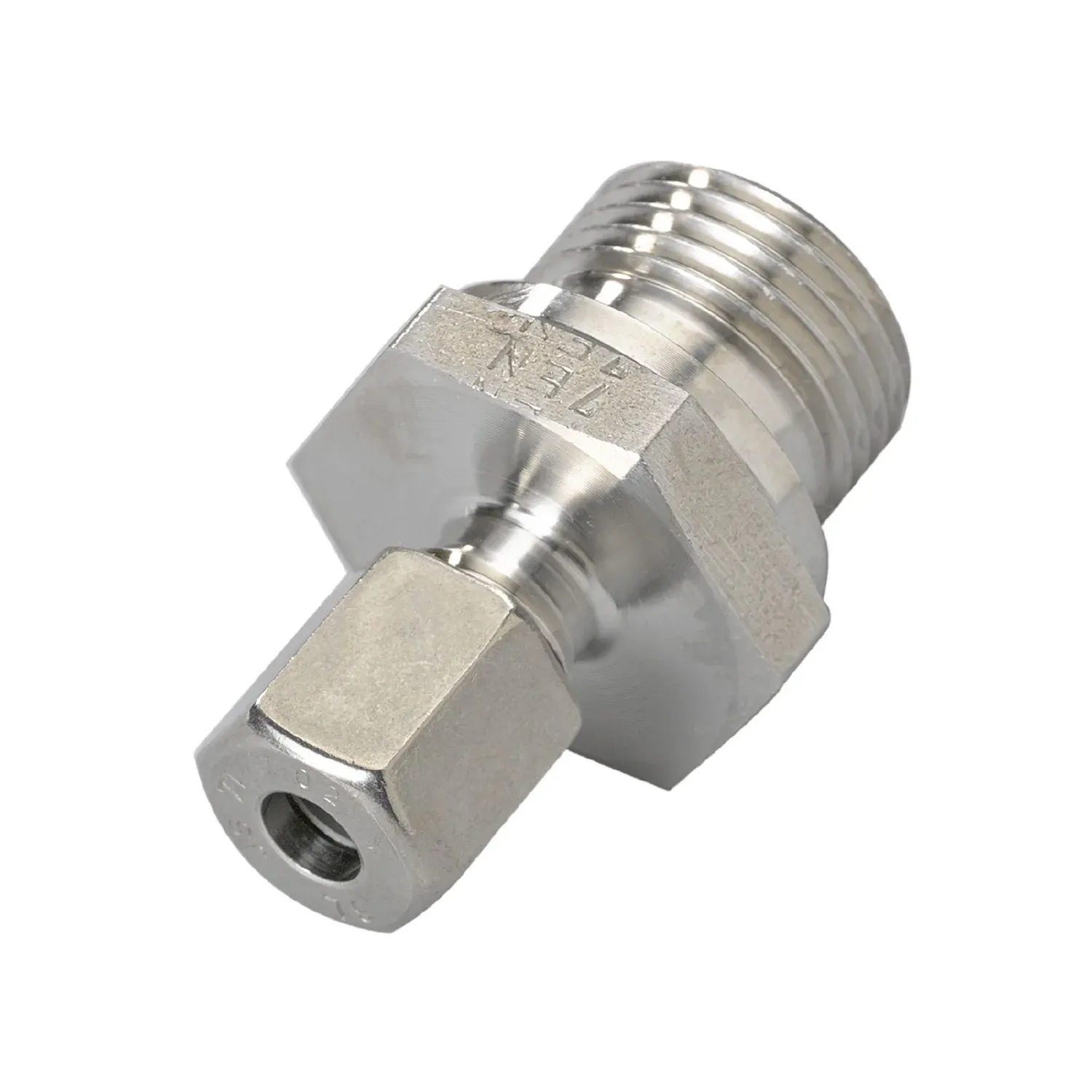

IFM E30047
E30047
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Quick and easy mounting of temperature sensors
User-friendly setting of the requested immersion depth of the sensor
Robust design for use in harsh industrial environments
High pressure rating
Specification
Application
| Installation | Progressive ring fitting |
|---|---|
| Pressure rating | 50 bar 5 MPa |
| 50 bar | 5 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 94.2 |
|---|---|
| Materials | stainless steel (316Ti/1.4571) |
| Sensor connection | Ø 6 mm |
| Process connection | threaded connection G 1/2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
