IFM E30025
E30025
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns

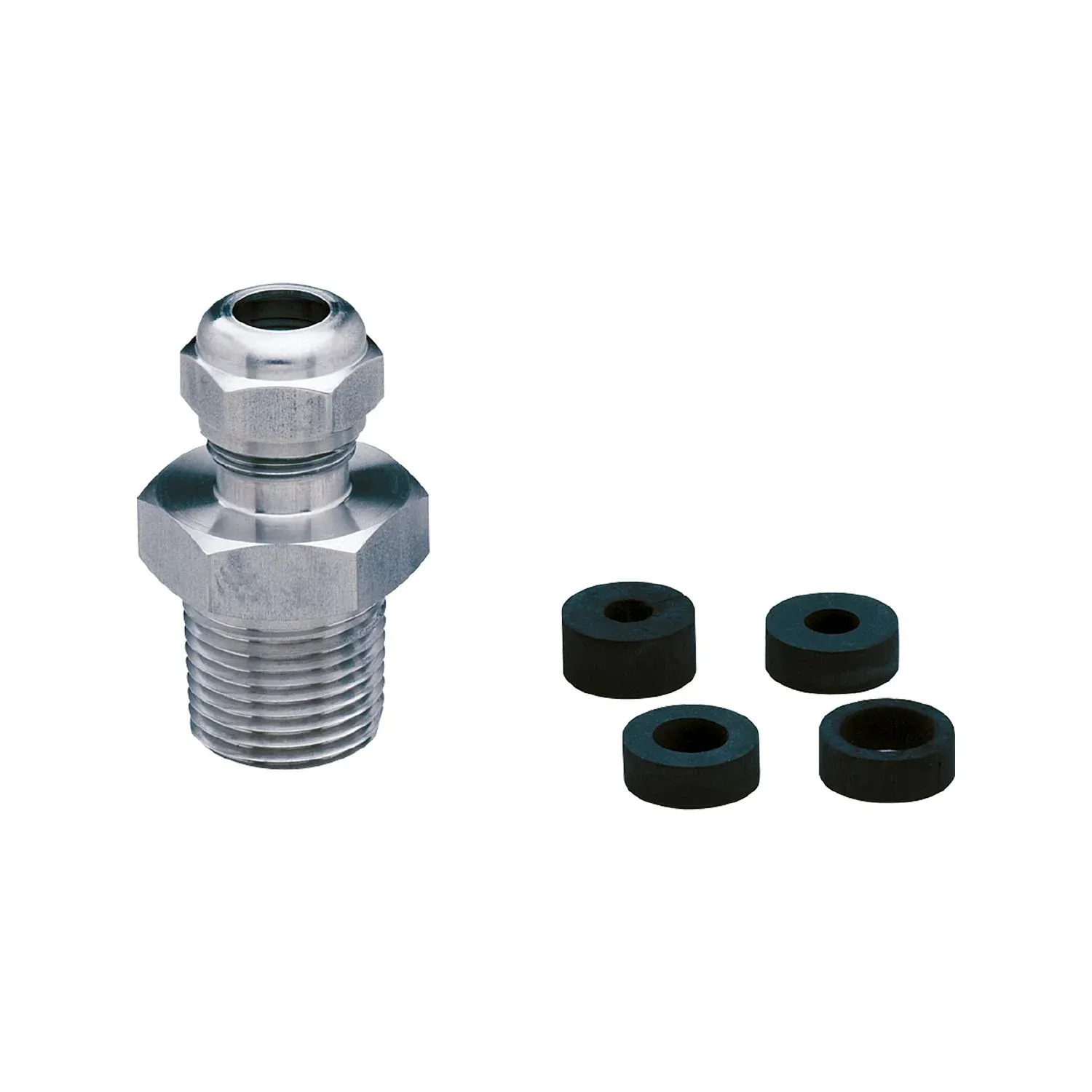

Description
For the installation of temperature sensors in containers and pipes
Easy, quick and secure mounting
Stable fixing by screwing in
Use in liquids and gases
Easy adjustment of the immersion depth of the sensor
Specification
Application
| Design | for temperature sensors |
|---|---|
| Application | for industrial applications |
| Installation | Clamp fitting |
| Media | liquids and gases |
| Pressure rating | 1 bar 0.1 MPa |
| 1 bar | 0.1 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 98.4 |
|---|---|
| Materials | stainless steel (303/1.4305); FKM |
| Sensor connection | Ø 6 mm / Ø 8 mm / Ø 10 mm |
| Process connection | threaded connection 1/2" NPT |
Accessories
| Items supplied | O-rings: 3 x Ø 10 mm, 8 mm, 6 mm, closed O-rings: 1, slotted |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
