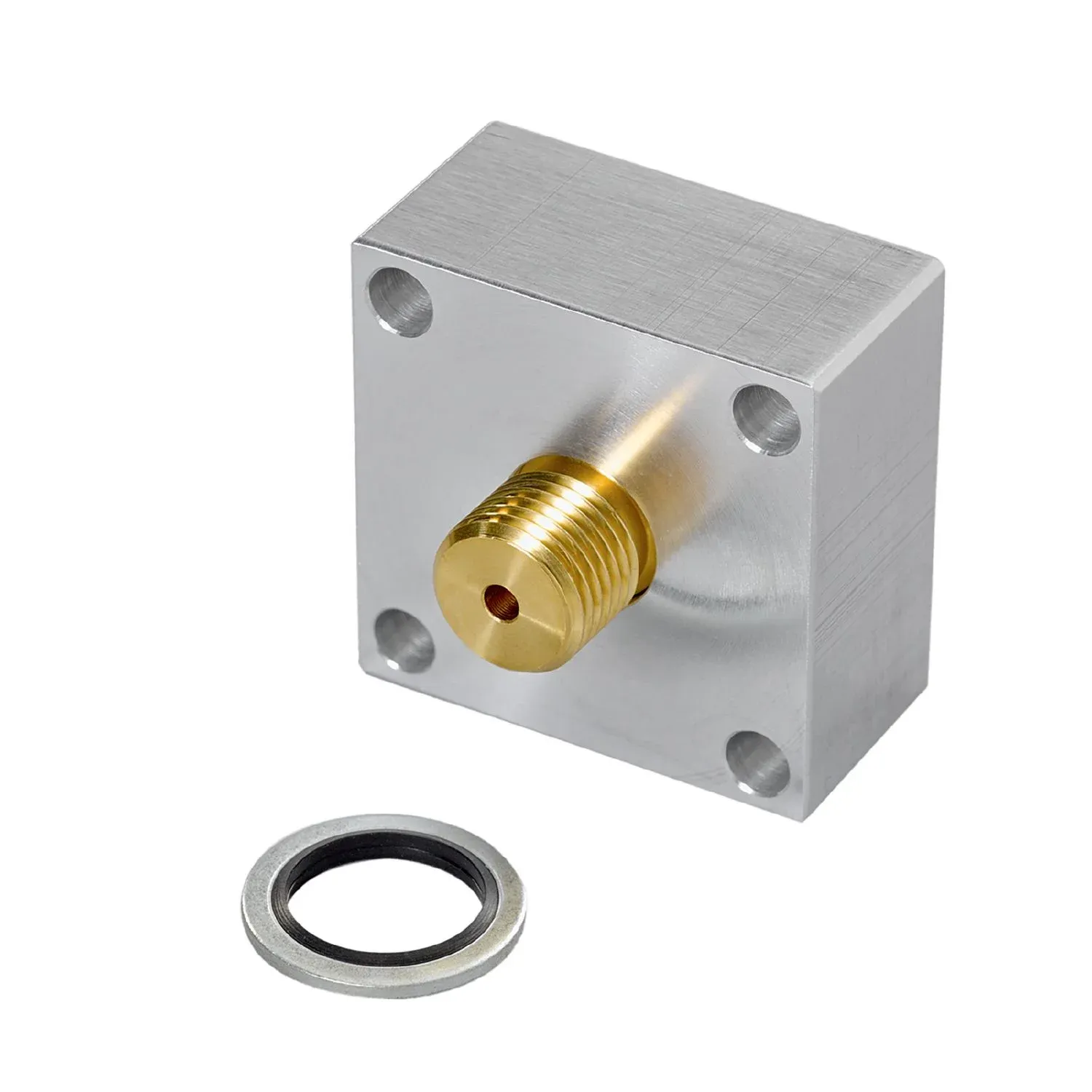

IFM E30003
E30003
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Quick and easy mounting
High pressure rating
Robust design for use in harsh industrial environments
Good sealing due to O-ring
Specification
Application
| Pressure rating | 200 bar 20 MPa |
|---|---|
| 200 bar | 20 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 119 |
|---|---|
| Materials | Sealing: NBR; flange: aluminium; hollow screw: brass |
| Sensor connection | G 1/4 |
| Process connection | flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
