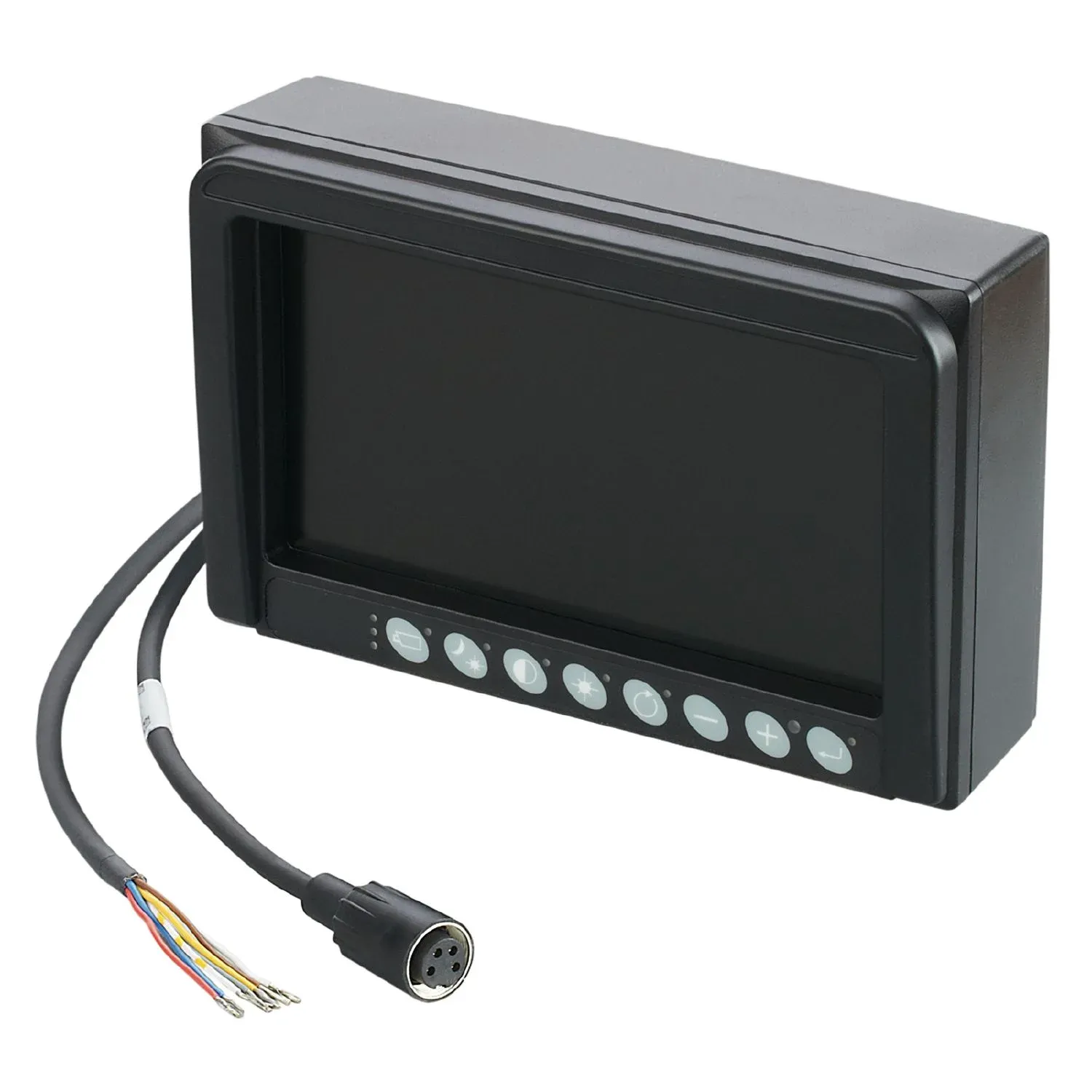

IFM E2M231
E2M231
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The parameters of the device are set via the integrated keys
For processing input signals from analogue cameras
Specification
Application
| Application | Monitor for up to 1 O2M2xx / O3M2xx camera |
|---|
Electrical data
| Operating voltage[V] [V] | 12...32 DC; (± 10%) |
|---|---|
| Overvoltage protection | yes |
| Power supply for camera[mA] [mA] | 2000; (± 10%) |
Inputs
| Video input | 1 Vtt, 75 Ω, PAL 50 Hz, 4,43 MHz color sub carr |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...125 |
| Storage humidity[%] [%] | < 75; (relative humidity) |
| Shelf life[MON] [MON] | 24 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance | 15,3 G(rms) Frequency range 24...2000 Hz PSD 0,04...0,10 g²/Hz |
|---|
Mechanical data
| Weight[g] [g] | 1022.5 |
|---|---|
| Materials | housing: ABS black; fixture: aluminium black |
Displays / operating elements
| Display type | colour display |
|---|---|
| Display size | 7" |
Remarks
| Remarks | Spannungsbereich auf dem Typenschild beachten Ältere Versionen des Gerätes verwenden einen Spannungsbereich von 18...30 VDC (Revisionsnr. AA) |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - socket
| Cable | 2 m |
|---|---|
| Connector | 1 x M16; coding: A |
