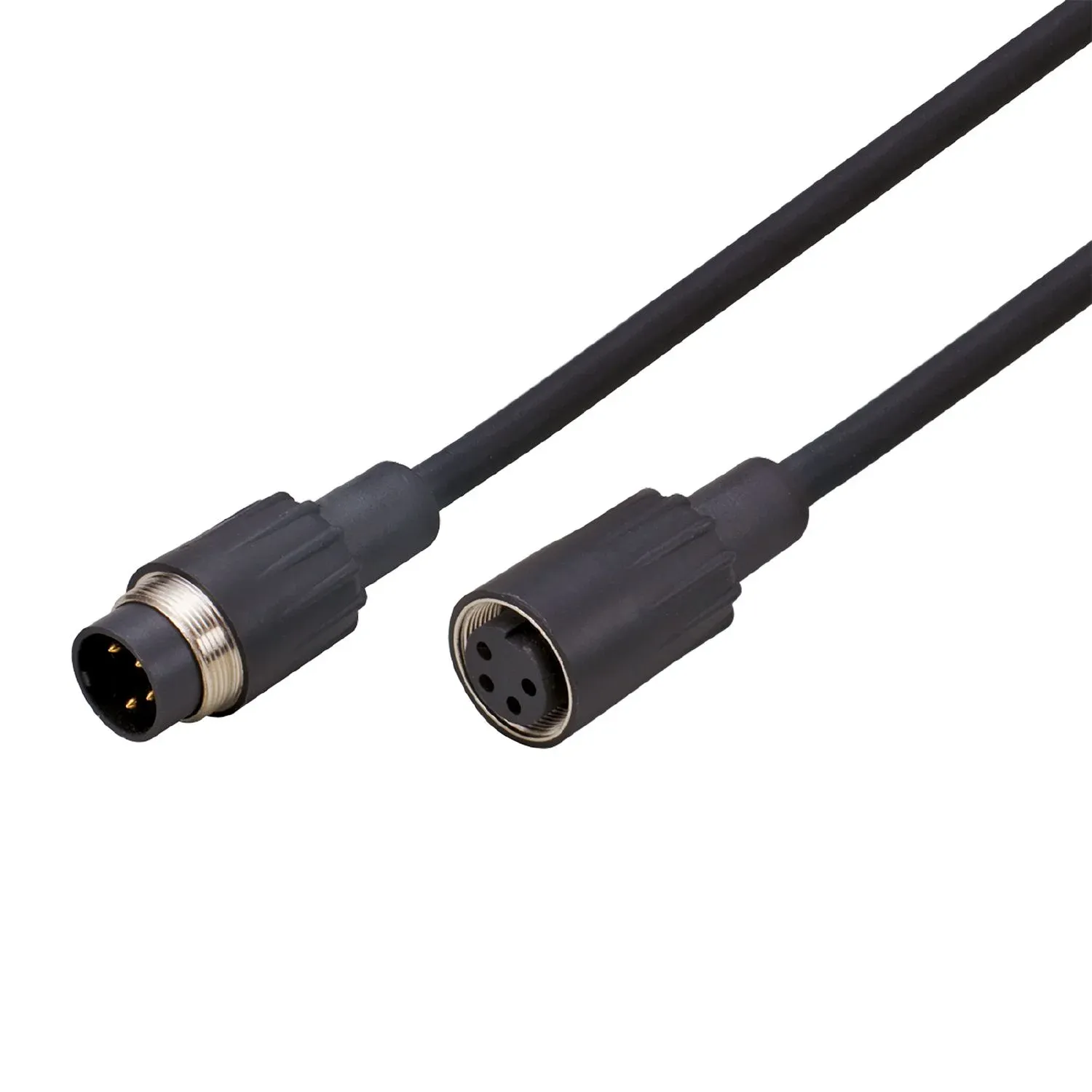

IFM E2M203
E2M203
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of mobile cameras with video output
Gold-plated contacts for reliable signal transmission
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Good electromagnetic compatibility thanks to shielded cable
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Design | camera with video output O2M20x |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 60 DC |
|---|---|
| Protection class | II |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -45...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 290 |
|---|---|
| Materials | housing: PVC; Sealing: EPDM |
| Material nut | PVC |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M16, straight; coding: A; Locking: PVC; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
Electrical connection
| Cable | 5 m, PVC, black, Ø 6 mm; 3 x 0.34 mm² / AWG 22 + 1 x 0.11 mm² / AWG 26 |
|---|
Electrical connection - socket
| Connector | 1 x M16, straight; coding: A; Locking: PVC; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
