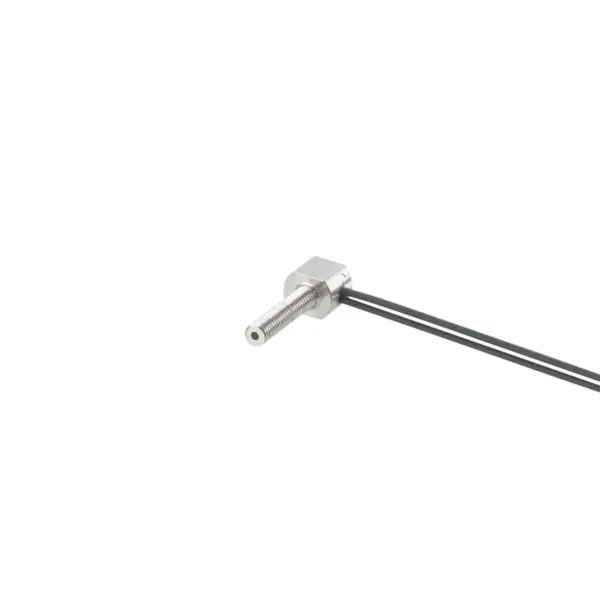

IFM E21320
E21320
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Operation as diffuse reflection sensor
For cutting to size
Small bending radius
Easy mounting and safe fixing
Specification
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OBF; OCF; OO50 |
|---|---|
| Range of fibre optics[mm] [mm] | 30 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|
Mechanical data
| Weight[g] [g] | 31.1 |
|---|---|
| Version of sensing head | angled |
| Sensing head thread | M3 |
| Sensing head length[mm] [mm] | 18.5 |
| Total length[mm] [mm] | 2000 |
| Min. bending radius[mm] [mm] | 1 |
| Core diameter[mm] [mm] | 0.5 |
| Fibre material | PMMA |
| Fibre head material | stainless steel (303/1.4305) |
| Fibre sheath material | PE |
Accessories
| Items supplied | hexagon nuts: 2 x M3 tooth lock washers: 2 Adapter: 1 x OCF |
|---|---|
| Accessories (optional) | Cutter for fibre optics:, E20600 |
Remarks
| Pack quantity | 1 pcs. |
|---|
