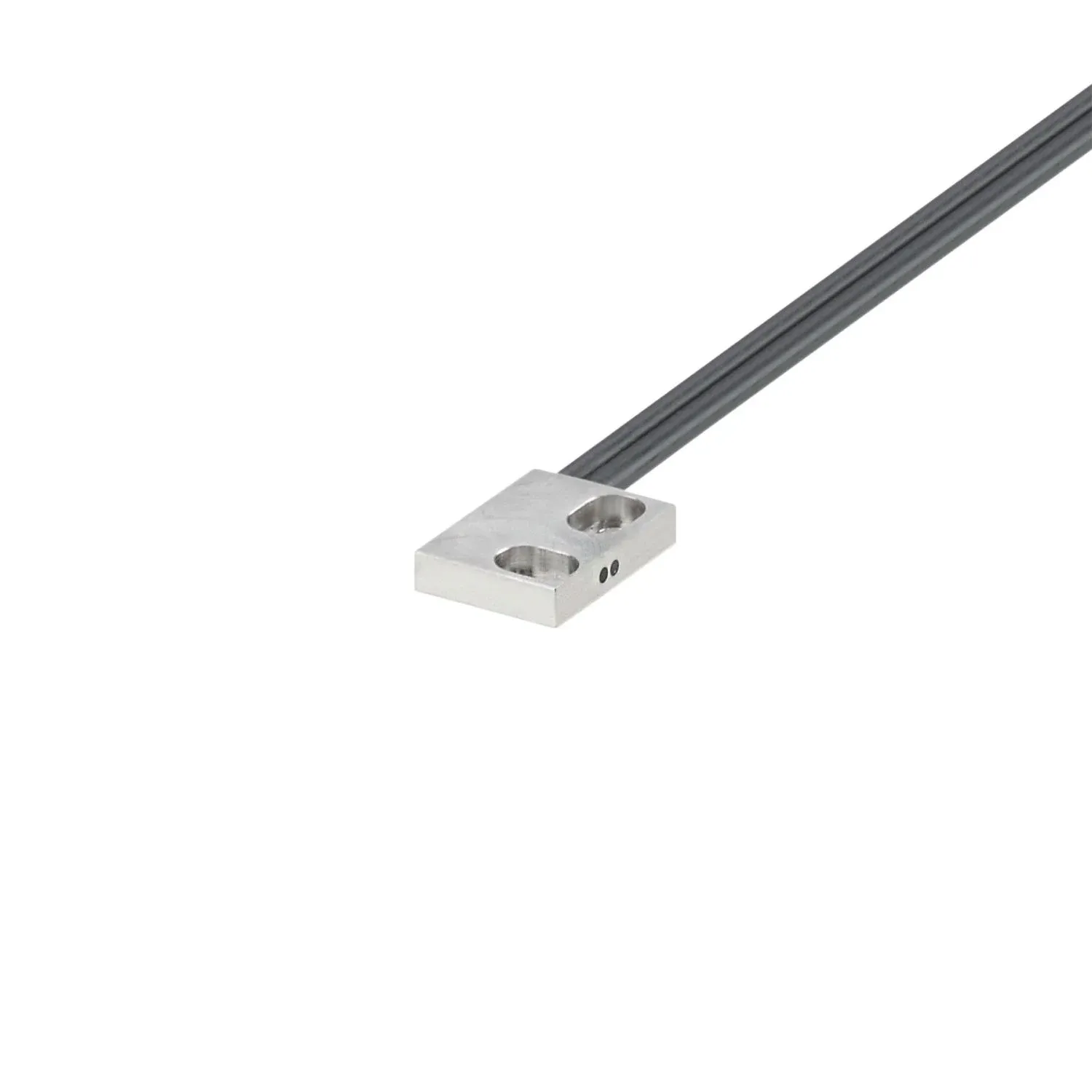

IFM E21312
E21312
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly flat rectangular design
For installation in places where access is difficult
For cutting to size
Operation as diffuse reflection sensor
Specification
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OBF; OCF; OO50 |
|---|---|
| Range of fibre optics[mm] [mm] | 150 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|
Mechanical data
| Weight[g] [g] | 45.2 |
|---|---|
| Version of sensing head | angled |
| Sensing head height[mm] [mm] | 3 |
| Sensing head width[mm] [mm] | 11 |
| Sensing head length[mm] [mm] | 15 |
| Probe dimensions[mm] [mm] | 3 x 11 x 15 |
| Total length[mm] [mm] | 2000 |
| Min. bending radius[mm] [mm] | 2 |
| Core diameter[mm] [mm] | 1 |
| Fibre material | PMMA |
| Fibre head material | stainless steel (303/1.4305) |
| Fibre sheath material | PE |
Accessories
| Items supplied | hexagon nuts: 2 x M2, stainless steel |
|---|---|
| Accessories (optional) | Cutter for fibre optics:, E20600 |
Remarks
| Pack quantity | 1 pcs. |
|---|
