IFM E21171
E21171
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns

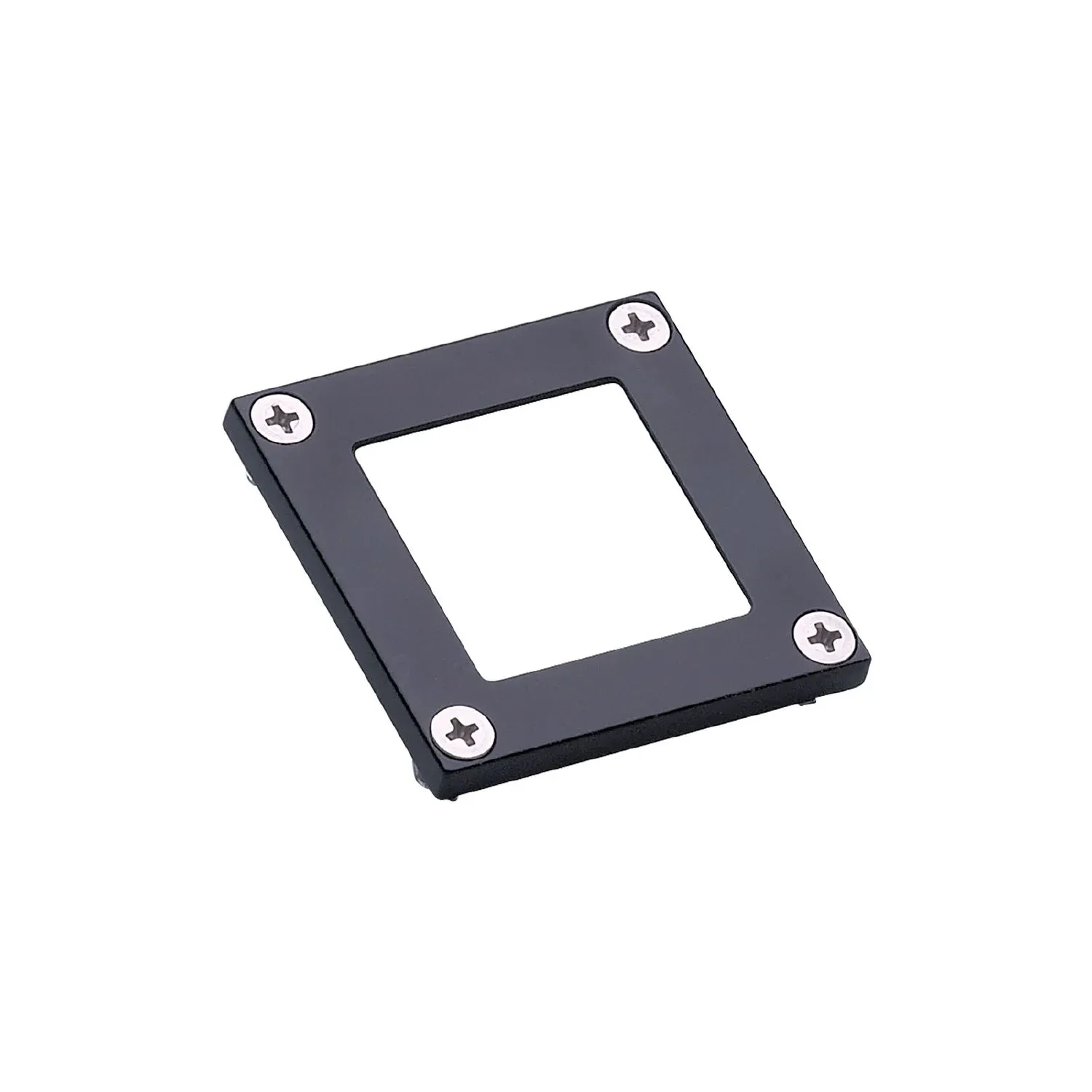

Description
For optical distance sensors type O1D
Efficient protection of the front pane against soiling and damage
Safe protection of the sensor against impact and shock
Easy, quick and inexpensive fixing
Robust design for use in harsh industrial environments
Specification
Mechanical data
| Weight[g] [g] | 39.5 |
|---|---|
| Dimensions[mm] [mm] | 42 x 4.6 x 42 |
| Materials | bezel: diecast zinc finish black; front pane: glass transparent and uncoloured; Sealing: FPM 75 ±5 Shore A; screws: stainless steel |
| Tightening torque[Nm] [Nm] | 0.6; (screws) |
Accessories
| Items supplied | screws: 4 x (M3 x 8 mm) |
|---|
Remarks
| Remarks | By attaching the protective cover the measured distance value can be changed by up to +5 mm. This deviation influences the specified accuracy. The repeatability remains unchanged. By soiling or scratching the front pane the repeatability and accuracy of the sensor can deteriorate. |
|---|---|
| Pack quantity | 1 pcs. |
