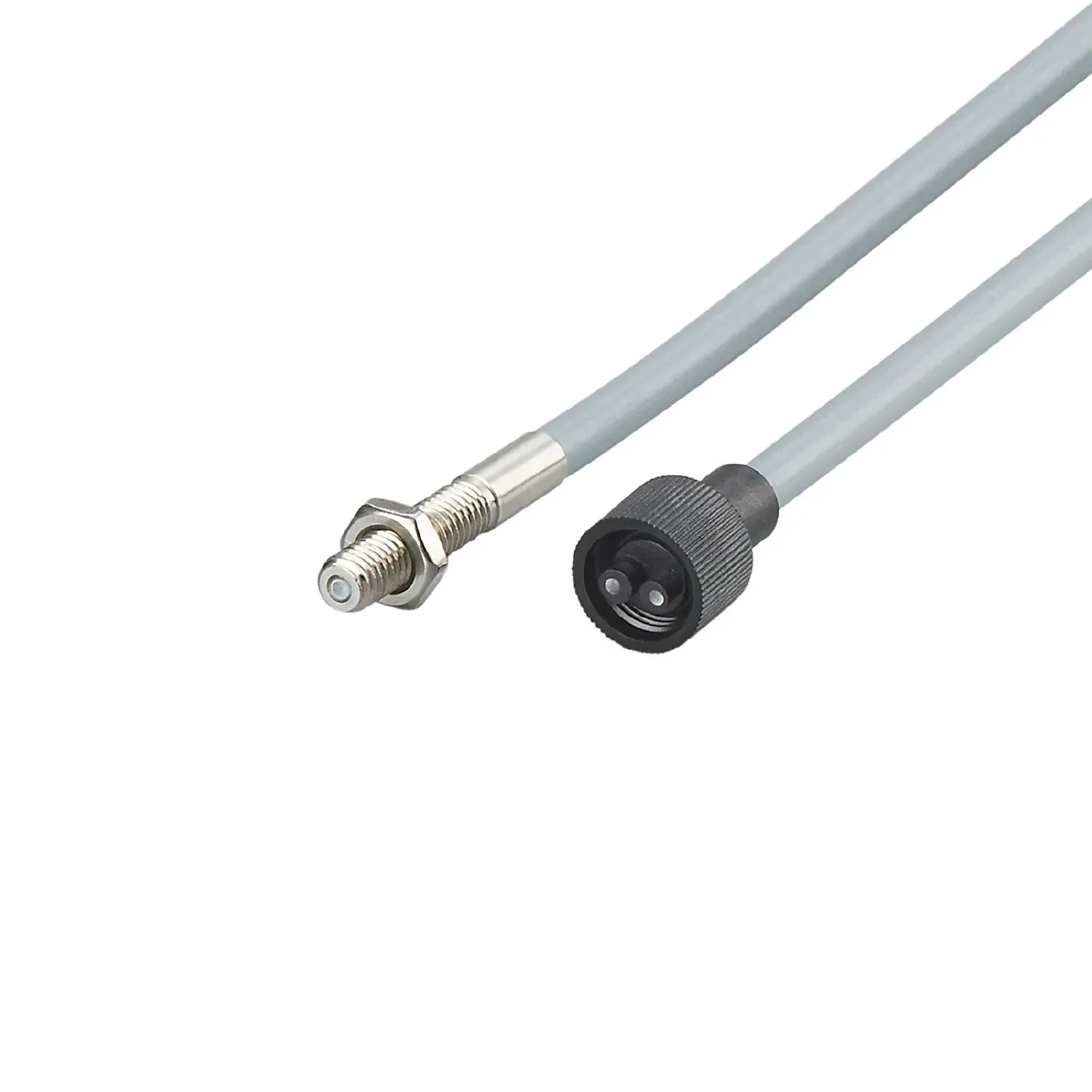

IFM E21152
E21152
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in places where access is difficult
Operation as diffuse reflection sensor
Long range
Resistant to various aggressive chemicals
Small bending radius
Specification
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | High temperature resistance; Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals |
Detection zone
| Range with fibre optic amplifier type | OKF |
|---|---|
| Range fibre optics[mm] [mm] | 30 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...150 |
|---|
Mechanical data
| Weight[g] [g] | 85.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M6 |
| Sensing head length[mm] [mm] | 35 |
| Total length[mm] [mm] | 1200 |
| Min. bending radius[mm] [mm] | 45 |
| Core diameter[mm] [mm] | 1.6 |
| Fibre diameter[mm] [mm] | 0.05 |
| External diameter[mm] [mm] | 5.4 |
| Fibre material | glass |
| Fibre head material | stainless steel (316Ti/1.4571) |
| Fibre sheath material | metal silicone |
Remarks
| Pack quantity | 1 pcs. |
|---|
