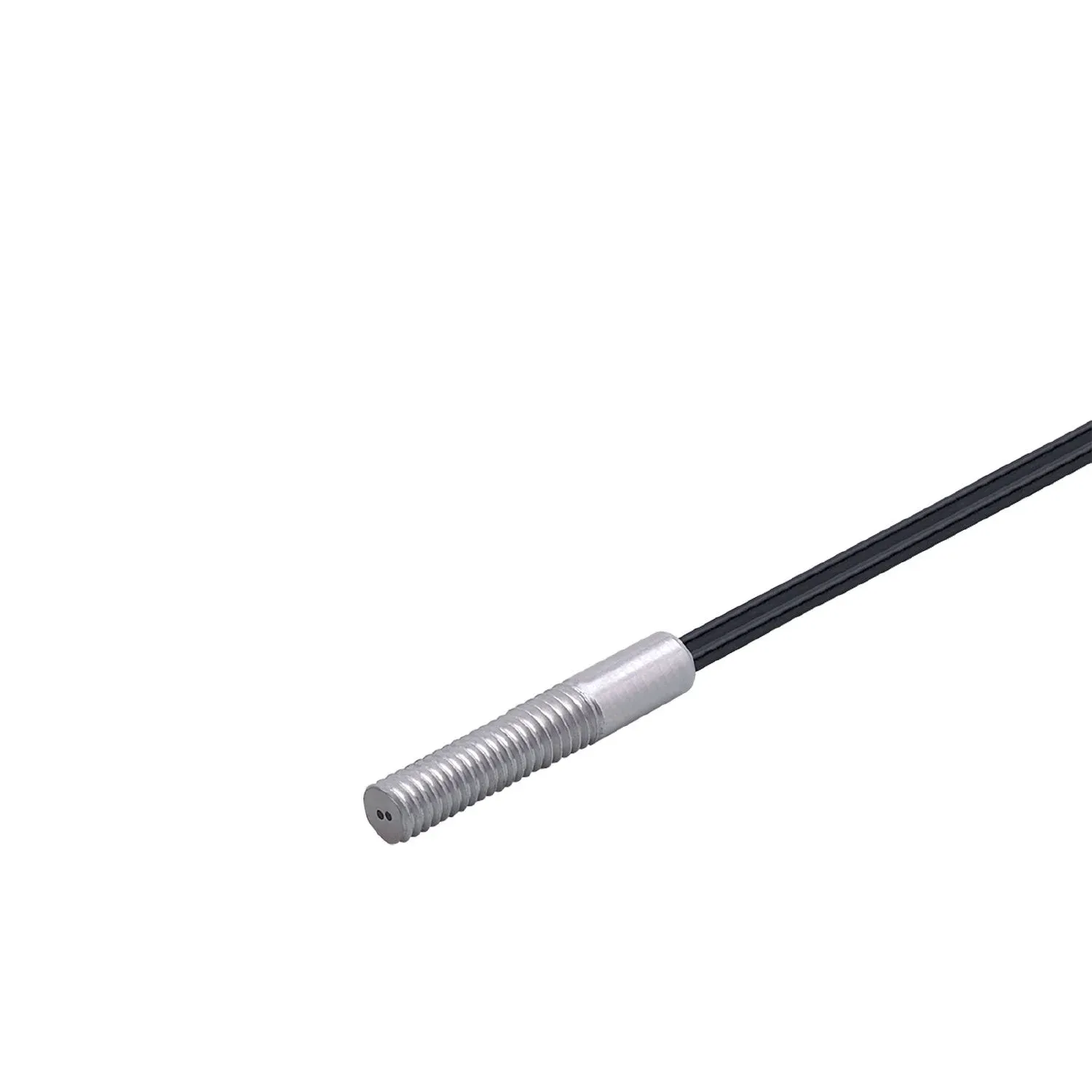

IFM E21106
E21106
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in places where access is difficult
Operation as diffuse reflection sensor
For use at short range
For cutting to size
High-flex version for extremely small bending radii
Specification
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | Small bending radius |
Detection zone
| Range with fibre optic amplifier type | OB50; OBF; OCF; OO50 |
|---|---|
| Range fibre optics[mm] [mm] | 30 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...60 |
|---|
Mechanical data
| Weight[g] [g] | 33.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M4 |
| Sensing head length[mm] [mm] | 23 |
| Total length[mm] [mm] | 2000 |
| Min. bending radius[mm] [mm] | 3 |
| Core diameter[mm] [mm] | 0.5 |
| Fibre diameter[mm] [mm] | 2x 217 x 0.06 |
| External diameter[mm] [mm] | 1 |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | PE |
Accessories
| Items supplied | hexagon nuts: 2 x M4 tooth lock washers: 2 knurled nut: 1 x M11 Adapter: 1 x OCF |
|---|---|
| Accessories (optional) | Cutter for fibre optics:, E20600 |
Remarks
| Pack quantity | 1 pcs. |
|---|
