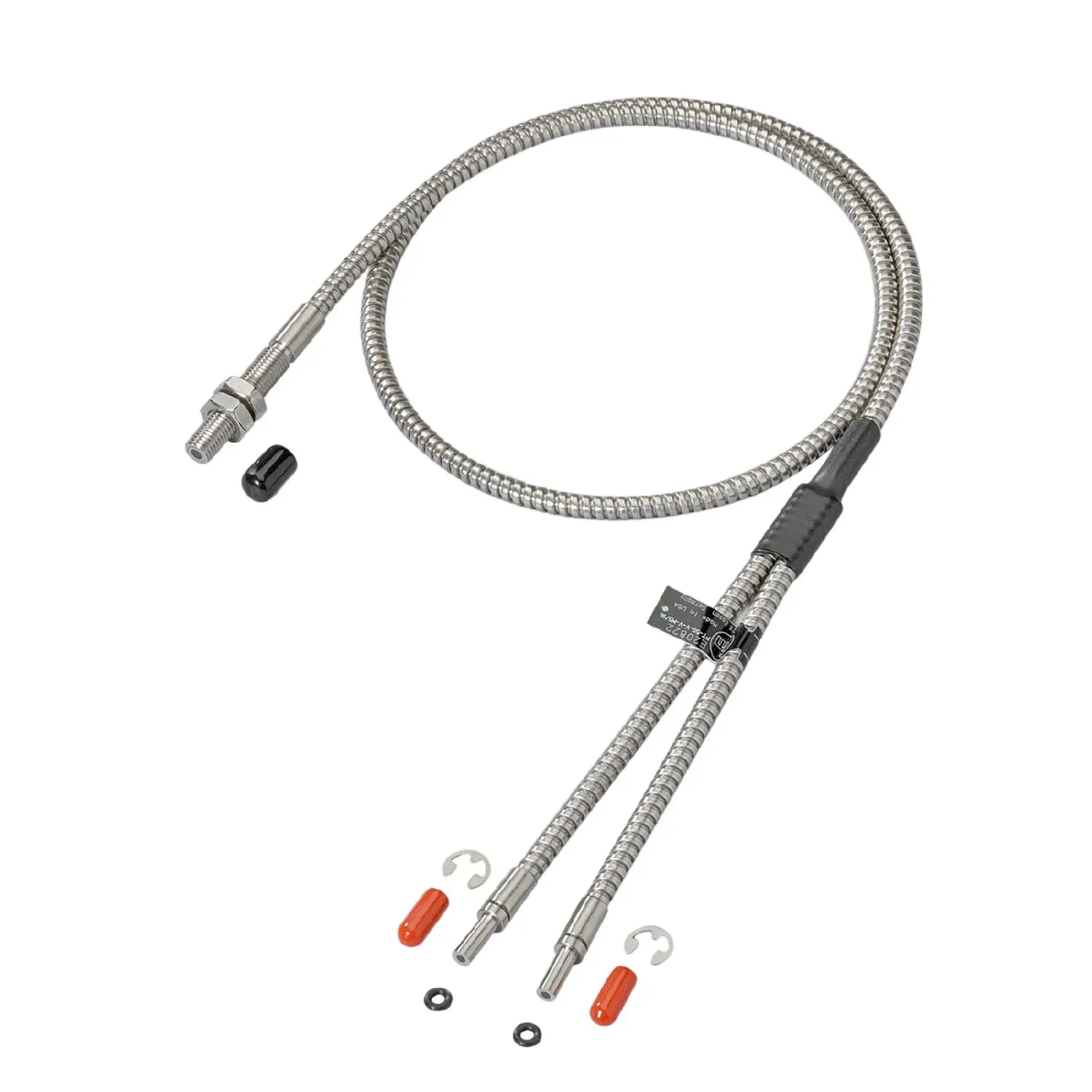

IFM E20822
E20822
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in high-temperature areas
Stainless steel sheathing for use up to 315 °C
Installation in places where access is difficult
Resistant to various aggressive chemicals
Small bending radius
Specification
Application
| Function principle | Diffuse reflection sensor |
|---|
Detection zone
| Range with fibre optic amplifier type | OBF; ODF; OMF |
|---|---|
| Range fibre optics[mm] [mm] | 175 |
Operating conditions
| Ambient temperature[°C] [°C] | -58...315 |
|---|
Mechanical data
| Weight[g] [g] | 126.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | 5/16 x 24 |
| Sensing head diameter[mm] [mm] | 8 |
| Sensing head length[mm] [mm] | 53 |
| Total length[mm] [mm] | 900 |
| Min. bending radius[mm] [mm] | 19 |
| Fibre material | glass |
| Fibre head material | stainless steel (303/1.4305) |
| Fibre sheath material | stainless steel (303/1.4305) |
Accessories
| Items supplied | hexagon nuts: 2 clamping rings: 2 O-rings: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
