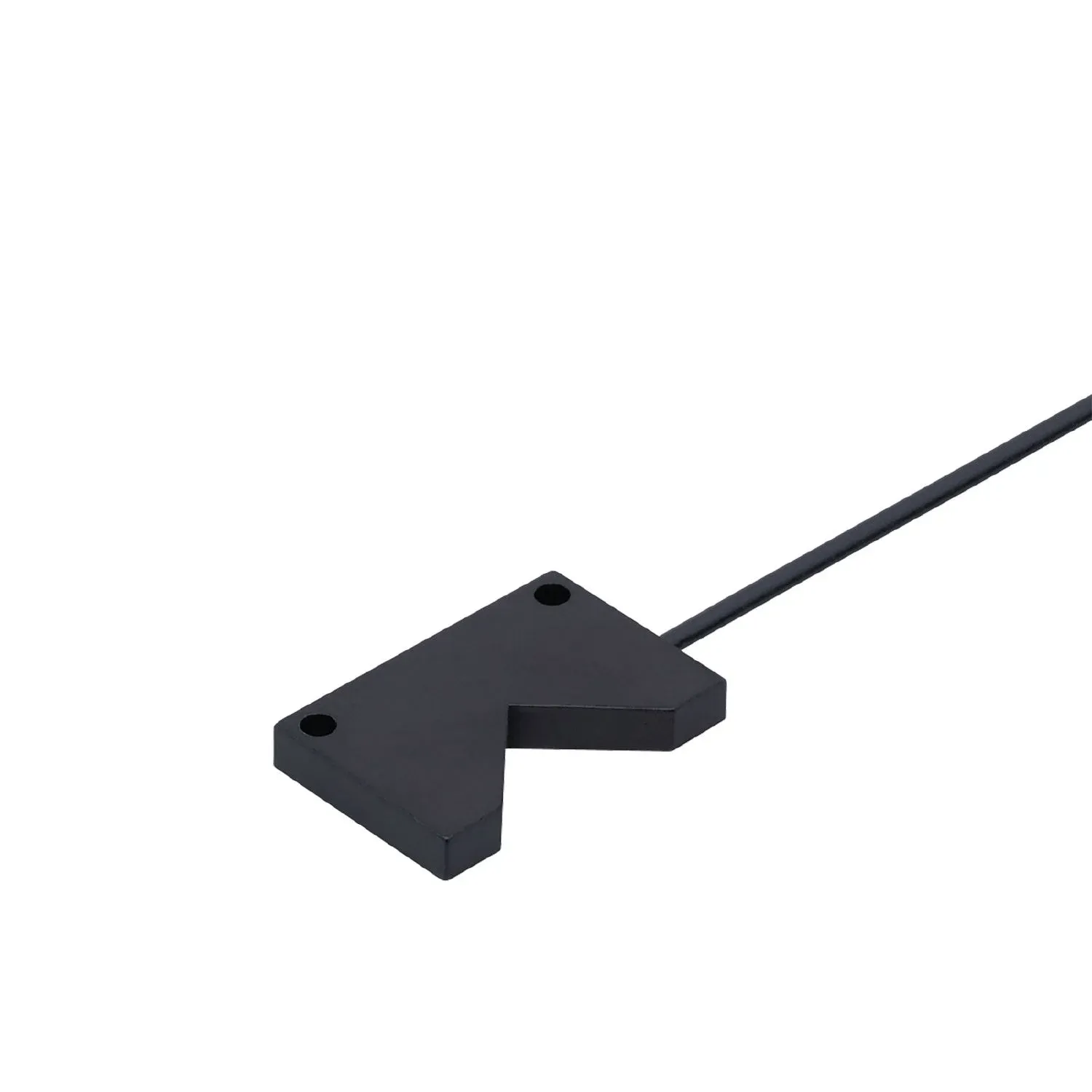

IFM E20756
E20756
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in places where access is difficult
Operation as diffuse reflection sensor
For use at short range
Reliable background suppression
Very small bending radius
Specification
Application
| Special feature | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
| Application | Small bending radius |
Detection zone
| Range with fibre optic amplifier type | OB50; OCF; OBF |
|---|---|
| Background suppression available | yes |
| Range fibre optics[mm] [mm] | 40 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...70 |
|---|
Mechanical data
| Weight[g] [g] | 54 |
|---|---|
| Sensing head height[mm] [mm] | 5 |
| Sensing head width[mm] [mm] | 35 |
| Sensing head length[mm] [mm] | 23 |
| Probe dimensions[mm] [mm] | 5 x 35 x 23 |
| Total length[mm] [mm] | 2000 |
| Min. bending radius[mm] [mm] | 10 |
| Core diameter[mm] [mm] | 2 x 1 |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | PE |
Accessories
| Accessories (optional) | Cutter for fibre optics:, E20600 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
